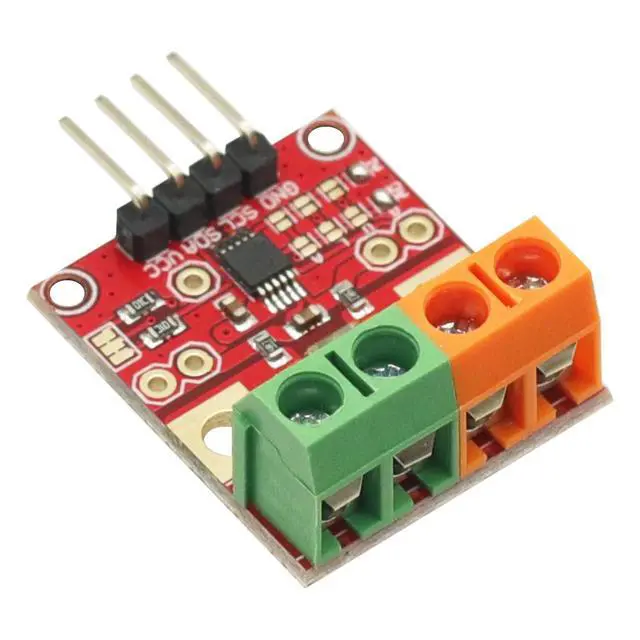

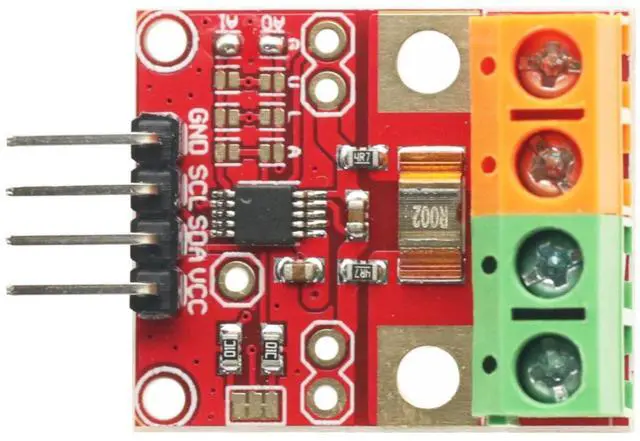

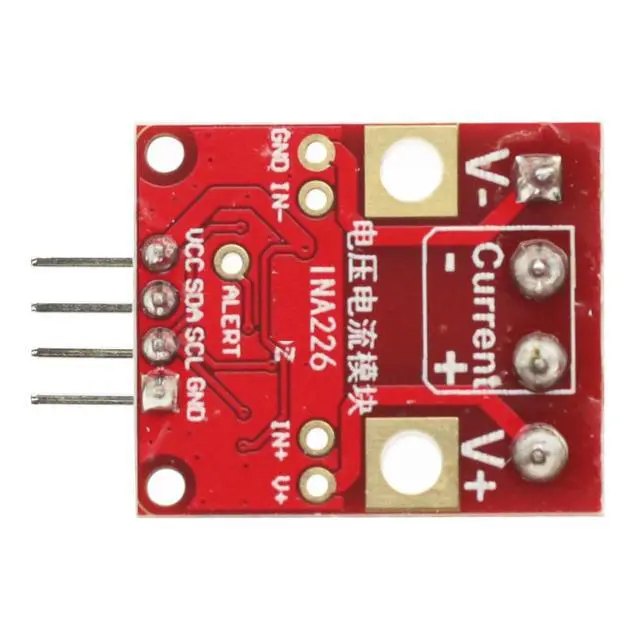

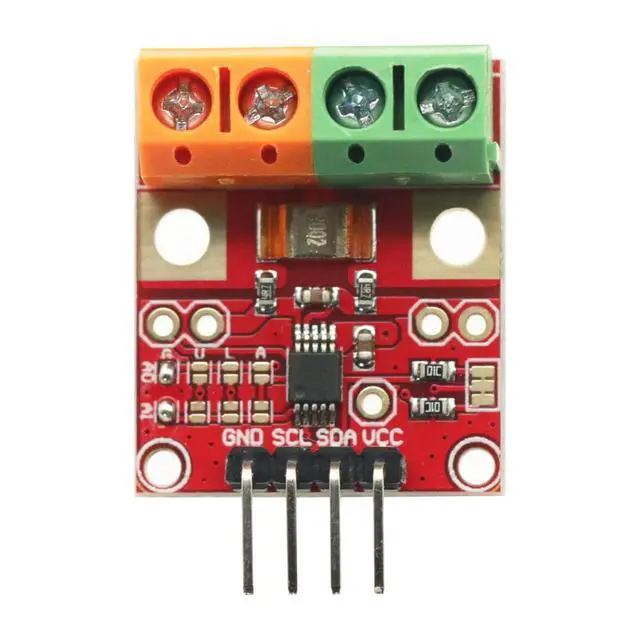

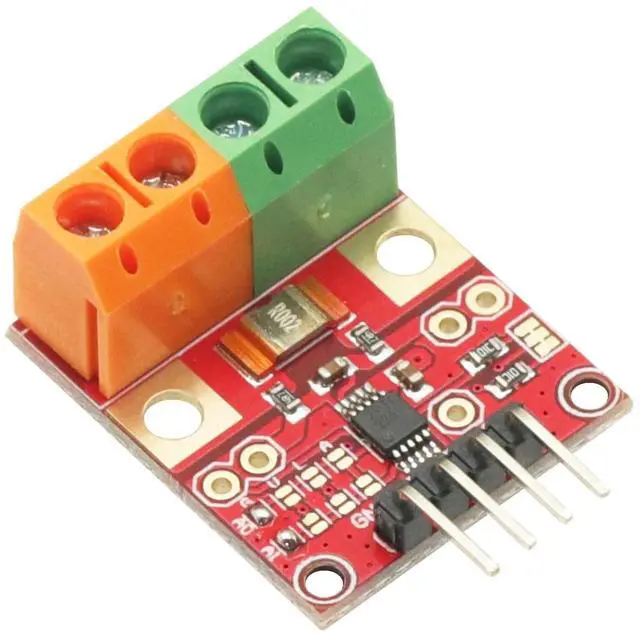

INA226 Voltage Current Monitor 0-36V 20A Tester I2C IIC Power Monitoring Sensor Module
- INA226 is a current shunt and power monitor with I2C or For SMBUS compatible interface.; The device simultaneously monitors the parallel voltage drop and the bus power supply voltage. The programmable calibration value, conversion time and average value are used in conjunction with the internal multiplier to directly read the current in amperes and the power in watts. The device has up to 16 programmable addresses on the I 2 C compatible interface.; INA226 Voltage Current Monitor; Work voltage: DC 2.7V~5.5V; Measured voltage:DC 0V~36V Measured current:-20A~20A
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Product description
IIC address: Set by pads INA226 is a current shunt and power monitor with I2C or SMBUS compatible interface. The device simultaneously monitors the parallel voltage drop and the bus power supply voltage. The programmable calibration value, conversion time and average value are used in conjunction with the internal multiplier to directly read the current in amperes and the power in watts. The device has up to 16 programmable addresses on the I 2 C compatible interface. 1>. IIC address can be set 2>. Measuring voltage 3>. Measuring current Address Pins and Slave Addresses 1>.
Product name: INA226 Voltage Current Monitor 2>.
Work voltage: DC 2.7V ~ 5.5V 3>.
Measured voltage: DC 0V~36V 4>.
Measured current: -20A~20A 5>.
Error accuracy: +/-1% 6>.
Resolution: 16Bit 7>.
IIC address: Set by pads 8>.
Work Temperature: -40~125 9>.
Work Humidity: 10%~90%RH 10>.
PCB Size: 26*22*14mm See More
IIC address: Set by pads INA226 is a current shunt and power monitor with I2C or SMBUS compatible interface. The device simultaneously monitors the parallel voltage drop and the bus power supply voltage. The programmable calibration value, conversion time and average value are used in conjunction with the internal multiplier to directly read the current in amperes and the power in watts. The device has up to 16 programmable addresses on the I 2 C compatible interface. 1>. IIC address can be set 2>. Measuring voltage 3>. Measuring current Address Pins and Slave Addresses 1>.
Product name: INA226 Voltage Current Monitor 2>.
Work voltage: DC 2.7V ~ 5.5V 3>.
Measured voltage: DC 0V~36V 4>.
Measured current: -20A~20A 5>.
Error accuracy: +/-1% 6>.
Resolution: 16Bit 7>.
IIC address: Set by pads 8>.
Work Temperature: -40~125 9>.
Work Humidity: 10%~90%RH 10>.
PCB Size: 26*22*14mm See More
