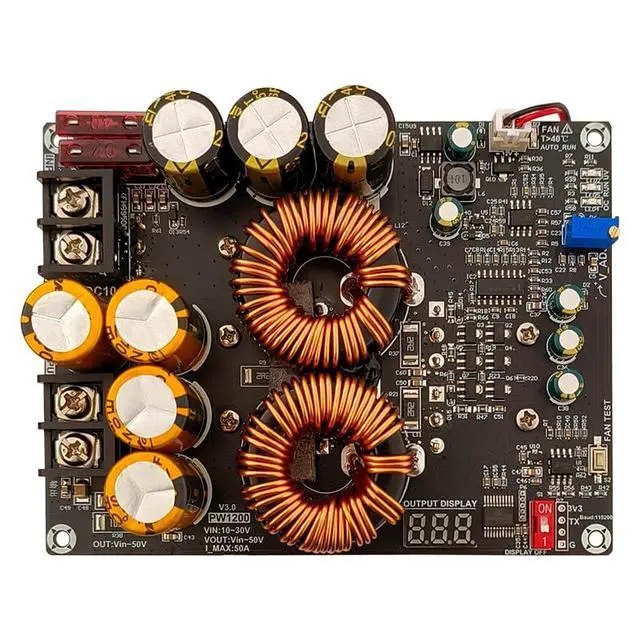

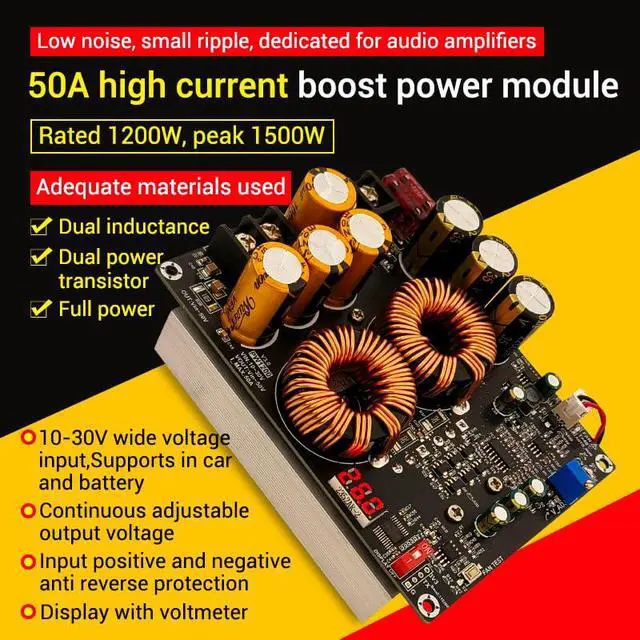

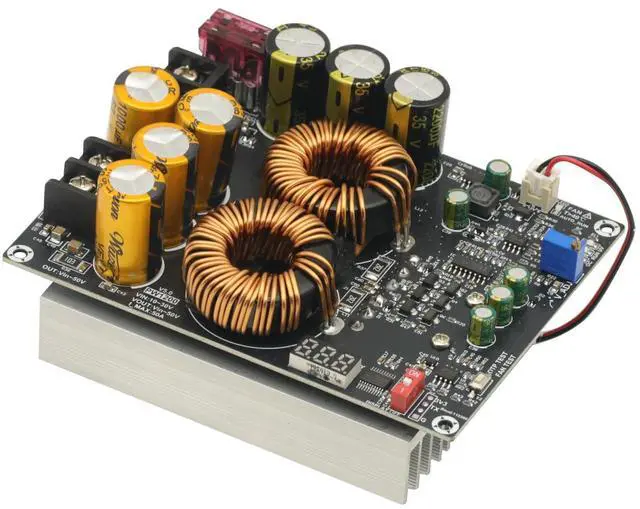

1200W 50A High Current Boost Power Module Dual Inductor Sufficient Power Audio Amplifier Dedicated Power Supply
- 1200W 50A High Current Boost Power Module Dual Inductor Sufficient Power Audio Amplifier Dedicated Power Supply; Product name50A high current boost module (non isolated type); Supply voltage10-30VDCUndervoltage protection below 9V, damage above 32V; Output voltageVin~50VContinuing adjust,Output power1200W, peak 1500W; Input currentMaximum 50A, limited current protection; Static working current: 70mA (Vin=20V, Vout=48V), the higher the output voltage, the greater the static curren
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now

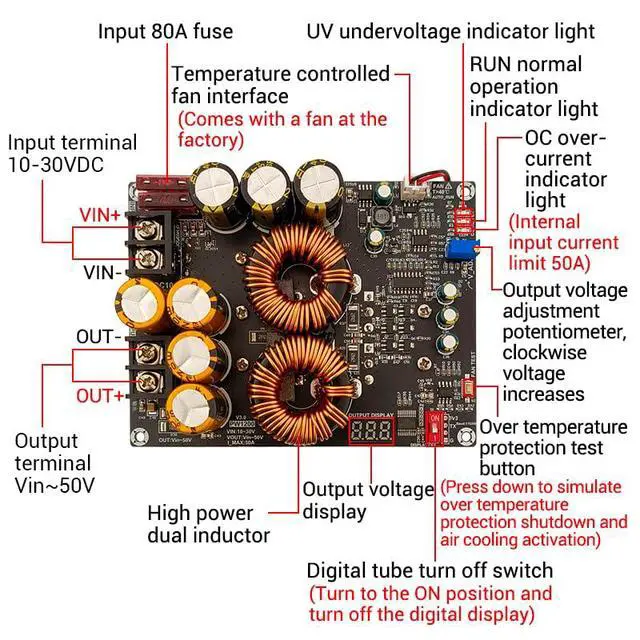

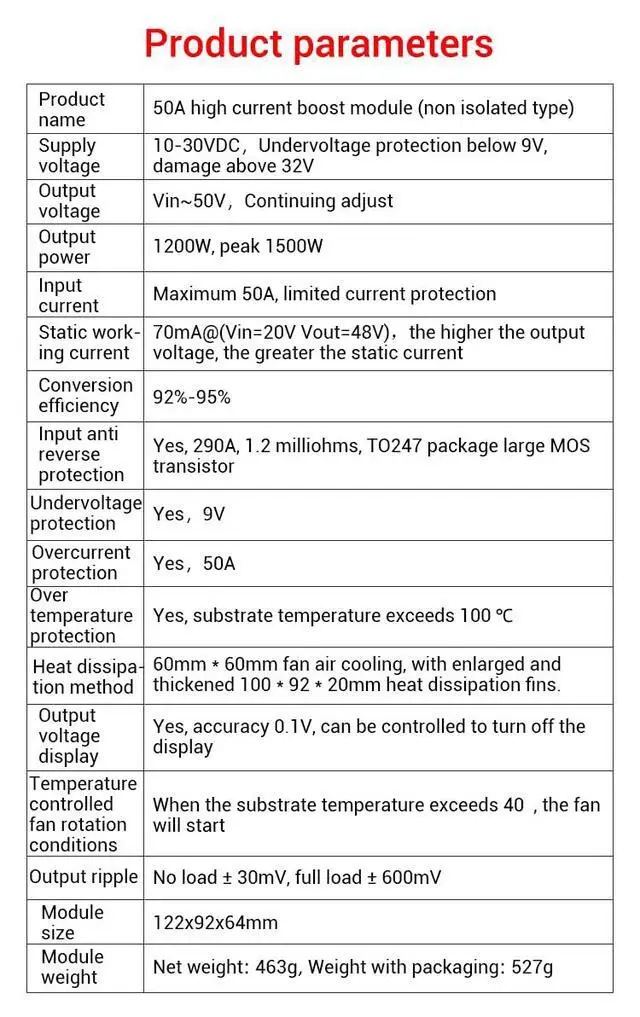

Product description 1200W 50A High Current Boost Power Module Dual Inductor Power Audio Amplifier Dedicated Power Supply Product parameters Product name 50A high current boost module (non isolated type) Supply voltage 10-30VDCUndervoltage protection below 9V, damage above 32V Output voltage Vin~50VContinuing adjust Output power 1200W, peak 1500W Input current Maximum 50A, limited current protection Static working current 70mA @ (Vin=20V, Vout=48V), the higher the output voltage, the greater the static current Conversion efficiency 92%-95%

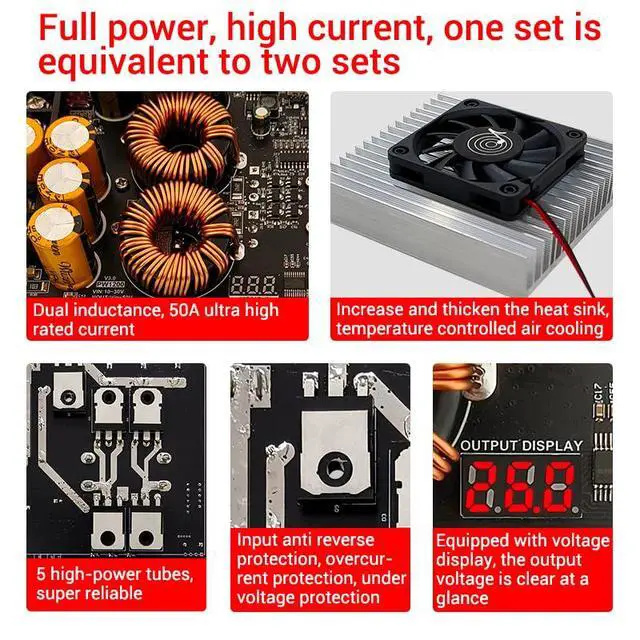

Input anti reverse protection: Yes, 290A, 1.2 milliohms, TO247 package large MOS transistor Undervoltage protection Yes, 9V Overcurrent protection Yes, 50A Over temperature protection Yes, substrate temperature exceeds 100 Heat dissipation method 60mm * 60mm fan air cooling, with enlarged and thickened 100 * 92 * 20mm heat dissipation fins Output voltage display Yes, accuracy 0.1V, can be controlled to turn off the display

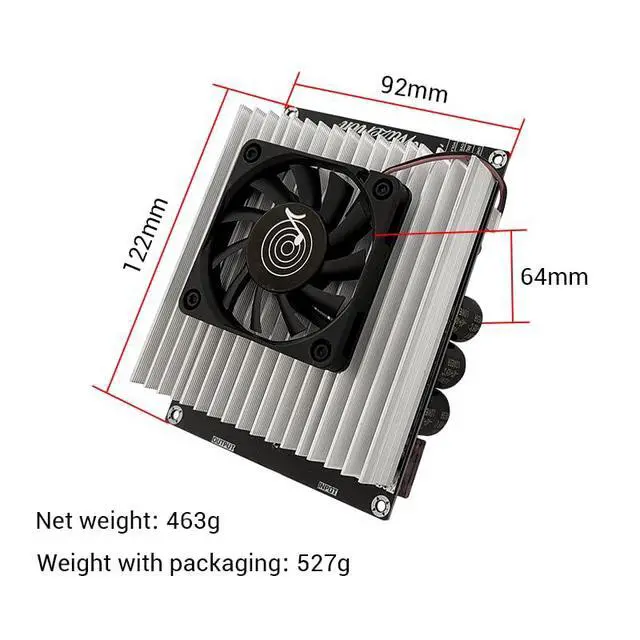

Temperature controlled fan: When the substrate temperature exceeds 40, the fan will start Output ripple No load ± 30mV, full load ± 600mV Module size 122x92x64mm.
weightNet weight: 463g;
Weight with packaging: 527g See More
Input anti reverse protection: Yes, 290A, 1.2 milliohms, TO247 package large MOS transistor Undervoltage protection Yes, 9V Overcurrent protection Yes, 50A Over temperature protection Yes, substrate temperature exceeds 100 Heat dissipation method 60mm * 60mm fan air cooling, with enlarged and thickened 100 * 92 * 20mm heat dissipation fins Output voltage display Yes, accuracy 0.1V, can be controlled to turn off the display
Temperature controlled fan: When the substrate temperature exceeds 40, the fan will start Output ripple No load ± 30mV, full load ± 600mV Module size 122x92x64mm.
weightNet weight: 463g;
Weight with packaging: 527g See More
