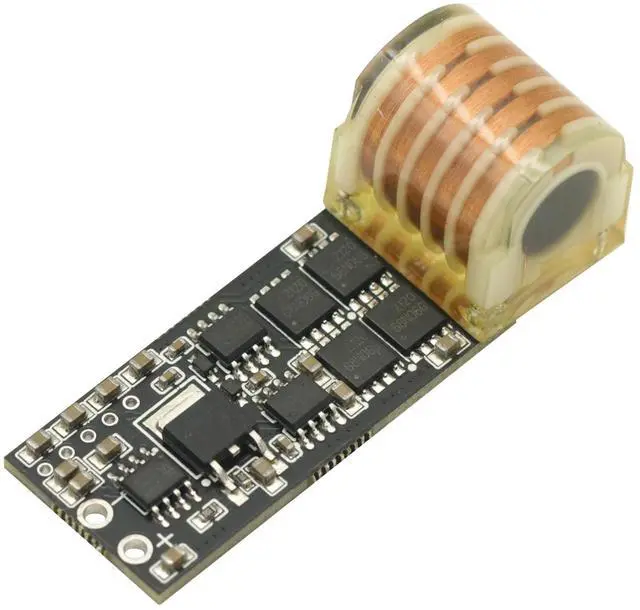

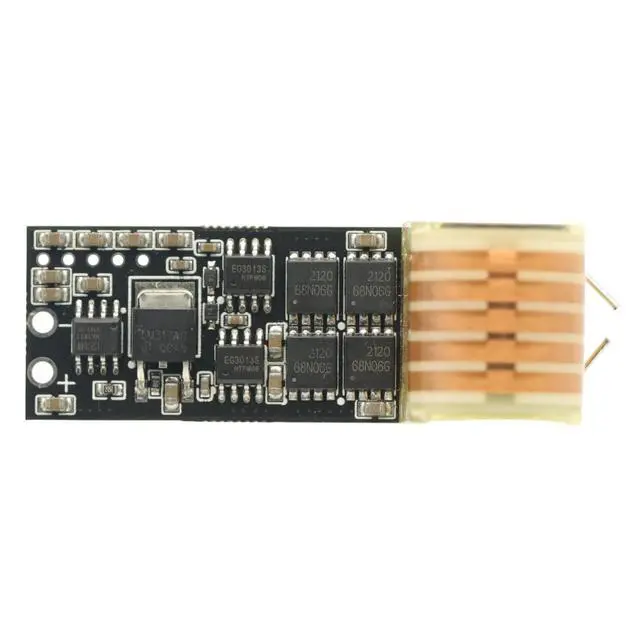

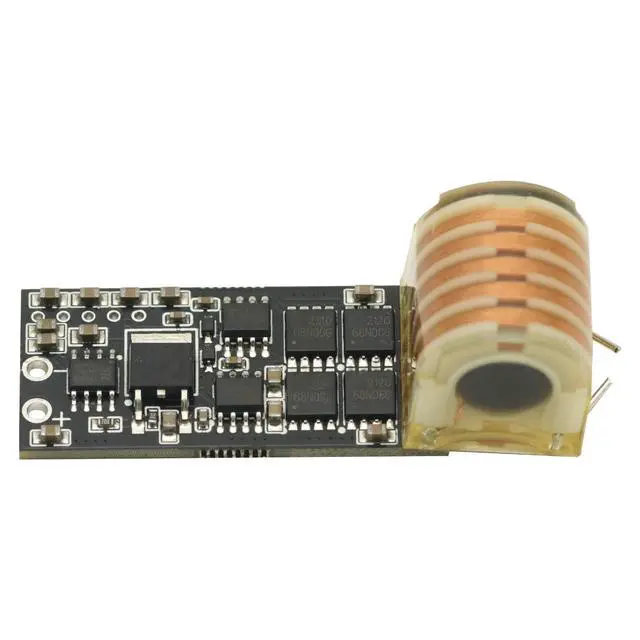

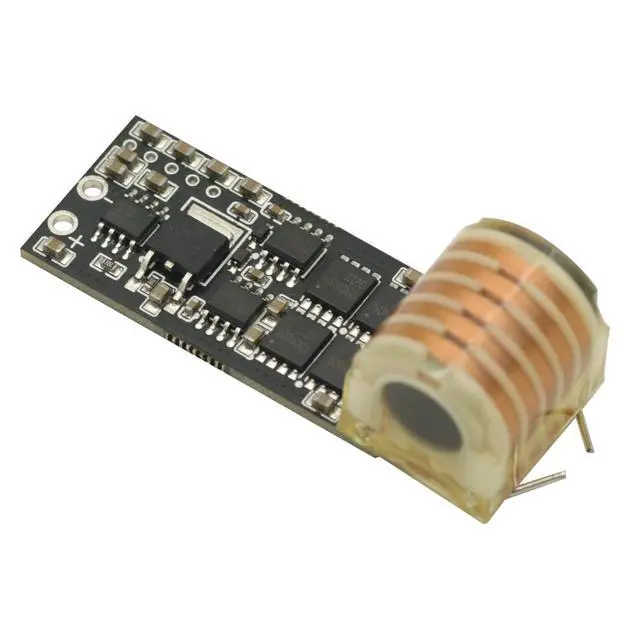

DC 7V-15V 12V to 15KV-20KV High Frequency AC High Voltage Generator Inverter Boost Spark Arc Ignition Coil Module Board

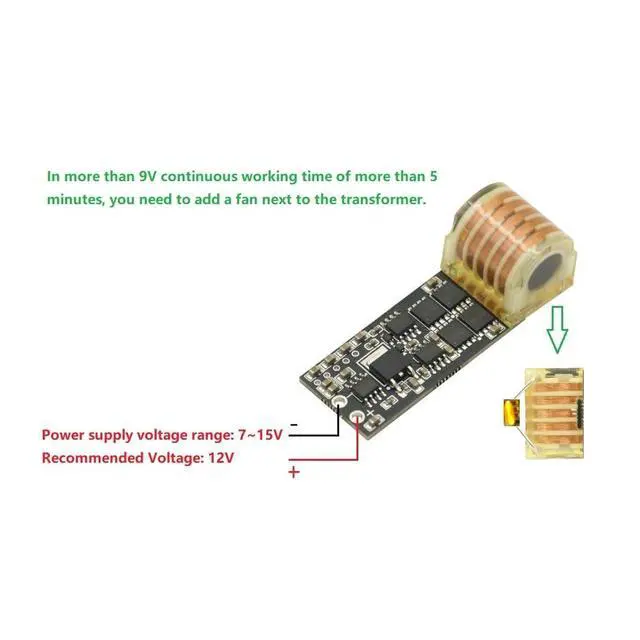

Product description DC 7V-15V 12V to 15KV-20KV High Frequency AC High Voltage Generator Inverter Boost Spark Arc Ignition Coil Module Board Features: 1. This driver board adopts H-bridge 4-tube MOS frequency resonant topology technology, high driving efficiency and high power; 2. arc distance 1cm ~ 2cm, can directly start the arc, no need to pull the arc; 3. orange flame arc temperature of about 1200 degrees can melt copper wire, a wide range of applications; 4. high arc temperature, can directly melt fine copper wire, iron wire, sparks, can also directly ignite a variety of gas, alcohol, gasoline, diesel, plastic, paper, etc. In more than 9V continuous working time of more than 5 minutes, you need to add a fan next to the transformer. In more than 9V continuous working time of more than 5 minutes, you need to add a fan next to the transformer. Power supply voltage range 7~15V Recommended Voltage 12V Full load power 50W Input current <2A Output voltage 15KV~20KV Output current 5mA~15mA Circuit board size 2* 4.3 cm Overall size 2*6cm Overall height 2.5 cm Instructions for use Arc distance 1cm~2cm (direct arc, no need to pull the arc, if the arc has been started but the arc is not obvious can not be ignited, the electrode distance can be closer) The frequency of
AC output is: 30-200 kHz See More
