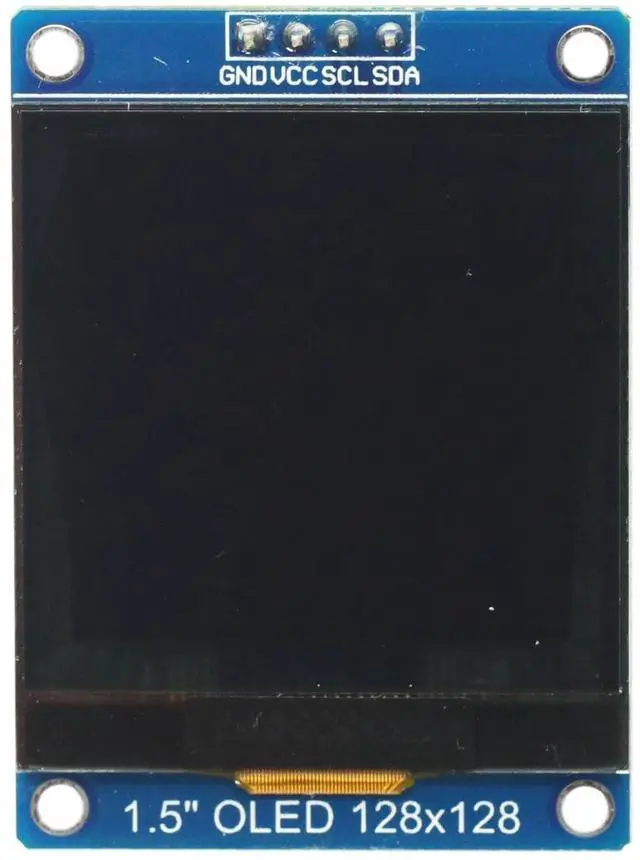

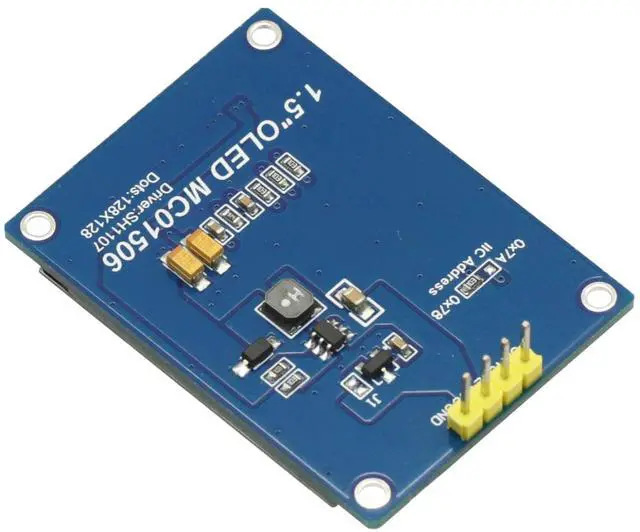

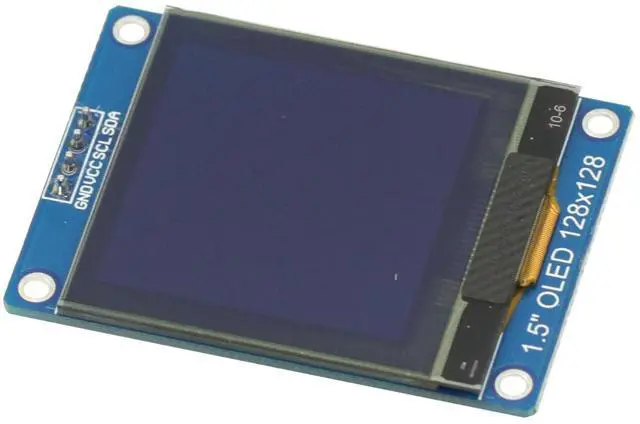

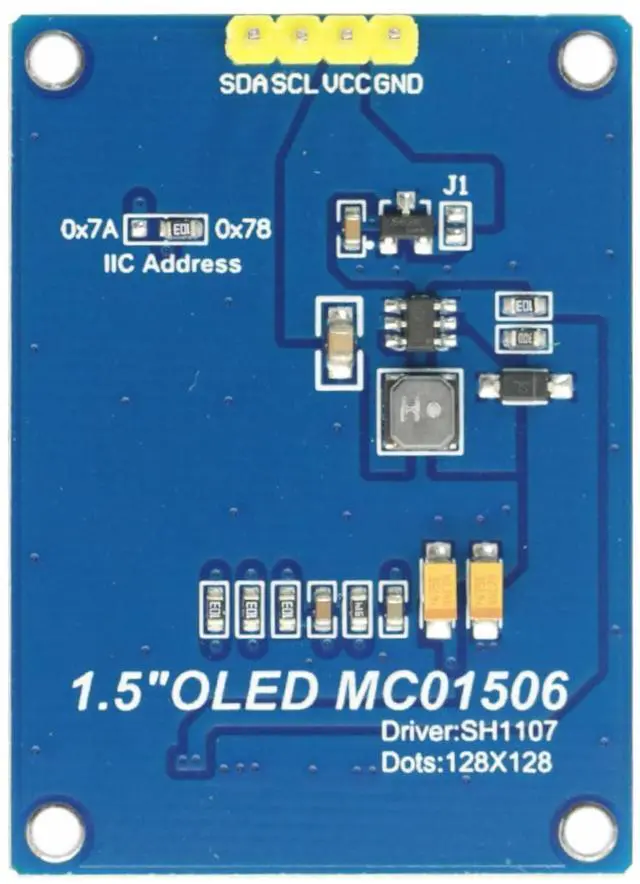

1.5 inch 4PIN OLED Module Display Screen SH1107 Drive IC 128 * 128 IIC I2C Interface for 51 STM32 P22101 P22102
- 1.5 inch 4PIN OLED module Display Screen 128*128 for 51 STM32 P22101 P22102; SH1107 Drive IC; IIC I2C Interface; Large viewing angle: more than 160 ° (the largest viewing angle in the display of a screen); Wide voltage supply (3V~5V), compatible with 3.3V and 5V level logic, no need for level conversion chip.; IIC interface only 2 IO easy to light up; Industrial grade operating temperature range (-20~70)
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Product description
GND: OLED power ground
VCC: OLED power positive ( 3.3V ~5V)
SCL: OLED IIC bus clock signal
SDA: OLED IIC bus data signal Size 1.5 (inch) Type OLED OLED Driver Chip SH1107 Resolution 128*128 (Pixel) Module Interface IIC GND, VCC, SCL, SDA Effective display area 26.86 x 26.86 (mm) Module size 45.50 x 34.30 (mm) Viewing Angle >160° Operating Temperature -20~70 Storage Temperature -30~80 Operating Voltage 3.3V / 5V Power Consumption Fully illuminated is about 25mA, fully extinguished is about 1.5 mA.
GND: OLED power ground
VCC: OLED power positive ( 3.3V ~5V)
SCL: OLED IIC bus clock signal
SDA: OLED IIC bus data signal Size 1.5 (inch) Type OLED OLED Driver Chip SH1107 Resolution 128*128 (Pixel) Module Interface IIC GND, VCC, SCL, SDA Effective display area 26.86 x 26.86 (mm) Module size 45.50 x 34.30 (mm) Viewing Angle >160° Operating Temperature -20~70 Storage Temperature -30~80 Operating Voltage 3.3V / 5V Power Consumption Fully illuminated is about 25mA, fully extinguished is about 1.5 mA.
