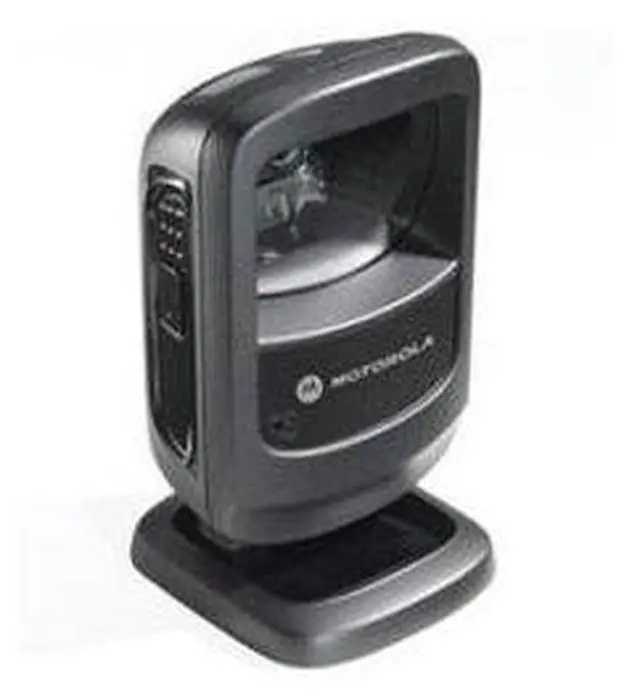

Motorola DS9208-SR4NNU21Z Desktop Barcode Reader

Motorola DS9208-SR4NNU21Z


The Motorola DS9208-SR4NNU21Z is a desktop barcode scanner having omni directional scan pattern. It has a patented single circuit board construction for maximum durability and industry-leading working range of 13 mil 100% UPC bar codes from 0 in. to over 10.5 in. This scanner support all major 1D, PDF, postal, 2D symbologies which eliminates need of multiple devices.

This handheld barcode scanner uses imager image sensor that deliver excellent scanning performance with superior scanning speed and a wide data capture range. It provides superior motion and angular tolerance so that codes can be captured faster, and there is no need to pause during scans. The unit has a durable construction and can withstand multiple 5 ft/1.5 m drops to concrete.

DS9208-SR4NNU21Z Features:

• Desktop Barcode Reader
• 1D, 2D, PDF417 & Postal
• Imager Image Sensor
• Omni Directional Scan Pattern
• Integrated EAS Support
• Remote Scanner Management
• Supports 123Scan2 Scanner Configuration Tool
• 13 mil (100% UPC) 0-10.5 in. Depth of Field
• Light Source
  - Aiming Pattern: 625 LED
  - Illumination: 630 nm LED
• Corded Operation
  - USB
  - RS232
  - Keyboard Wedge
  - IBM RS468x/469x
  - Wand Emulation
• Handheld & Handsfree modes
  - Dual Mode Functionality
  - Saves Time
• Picklist Mode
• Driver's License Parsing
• Multi Code Mode
• Spherical Exit Window
• Dual LEDs
  - w/ Programmable Beeper Volume
  - Frequency
  - Duration
• Small, Sleek & Lightweight Ergonomic Design
• Supports All Common Interfaces
• Integrated EAS Support
• Integrated Adjustable Stand
• Compatible with 123Scan2
• Remote Scanner Management
• 65° Pitch & 60° Yaw
• Compliant w/ roHS Directive 2002/95/EC
• Regulatory Compliance
  - UL6950-1
  - CSA C22.2 No. 60950-1
  - EN60950-1/IEC60950- 1
  - EN60825-1:1994 +A1: 2002 +A2 :2001
  - IEC60825-1
  - EN 62471: 2008
  - IEC 62471: 2006
  - CDRH Class II
  - IEC Class 2
  - EN 55024: 1998 +a1: 2001 + a2: 2003
  - ICES-003 Class B
  - ICES-003 Issue 4 :2004 Class B
  - EN 55022: 2006 + a1: 20074
