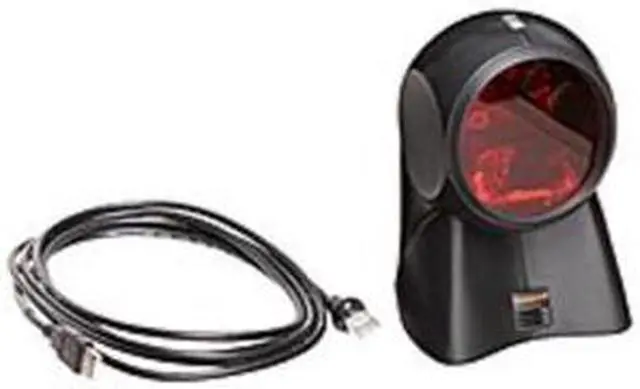

Orbit 7120 Series Omnidirectional Laser Scanners

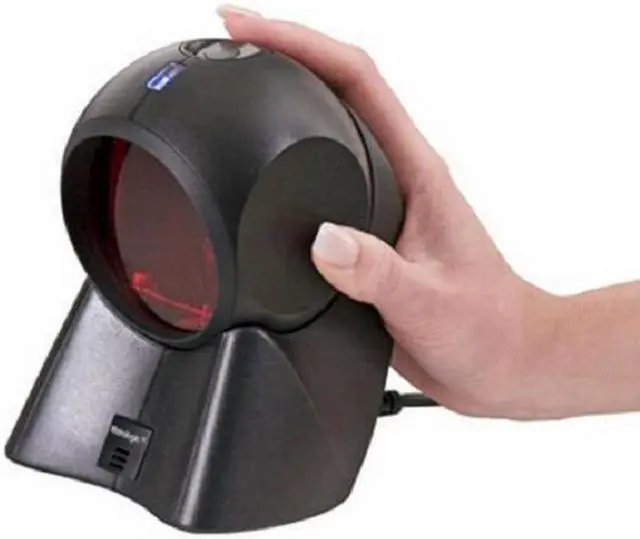

Meet ORBIT 7120! ORBIT 7120 is small in size, but BIG in performance. ORBIT 7120 is Honeywell's first Point-of Sale barcode scanner to utilize holographic technology to precisely focus the scanner's laser and therefore increase performance and efficiency. ORBIT 7120 is perfect for retail applications where counter space is at a premium and its unique contoured design allows it to be picked up to scan large, bulky items.
Main Features Barcode Scanner 1120 Line/Sec Decoded
USB Bar Width: 5.2 mil SCANNER +
USB CABLE Barcode Barcodes: GS1 DataBar, GS1 DataBar Expanded, GS1
DataBar Limited Features: CodeGate, Reduced Space Symbology (RSS)
Interface: USB
Light Source Wave Length: 650 nm
Max Scan Field: 9.84 in
Minimum Bar Width: 5 mil
Pitch (Degrees): 60
Print Contrast Signal (PCS): 35%
Skew (Degrees): 60 Cable
Connectivity Details Length: 9 ft
Connectivity Details Type: USB cable Environmental Parameters
Humidity Range Operating: 5 - 95% (non-condensing)
Max Operating Temperature: 104 °F
Min Operating Temperature: 32 °F
Header Brand: Honeywell
Compatibility: PC
Manufacturer: Metrologic
Model: MS7120
Orbit Packaged Quantity: 1
Product Line: Honeywell
Input Device Connectivity Technology: Wired
Interface Type: USB
OK Notification: Beeper, LED indicator
TTL Decoding: Decoded
Interface Required Total Qty: 1
Type: USB
Miscellaneous Color: Black
Color Category: Black
Compliant Standards: CISPR 22, CISPR 24, cULus, EN 60825-1, EN 60950-1 Second Edition, EN55022, EN55024, FCC Part 15 A, ICES-003 Class B, IEC 60825-1, IEC 60950-1 Second Edition, JavaPOS, OPOS, RoHS, WEEE
Included Accessories: Mounting kit Scanner
Form Factor: Desktop Scan
Element Type: Visible laser diode
Scan Speed: 1120 line / sec
Type: Barcode scanner Service Support Details Full Contract Period: 3 years
Support Details Type: Limited warranty
Software Type: MetroSet2 Dimensions &
Weight Depth: 4.1 in
Height: 5.9 in
Weight: 14.11 oz
Width: 4 in Cable
Details Form Factor: External
Included Qty: 1
Service & Support Type: 3 years warranty Shock & Vibration
Tolerance Drop Specification: 4 ft to concrete
