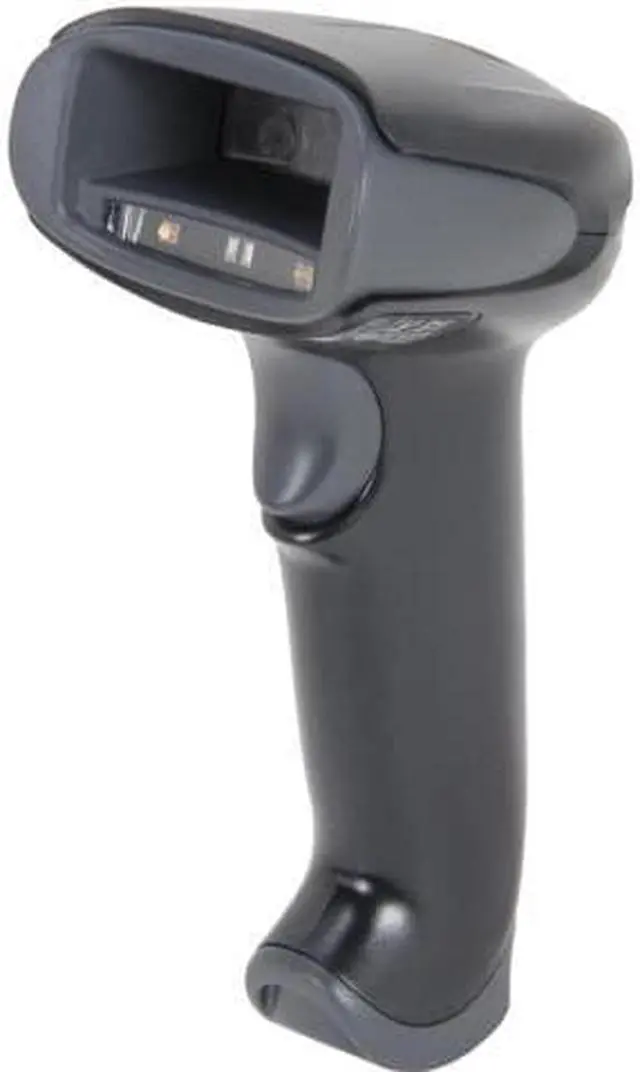

Honeywell Xenon 1900g Wired General Duty Barcode Scanner, 1D, PDF417, 2D, HD Focus, RS232/USB/KBW/IBM, Black, USB Kit - 1900GHD-2USB with usb cable
- Powered by Adaptus Imaging Technology 6.0, Xenon scanners deliver superior barcode scanning & digital image capture
- Decodes virtually all standard 1D, PDF, & 2D symbologies w/ ease even scanned directly off a mobile device’s screen
- Integrated image processing software offers advanced editing functionality: cropping, brightening, rotating, sharpening & more to produce high-quality digital images
- The TotalFreedom area-imaging development platform enables the loading & linking of multiple applications to enhance image processing, decoding & data formatting functionality, eliminating the need for host system modifications
- A new space-saving design that mounts critical components on a single board eliminates the need for connectors & improves reliability
- Designed to withstand 50 1.8 m (6 ft) drops to concrete; IP41 rating
- HD Focus: Horizontal 41.4°; Vertical: 32.2°

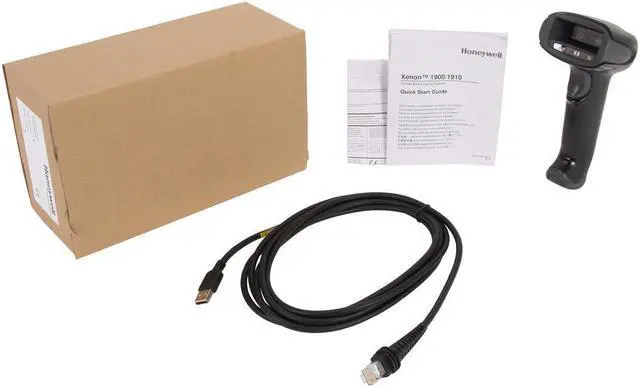

- Includes black scanner (1900gHD-2), USB Type A 3m straight cable
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Brand
Honeywell
Series
Xenon
Model
Xenon 1900
Part Number
1900GHD-2USB
Form Factor
Handheld
Connectivity
Corded
Scan Engine
2D Area Imager
Connectivity
Included Cables
USB Cable Included
Interfaces Supported
USB, RS-232, Keyboard Wedge, IBM
Scan Performance
Imager Field of View
HD Focus: Horizontal 41.4°; Vertical: 32.2°
SR Focus: Horizontal: 42.4°; Vertical: 33°
ER Focus: Horizontal: 31.6°; Vertical: 24.4°
Pitch
±45 degree
Yaw
±65 degree
Decoding Capability
Reads standard 1D, PDF, 2D, Postal and OCR symbologies
Electrical
Input Voltage
4 VDC to 5.5 VDC
Power Consumption
Operating Power: 2.3 W (450mA @ 5 VDC)
Standby Power: 0.45 W (90mA @ 5 VDC)
Mechanical
Color
Black
Dimensions
6.30" x 2.80" x 4.10"
Weight
0.32 lb.
Features
Features
Environmental:
Operating Temperature: 0°C to 50°C (32°F to 122°F)
Storage Temperature: -40°C to 70°C (-40°F to 158°F)
Humidity: 0% to 95% relative humidity, non-condensing
Environmental Sealing: IP41
Light Levels: 0 to 100,000 lux (9,290 foot-candles)
Ratchet Cycles:
The ratchet stand shall support 10,000 cycles (each cycle is one full movement of the scanner either up or down) without losing its ability to keep the scanner in any ratchet position.
Scan Performance:
Scan Pattern: Area Image (838 x 640 pixel array)
Motion Tolerance: Up to 610 cm/s (240 in/s) for 13 mil UPC at optimal focus
Symbol Contrast: 20% minimum reflectance difference
Drop
Designed to withstand 50 1.8 m (6') drops to concrete
Ratchet stand: Designed to withstand 50 1.2 m (4') drops to concrete on each of the faces
Plug Standards
Electrical Outlet Plug Type
Consumer Electronics
Honeywell
Series
Xenon
Model
Xenon 1900
Part Number
1900GHD-2USB
Form Factor
Handheld
Connectivity
Corded
Scan Engine
2D Area Imager
Connectivity
Included Cables
USB Cable Included
Interfaces Supported
USB, RS-232, Keyboard Wedge, IBM
Scan Performance
Imager Field of View
HD Focus: Horizontal 41.4°; Vertical: 32.2°
SR Focus: Horizontal: 42.4°; Vertical: 33°
ER Focus: Horizontal: 31.6°; Vertical: 24.4°
Pitch
±45 degree
Yaw
±65 degree
Decoding Capability
Reads standard 1D, PDF, 2D, Postal and OCR symbologies
Electrical
Input Voltage
4 VDC to 5.5 VDC
Power Consumption
Operating Power: 2.3 W (450mA @ 5 VDC)
Standby Power: 0.45 W (90mA @ 5 VDC)
Mechanical
Color
Black
Dimensions
6.30" x 2.80" x 4.10"
Weight
0.32 lb.
Features
Features
Environmental:
Operating Temperature: 0°C to 50°C (32°F to 122°F)
Storage Temperature: -40°C to 70°C (-40°F to 158°F)
Humidity: 0% to 95% relative humidity, non-condensing
Environmental Sealing: IP41
Light Levels: 0 to 100,000 lux (9,290 foot-candles)
Ratchet Cycles:
The ratchet stand shall support 10,000 cycles (each cycle is one full movement of the scanner either up or down) without losing its ability to keep the scanner in any ratchet position.
Scan Performance:
Scan Pattern: Area Image (838 x 640 pixel array)
Motion Tolerance: Up to 610 cm/s (240 in/s) for 13 mil UPC at optimal focus
Symbol Contrast: 20% minimum reflectance difference
Drop
Designed to withstand 50 1.8 m (6') drops to concrete
Ratchet stand: Designed to withstand 50 1.2 m (4') drops to concrete on each of the faces
Plug Standards
Electrical Outlet Plug Type
Consumer Electronics
