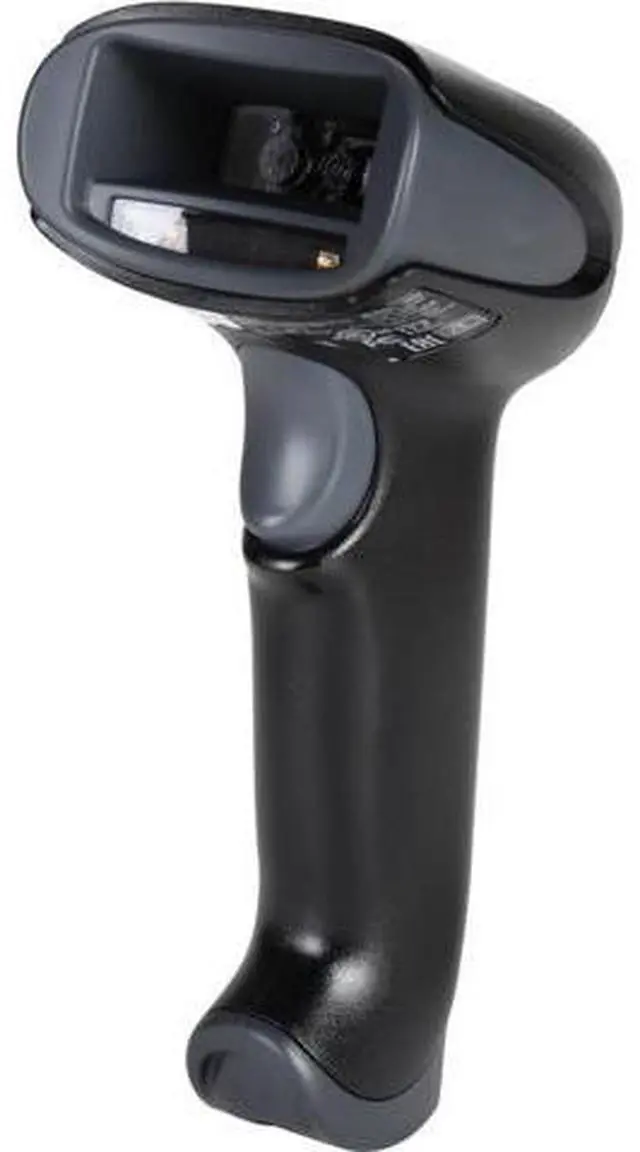

Honeywell Xenon 1900g Wired General Duty Barcode Scanner, 1D, PDF417, 2D, SR Focus, RS232/USB/KBW/IBM, 1900GSR-2

Xenon 1900 Technical Specifications
Mechanical
Dimensions (LxWxH) 104 mm x 71 mm x 160 mm (4.1? x 2.8? x 6.3?)
Weight 147 g (5.2 oz)
Electrical
Input Voltage 4 VDC to 5.5 VDC
Operating Power 2.3 W (450mA @ 5 VDC)
Standby Power 0.45 W (90mA @ 5 VDC)
Host System Interfaces USB, Keyboard Wedge, RS232, IBM 46xx (RS485)
Environmental
Operating Temperature 0°C to 50°C (32°F to 122°F)
Storage Temperature -40°C to 70°C (-40°F to 158°F)
Humidity 0% to 95% relative humidity, non-condensing
Drop Designed to withstand 50 1.8 m (6´) drops to concrete
Ratchet stand: Designed to withstand 50 1.2 m (4´) drops to concrete on each of the faces
Environmental Sealing IP41
Light Levels 0 to 100,000 lux (9,290 foot-candles)
without losing its ability to keep the scanner in any ratchet position
Scan Performance
Scan Pattern Area Image (838 x 640 pixel array)
Motion Tolerance Up to 610 cm/s (240 in/s) for 13 mil UPC at optimal focus
Scan Angle HD Focus: Horizontal 41.4°; Vertical: 32.2°
SR Focus: Horizontal: 42.4°; Vertical: 33°
ER Focus: Horizontal: 31.6°; Vertical: 24.4°
Symbol Contrast 20% minimum reflectance difference
Pitch, Skew 45°, 65°
Decode Capability Reads standard 1D, PDF, 2D, Postal and OCR symbologies
*Note: Decode capabilities dependent on kit configuration
