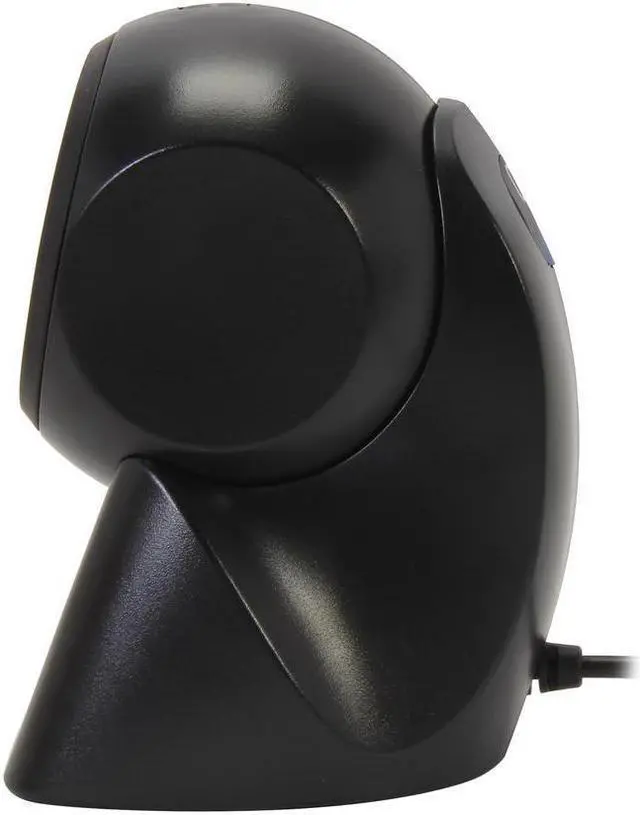

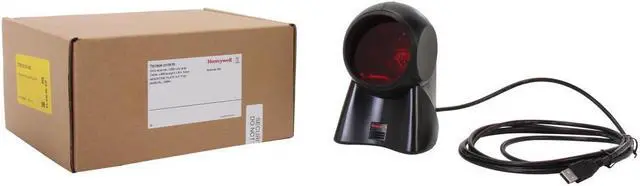

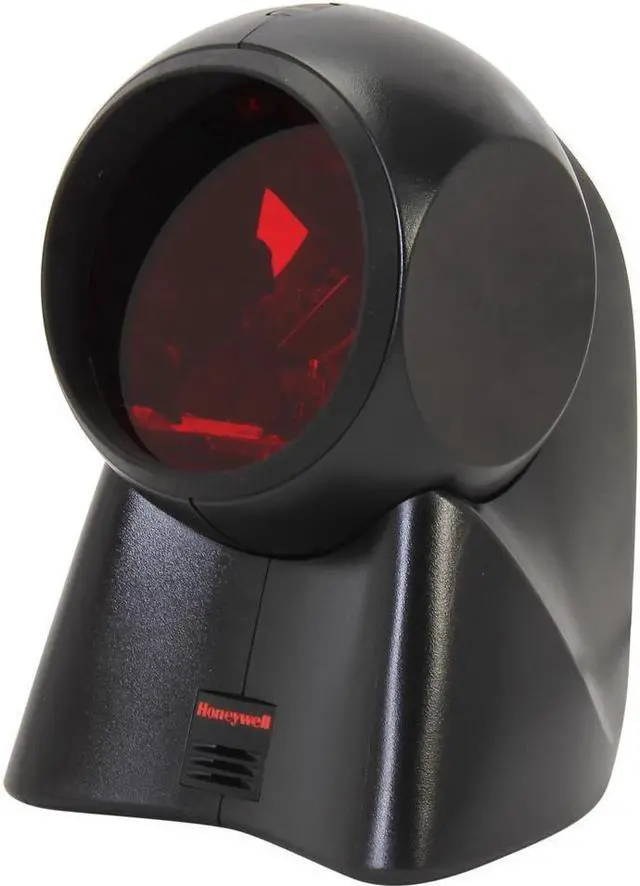

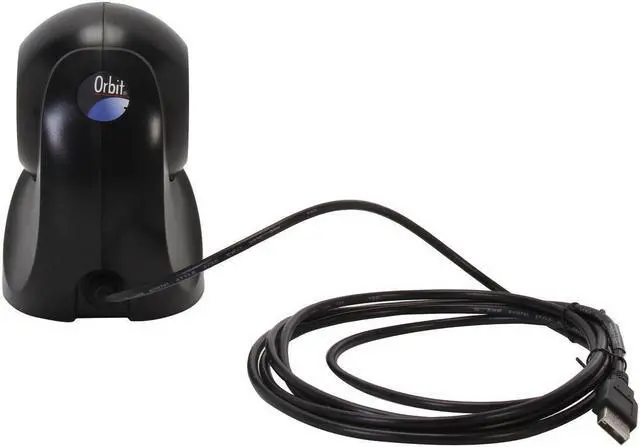

Honeywell / Metrologic MK7120-31A38 Orbit Barcode Scanner with Mounting Plate and USB Cable (Black)

Orbit 7120 Series Omnidirectional Laser Scanners Wireless Single-Line Laser Scanner MK7120 series Honeywell's Orbit® series of scanners provide aggressive omnidirectional scanning in an award-winning design for retailers seeking an affordable, aesthetically-pleasing scanning solution. Orbit, the all-time, best-selling hands-free omnidirectional scanner, presents an innovative, elegant and affordable solution for convenience retail applications where counter space is at a premium. Compact, lightweight and rugged, Orbit maximizes customer satisfaction and employee efficiency with a patented 20-line scan pattern, an easy-to-find sweet spot and a scan speed of 1, 120 scans per second.

Recipient of multiple design honors, Orbit's award-winning shape enables hand-held scanning of large, bulky items. For added flexibility, the scanning head can be tilted within a 30-degree range to accommodate objects of various sizes and shapes. For applications that require menu scanning, OrbitCG 7180 combines the power of patented CodeGate® technology with many of the outstanding features already found in the Orbit®


7120. CodeGate technology allows the user to easily target the desired bar code and complete data transmission with the push of a single button. The scanner's expanded ability to update its firmware via Honeywell's free patented MetroSet®2 configuration software safeguards longterm infrastructure commitments in the event of a change in the POS system or software. Standard features include an integrated EAS antenna for tag deactivation (OrbitCG 7180 only), power save mode, user-replaceable cables, Honeywell's patented MetroSelect and MetroSet®2 for easy configuration, data editing and OPOS/JPOS compatibility for easy installation. Features MK7120 series 20
Scan Line Omnidirectional Pattern: Provides aggressive scanning as an additional benefit to hand presentation applications
Sweet Spot Scanning: Engineered "sweet spot" to optimize scan performance and first pass read rate
Adjustable Scan Head: Ability to tilt scanner 30 degrees for targeted scanning or larger products
Flash ROM: Protects POS investment with free firmware updates via MetroSet®2 software and standard
PC Automatic Scanning Operation: Simply present a bar code and the unit scans in a single pass Built-in RF EAS
Antenna (Orbit 7180 only): Increases efficiency by simultaneously deactivating RF EAS tags and decoding bar codes

Specifications

Mechanical Dimensions (L x W x H) 4.1 x 4.0 x 5.9 inches (105 x 102 x 150mm) Weight 14.1 oz (400g) Electrical Input Voltage 5VDC ± 0.25V Operating Power 900mW (180mA @ 5V) Standby Power 850mW (170mA @ 5V) Host System Interfaces USB, RS232, Keyboard Wedge, IBM 468xx (RS485), Light Pen Wand Emulation Environmental Operating Temperature 32 - 104°F (0 - 40°C) Storage Temperature -40 - 140°F (-40 - 60°C) Humidity 5% to 95% relative humidity, non-condensing Drop Designed to withstand 4-foot ( 1.2 m) drops Environmental Sealing Sealed to resist airborne particulate contaminants Light Levels 4842 Lux Scan Performance Scan
Pattern Omnidirectional: 5 fields of 4 parallel lines
