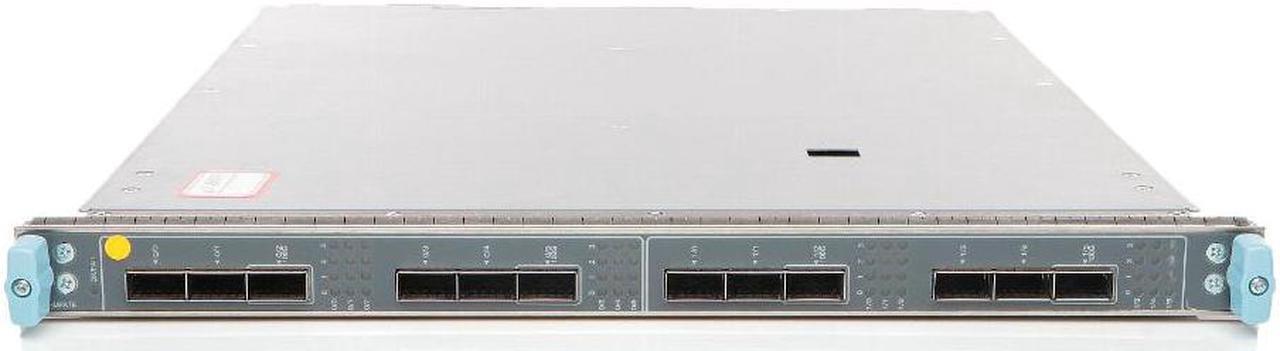

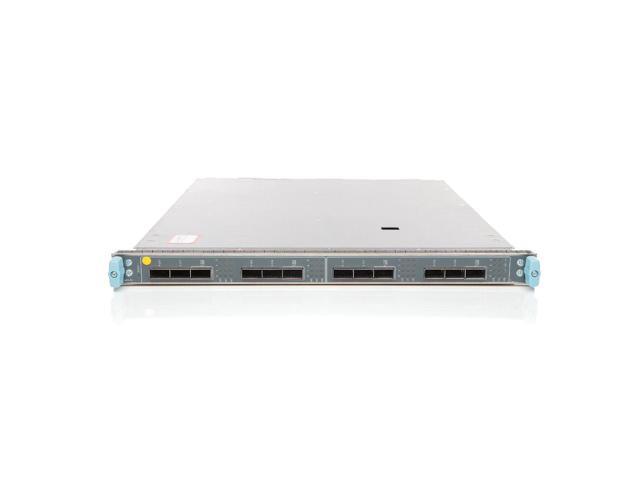

Juniper MPC7E-MRATE-RTU

Upgrade your network's efficiency and speed with the Juniper MPC7E-MRATE-RTU Multi-Rate Ethernet Module, the perfect choice for enterprises and service providers seeking robust performance and scalability. This enhanced Ethernet module is specifically engineered for Juniper MX-Series routers, delivering versatility with support for multiple Ethernet speeds ranging from 10GbE to 100GbE.

Experience the power of high-density networking, designed to meet the needs of bandwidth-intensive applications such as data centers, large enterprise networks, and ISP infrastructures. With the reliability of the Junos Trio chipset, this interface card guarantees superior throughput, minimized latency, and exceptional packet processing capabilities.

Security is paramount in today's networking environments, and the MPC7E-MRATE-RTU comes equipped with Juniper's advanced security features to ensure your network remains protected. Additionally, benefit from the streamlined network management and troubleshooting provided by the intuitive Junos OS.

Invest in a future-proof networking module that not only meets your current needs but also adapts to your evolving requirements. The Juniper MPC7E-MRATE-RTU is an investment in your network's long-term growth and success. Add this module to your Juniper router and propel your network infrastructure into a new realm of performance and efficiency. "

Line-rate throughput of up to 480 Gbps on MX240, MX480, and MX960 routers.

Line-rate throughput of up to 400 Gbps on MX2000 routers with SFB, and up to 430 Gbps on MX2000 routers with SFB2.

Junos Trio chipsets for increased scaling for bandwidth, subscribers, and services

Twelve Gigabit Ethernet ports that can be configured as 40-Gigabit Ethernet port or as four 10-Gigabit Ethernet ports using a breakout cable. The ports support quad small-form factor pluggable plus (QSFP+) transceivers. The 40Gbps or 100Gbps ports configured to run at 10Gbps speed are shown in the
CLI as follows:

show interfaces terse
Interface Admin Link Proto Local Remote
xe-10/0/ 0:0 up down
xe-10/0/ 0:1 up down
xe-10/0/ 0:2 up down
xe-10/0/ 0:3 up down
Four out of the twelve ports can be configured as 100-Gigabit Ethernet ports. Port numbers 0/2, 0/5, 1/2 and 1/5 are the four 100-Gigabit Ethernet ports.

You can configure different combination of port speeds as long as the aggregate capacity per group of six ports labeled 0/0 through 0/5 does not exceed 240 Gbps. Similarly, aggregate capacity per group of the other six ports labeled 1/0 through 1/5 should not exceed 240 Gbps.

Requires high-capacity power supplies, high-capacity fan trays, and SCBE2 or SCBE3 switch control boards on MX240, MX480, and MX960 routers.

Requires an adapter card to be housed in MX2000 routers.

The ports are labeled as (with the MPC orientation as shown in the above figure):

10-Gigabit Ethernet or 40-Gigabit Ethernet ports:

0/0, 0/1, 0/2 100G, 0/3, 0/4, 0/5 100G, 1/0, 1/1, 1/2 100G, 1/3, 1/4, and 1/5 100G

100-Gigabit Ethernet ports:

0/2 100G, 0/5 100G, 1/2 100G and 1/5 100G

NOTE: Only ports marked 100G support 100-Gigabit Ethernet speed using QSFP28 transceivers.
Supports maximum transmission units (MTUs) from 256 bytes through 16, 000 bytes for transit traffic, and from 256 bytes through 9, 500 bytes for host bound packets.

NOTE: On MX960 routers, all the MPC slots can be occupied by MPC7E MRATE line cards at an ambient temperature of up to 40° C and at any altitude. All the MPC slots can be occupied by an MPC7E MRATE line card at temperatures of up to 55° C and at sea level. At an ambient temperature of above 55° C, and at an altitude above sea level, slot 11 cannot host MPC7E MRATE line cards.
