$59.99
Ships from China.
Meet Your Seller

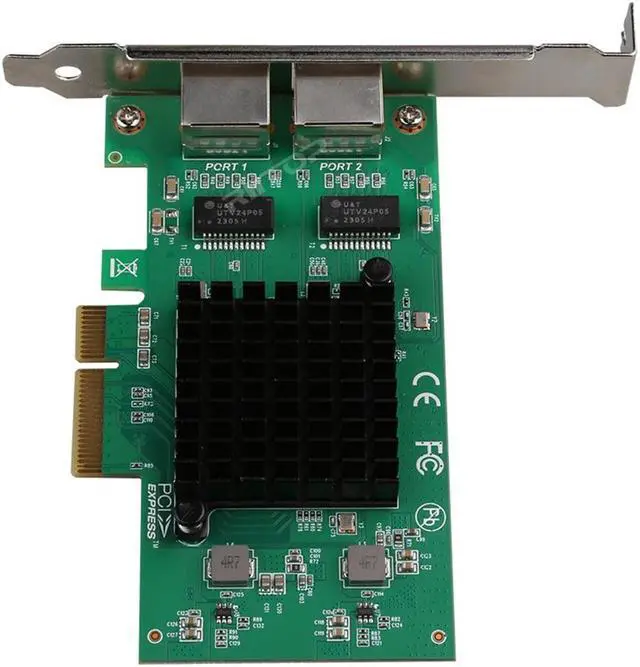

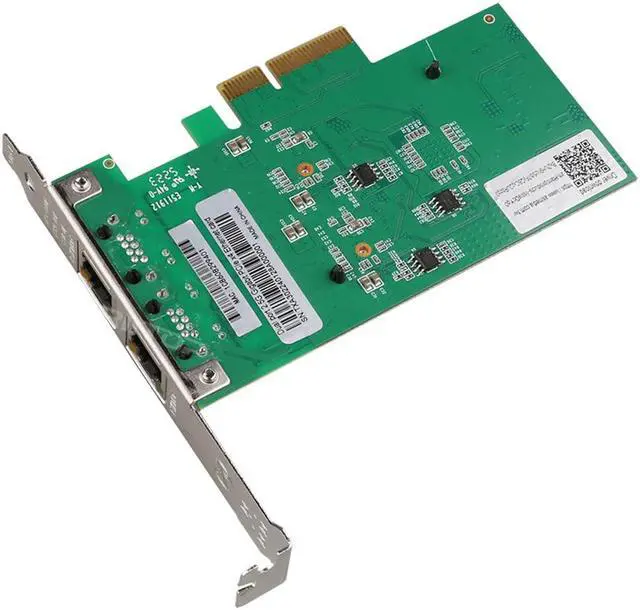

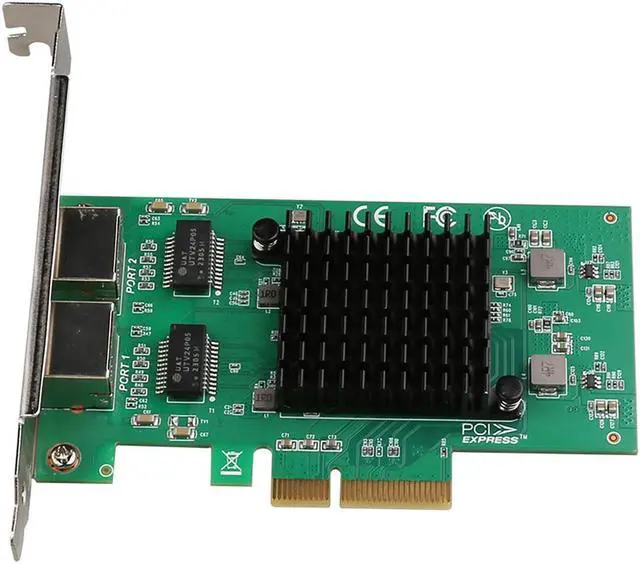

Dual Ports 2.5GBase-T Network Adapter Card with Intel I226 2500/1000/100Mbps PCI-e Express Gigabit Ethernet NIC Card RJ45 LAN Controller for Windows 10/11 with Low Profile Bracket (PCIe x4 or higher)
Limited time offer, ends 01/11 By UitTek
- Dual Lan 2.5G Network Card :Adopting Intel i226 Controller, it provides up to Dual Lan 2.5Gbps of extreme speed to ensure the stability of Internet access and local data transmission, effectively preventing packet loss and making the server more stable.
- Network Interfaces: Two independent Ethernet interfaces for 2.5GBASE-T, 1000BASE-T, 100BASE-TX applicationgs (IEEE 802.3az and IEEE 802.3u, and 802.3ab), supports Windows/Windows Server/Linux/Vmware/ESX.

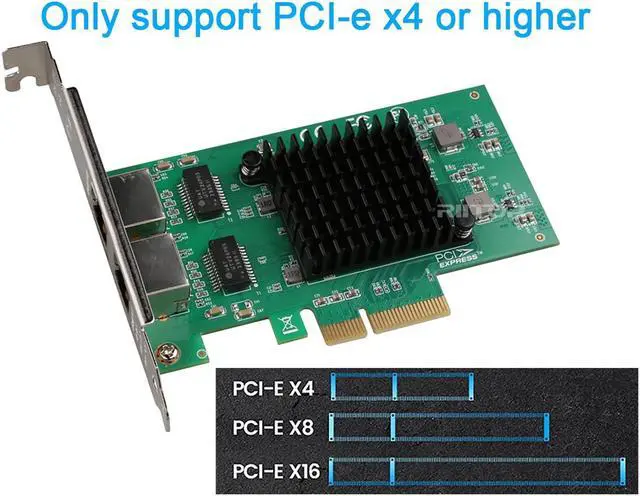

- PCIe to 2.5Gbe RJ45: This 2.5G BASE-T PCIe network adapter converts PCIe slots (X4/X8/X16) into 2.5G RJ-45 Ethernet ports. Note: Only for PCIe ports, not for PCI slots.
- Adaptability and heat dissipation: Comes with standard brackets and slim brackets for different applications such as desktops, workstations, servers, and mini-tower computers. Excellent heat dissipation performance can quickly reduce the temperature and keep the stability of network transmission.
- OS Compatibility: Windows® 10, 11; Linux Kernel 5.16 or later.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Dual Port 2.5G b Network Card Adapter with Intel I226 2500/1000/100Mbps PCI Express Gigabit Ethernet NIC Card RJ45 LAN Controller for Windows 10/11 with Low Profile Bracket
Features:
Multi-Gigabit Ethernet connectivity with four network speeds: 2.5G, 1G, 100Mbps, 10Mbps
Compatible with both 2.5GBASE -T and NBASE-T specifications
Support 2.5G bps network speed on CAT5e and CAT6a cabling
Speed and Activity LED indicators
Fully Compliant with IEEE 802.3, IEEE 802.3 u, IEEE 802.3 ab, IEEE 802.3 az and IEEE 802.3 bz standards
Supports IEEE 802.1Q VLAN tagging, and IEEE 802.3 x Fully Duplex Flow Control
Full and half duplex support
PXE network boot support
Transmit/Receive on-chip buffer support
Jumbo frame supports up to 9Kbytes
Complies with Microsoft and Linux platforms
Bus Type: PCI Express 2.0 (5 GT/s).
Bus Width: x4 lane PCI Express, operable in x4, x8 and x16 slots.
Card Type: Standard/Low Profile.
Chipset ID: ASMedia ASM1806, Intel I226V
Industry Standards: IEEE 802.3, IEEE 802.3 u, IEEE 802.3 x, IEEE 802.3 ab, IEEE 802.3 az, IEEE 802.3 bz.
Interface: 2x RJ45.
System and Cable Requirements: PCI Express enabled computer with an available PCI Express x4 slot Gen 2.0 or higher (x8, x16).
OS Compatibility:
Windows® 10, 11;
Linux Kernel 5.16 or later.
Package Contents:
1x Dual Port 2.5G b Network PCIe Card Adapter.
1x Low Profile Bracket.
Features:
Multi-Gigabit Ethernet connectivity with four network speeds: 2.5G, 1G, 100Mbps, 10Mbps
Compatible with both 2.5GBASE -T and NBASE-T specifications
Support 2.5G bps network speed on CAT5e and CAT6a cabling
Speed and Activity LED indicators
Fully Compliant with IEEE 802.3, IEEE 802.3 u, IEEE 802.3 ab, IEEE 802.3 az and IEEE 802.3 bz standards
Supports IEEE 802.1Q VLAN tagging, and IEEE 802.3 x Fully Duplex Flow Control
Full and half duplex support
PXE network boot support
Transmit/Receive on-chip buffer support
Jumbo frame supports up to 9Kbytes
Complies with Microsoft and Linux platforms
Specifications
Bus Type: PCI Express 2.0 (5 GT/s).
Bus Width: x4 lane PCI Express, operable in x4, x8 and x16 slots.
Card Type: Standard/Low Profile.
Chipset ID: ASMedia ASM1806, Intel I226V
Industry Standards: IEEE 802.3, IEEE 802.3 u, IEEE 802.3 x, IEEE 802.3 ab, IEEE 802.3 az, IEEE 802.3 bz.
Interface: 2x RJ45.
System and Cable Requirements: PCI Express enabled computer with an available PCI Express x4 slot Gen 2.0 or higher (x8, x16).
OS Compatibility:
Windows® 10, 11;
Linux Kernel 5.16 or later.
Package Contents:
1x Dual Port 2.5G b Network PCIe Card Adapter.
1x Low Profile Bracket.
