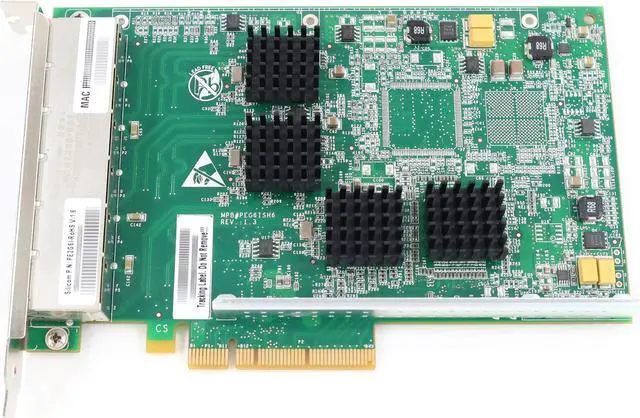

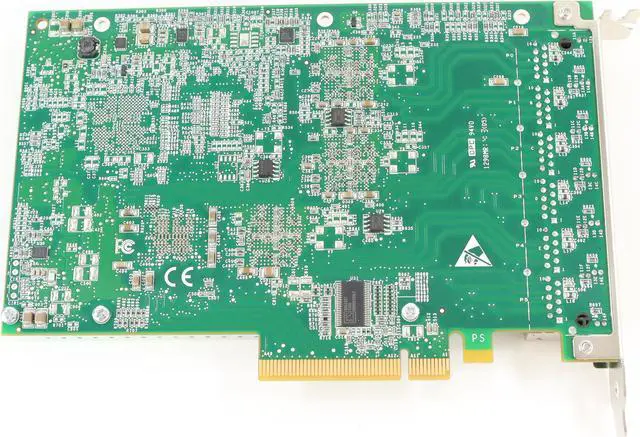

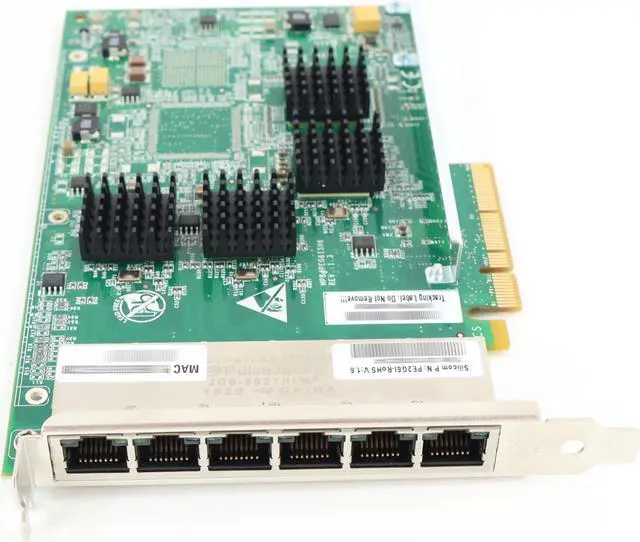

Silicom SNS 6x1Gb EVO Ethernet Expansion (iSCSI/NAS) ETH-6X1C PE2G6I-RoHS

Silicom SNS 6x1Gb EVO Ethernet Expansion (iSCSI/NAS) ETH-6X1C PE2G6I-RoHS

Condition: New

Compeve SKU: 368900100102

Specification:

Silicoms six port Gigabit Ethernet PCI Express Server Adapter is a PCI Express X8 Copper Gigabit Ethernet network interface card that contains six independent Gigabit Ethernet ports on PCI Express card adapter.

Silicoms Gigabit Ethernet PCI Express Server Adapter is designed for Servers and high-end appliances. The performance is optimized so that system I/O is not the bottleneck in high-performance networking applications. Silicoms Gigabit Ethernet PCI Express Server Adapter is based on Intel 82571. This adapter is complete PCI Express server adapter solution that incorporates Gigabit Ethernet ports.

Silicoms Six Port Copper Server adapter is the ideal solution for implementing multiple network segments, mission-critical high-powered networking applications and environments within high performance servers, and targeted to security servers / security appliances.

IEEE Standard / Network topology:
Gigabit Ethernet, 1000Base-T
Fast Ethernet, 100Base-TX
Ethernet, 10Base-T

Full duplex / Simplex:
Support both Simplex & Full duplex operation in all operating speeds

Auto negotiation:
Auto-negotiation between Full duplex and simplex operations and between 10Mb/s 100Mb/s speeds and duplex 1000Mb/s.

Cables and Operating distance:
10Base-T Category 3, 4, or 5 maximum 100m
100Base-Tx Category 5 maximum 100m
1000Base-T Category 5E maximum 100m

Operating system support:
Windows
Netware
Linux
FreeBSD
Unix
Solaris X86
VMware

Interface Standard: PCI-Express Base Specification Revision 2.0
Board Size: Standard height short add-in card 167.64mm X 111.17mm (6.60X 4.377)
PCI Express Card Type: X8 Lane , Gen2 5Gbps
PCI Express Voltage: +12V +- 8%
PCI Connector: Gold Finger: X8
Controller: Intel 82571EB
Weight: 160 gr ( 5.64 oz )

Power Consumption:
15.36W, 1.28A at 12V: Typical all ports operate at 1000Mbit/s.
9.72W, 0.81A at 12V: Typical all ports operate at 100Mbit/s.
9W, 0.75A at 12V: Typical all ports operate at 10Mbit/s.
9W, 0.75A at 12V: Typical No link at all ports

Operating Humidity: 0%90%, non-condensing
Operating Temperature: 0°C 50°C (32°F - 122°F)
Storage: -20°C65°C (-4°F149°F)

EMC Certifications:
FCC 47 CFR part 15:2008, subpart B, Class A
Conducted Emissions
Radiated Emissions
CE EN 55022: 2006 Amendments A1: 2007 Class A
Conducted Emissions
Radiated Emissions
CE EN 55024: 1998 Amendments A1: 2001; A2: 2003
Immunity for ITE Amendment A1: 2001
CE EN 61000-3-2 2006, Class A
Harmonic Current Emissions
CE EN 61000 3-3 1995, Amendment A1: 2001, A2: 2005
Voltage Fluctuations and Flicker
CE IEC 6100-4-2: 1995
ESD Air Discharge 8kV. Contact Discharge 4kV.
CE IEC 6100-4-3:1995
Radiated Immunity (80-1000Mhz), 3V/m 80% A.M. by 1kHz
CE IEC 6100-4-4:1995
EFT/B: Immunity to electrical fast transients 1kV Power
Leads, 0.5Kv Signals Leads
CE IEC 6100-4-5:1995
Immunity to conductive surges COM Mode; 2kV,
Dif. Mode 1kV
CE IEC 6100-4-6:1996
Conducted immunity (0.15-80 MHz) 3VRMS 80% A.M.
By 1kHz
CE IEC 6100-4-11:1994
Voltage Dips and Short Interruptions
V reduc >95%, 30% >95% Duration 0.5per, 25per, 250per
