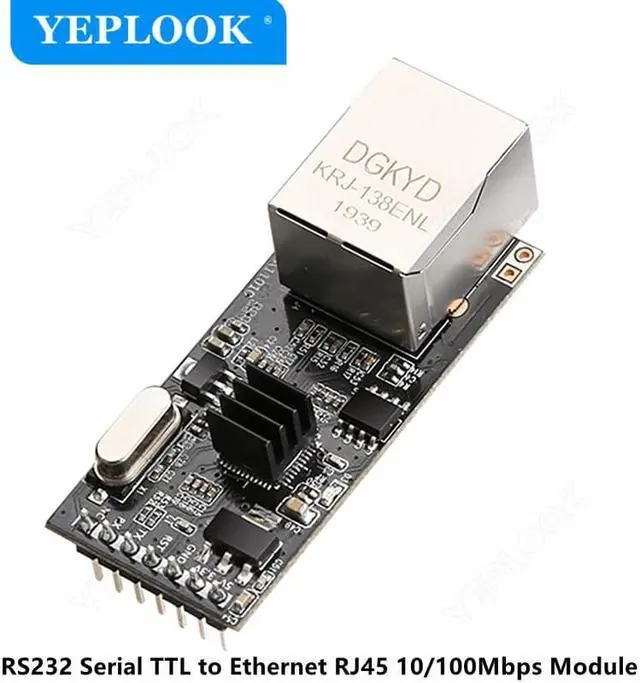

RS232 Serial TTL to Ethernet RJ45 10/100Mbps Module Support TCP/UDP/HTTP Working Mode Chipset TXIC/TX210T

RS232 Serial TTL to Ethernet RJ45 10/100Mbps Module Support TCP/UDP/HTTP Working Mode Chipset TXIC/TX210T


Serial TTL to Ethernet Module which can realize data bidirectional transparent transmission between serial TTL and RJ45 Port. USR-TCP232-T2 is based on Cortex-M0 core- low cost solution. It has characters of low power, fast speed and high efficiency.


Color: Black

Material: PCB

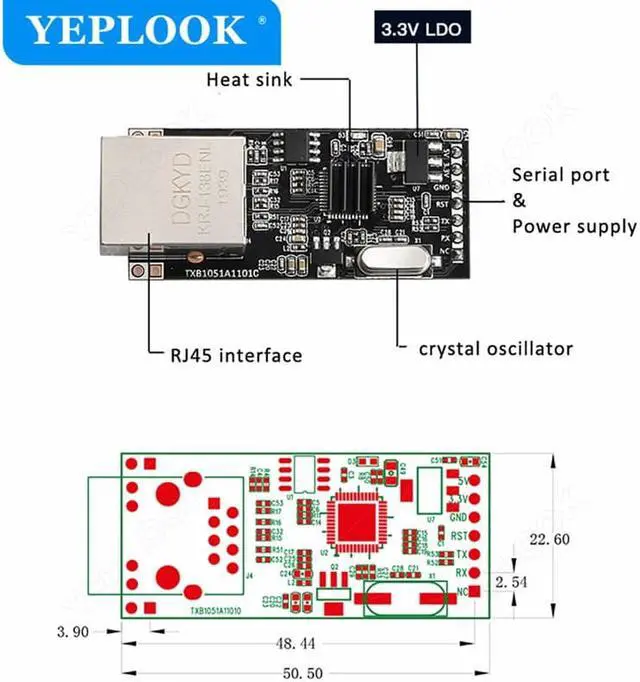

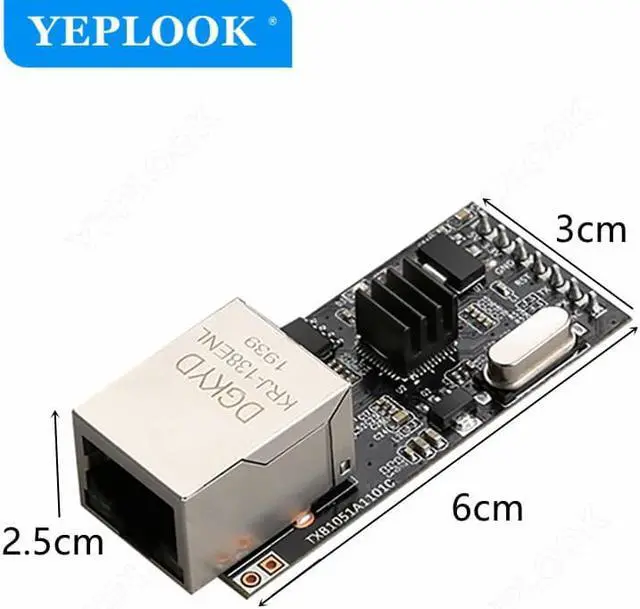

Size: 6x3x 2.5 cm





Features:



1. DHCP&DNS, automatically obtain an IP address and query IP address through serial setting protocol


2. Set parameters through web page and serial AT command


3. Upgrade firmware via network


4. Auto-MDI/MDIX, RJ45 port with 10/100Mbps


5. Serial port baud rate from 600bps to 460.8K bps, Check bit of None, Odd, Even, Mark and Space


6.
Work mode: TCP Server, TCP Client, UDP Client, UDP Server, HTTPD Client


7. Support virtual serial port and provide corresponding software USR-VCOM


8. Heartbeat package mechanism to ensure connection is reliable, put an end to dead link


9. User-defined registration package mechanism, check connection status and use as custom packet header


10. Under TCP Server mode, Client number ranges from 1 to 16; default number is 4


10. The global unique MAC address bought from IEEE, user can define MAC address Restore factory default


11. Across the gateway, switches, routers


12. Can work in LAN, also can work in the Internet (external network)


13. Provide PC TCP/IP socket programming example such as VB, C++, Delphi, Android and IOS

Support customization



Application:



Industrial data transmission, industrial automation.

security and protection monitoring, public security.

Smart home, power control, environmental monitoring, intelligent agriculture.

Door check on work attendance system, POS system, rice selling system.

Building automation system, power monitoring, self-service banking system, telecom machine room monitoring.
