AQC113 is a high-performance Ethernet controller that provides 10Gbps network transmission speeds, utilizing Marvell's advanced low-power technology to ensure low power consumption while maintaining high-speed data transfer. It also features QoS technology, optimizing service functions for multi-tasking network applications to ensure appropriate bandwidth allocation and enhance network performance. Additionally, AQC113 supports virtualization technology, allowing a single physical network card to be allocated to multiple virtual machines, providing better performance and management efficiency. Furthermore, AQC113 boasts advantages such as reliability, efficiency, security, and ease of use, making it suitable for communication equipment in PC computers, data centers, cloud computing, servers, and network storage.

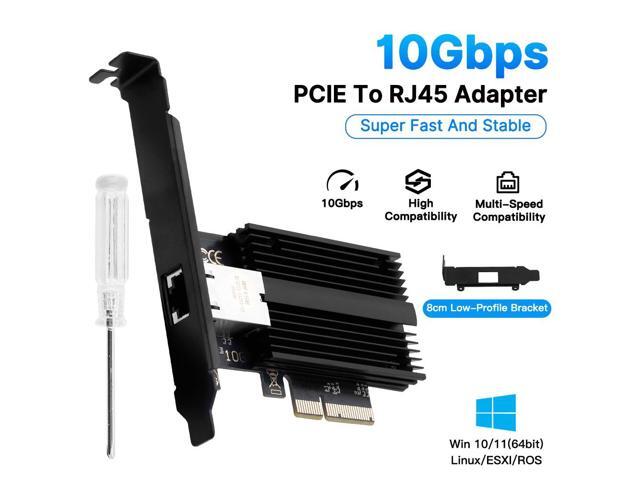

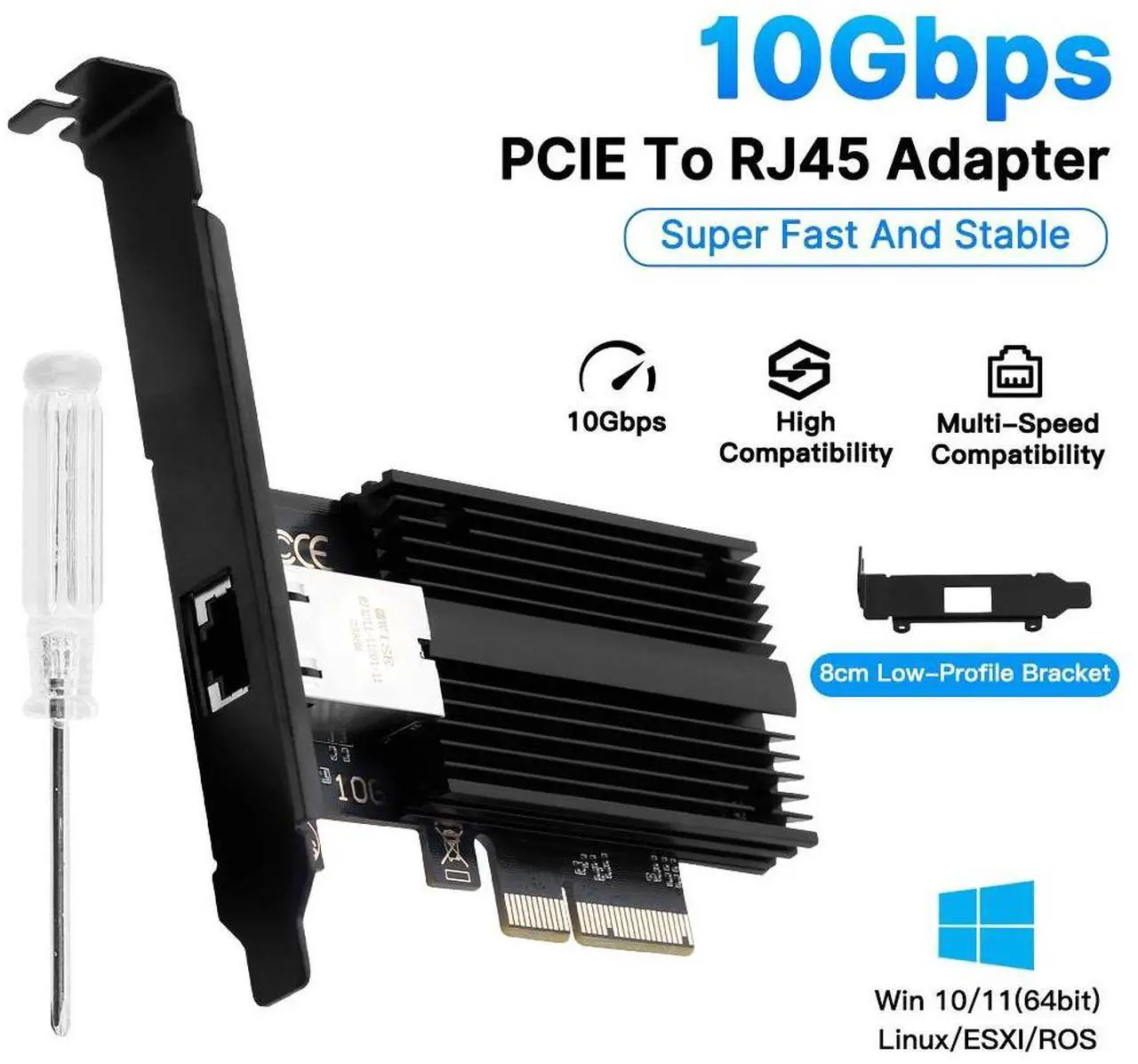

AQC113 10GB Network Card Specifications
:
Interface: 1 RJ45 port supporting 100M/1000M/ 2.5G bps/5Gbps/10Gbps auto-negotiation
Communication Protocol Standards: Compatible with PCI Express 3.0 to 4.0 (supports x4/x8/x16)
Supports IEEE 802.3, IEEE 802.3 u, IEEE 802.3 bz
Supports IEEE 802.3 ad LACP (Link Aggregation Control Protocol) for dual VLA
Ns
Supports IEEE 802.3 az Energy Efficient Ethernet (EEE), IEEE 802.1 p QoS (Quality of Service), RoHS
Supports IEEE 802.1Q VLAN tagging
Supports full-duplex and half-duplex auto-negotiation (IEEE 802.3 x)
Supports IEEE 1588 Precision Time Protocol (PTP) timing synchronization stack
Security: Supports encryption protocols such as SSL, TLS, IPsec
Operating Systems: Requires drivers (Compatible with Linux, Windows 10/11, and Windows Server 2012 and above)
Size:
Dimensions: 120mm x 97mm x 59mm
Heatsink size: 67mm x 44mm
Operating Environment:
Operating temperature: 0°C to 70°C
Storage temperature: -40°C to 80°C
