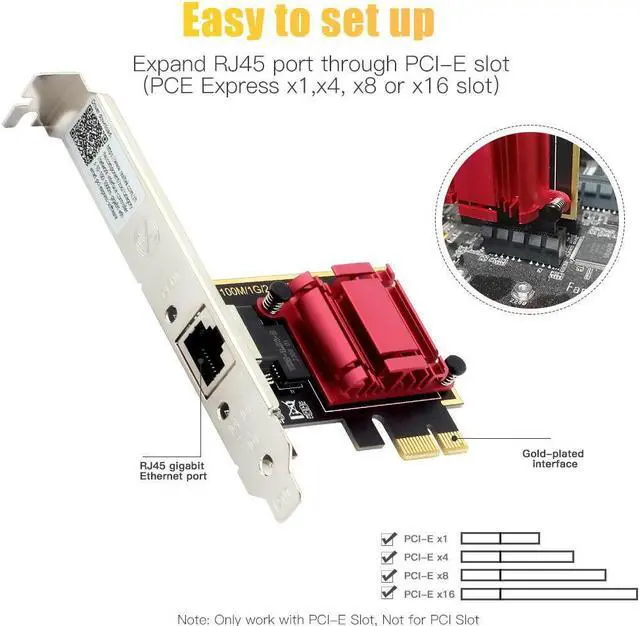

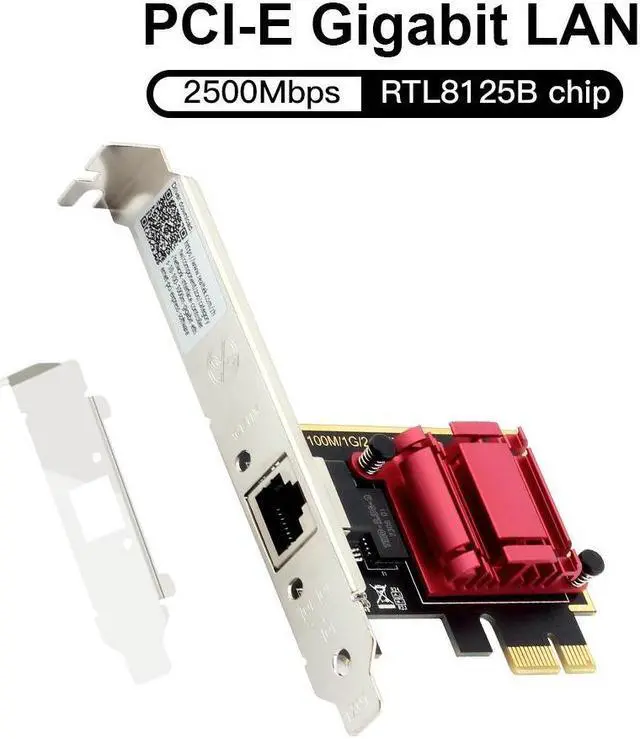

2.5GBase-T PCIe Network Adapter RTL8125B 2500/1000/100Mbps PCI Express Gigabit Ethernet Card RJ45 LAN Controller 2.5G Ethernet Port Support PXE for Windows/Linux/mac Os with Low Profile

Suitable for Host Sever and Personal PC
PCI Express RTL8125B 2.5G network adapter is combines a four-speed IEEE 802.3 compatible Media Access controller with a four-speed Ethernet transceiver, it is complies with the IEEE 802.3 u specification for 10/100Mbps Ethernet, the IEEE 802.3 ab specification for 1000Mbps Ethernet and IEEE 802.3 bz specification for 2500Mbps Ethernet.

Product Feature.

It offers high-speed transmission over CAT5e UTP cable OR CAT3 UTP (10Mbps only) cable. it is suitable for multiple market segments and emerging applications, such as desktop, workstation, server, communications platforms, and embedded applications.

Specification

Chipset: RTL8125B

Port number: 1* RJ45

Standard: IEEE 802.3IEEE 802.3 uIEEE 802.3 abIEEE 802.3 azIEEE 802.3 bz

Network media: 10Base-T, cat3 or above UTP, 1000Base-Tx, cat5 or above UTP

Data rate: PCI Express 1x slot

Auto MDIX: YES

Full Duplex Support: YES

LED Indicator: 100M/1G/ 2.5G Link/Act

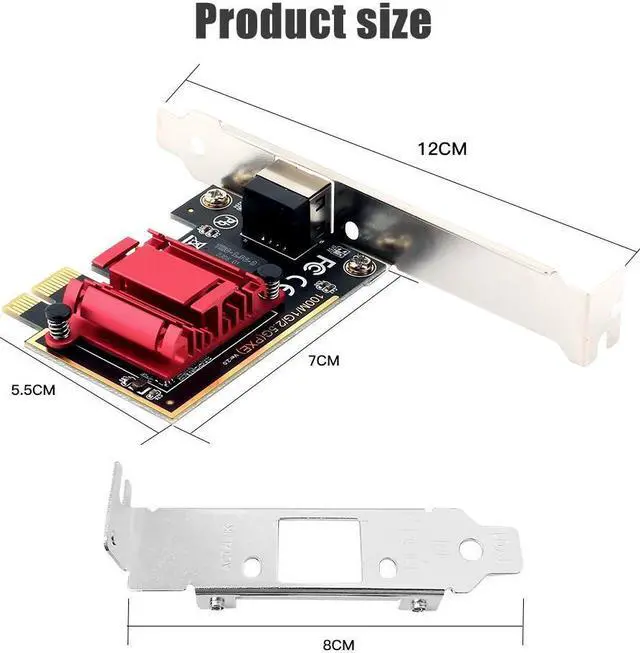

Dimension: 71.5 *50* 1.6 mm

Support OS: Windows 10(32/64), Win7 (32/64), Win8, 8.1 (32/64), Windows Server, 2012, 2008, Linux, Mac OS

Support PXE function.

Support Wake on LAN

Support 2.5G and 1G Lite mode

Compatible with NBASE-T Alliance PHY Specification

Supports PCI Express 2.1

Supports 1-Lane 2.5G /5Gbps PCI Express Bus

Compliant with IEEE 802.3, IEEE 802.3 u, IEEE 802.3 ab

Supports IEEE 802.1P Layer 2 Priority Encoding

Supports IEEE 802.1Q VLAN tagging
Supports IEEE 802.3 az (Energy Efficient Ethernet)
Supports IEEE 802.3 bz( 2.5GBASE -T)
Supports Full Duplex flow control(IEEE 802. 3x)

Packing list:

1xPCIE 2.5G LAN Card
1x Low profile Bracket
