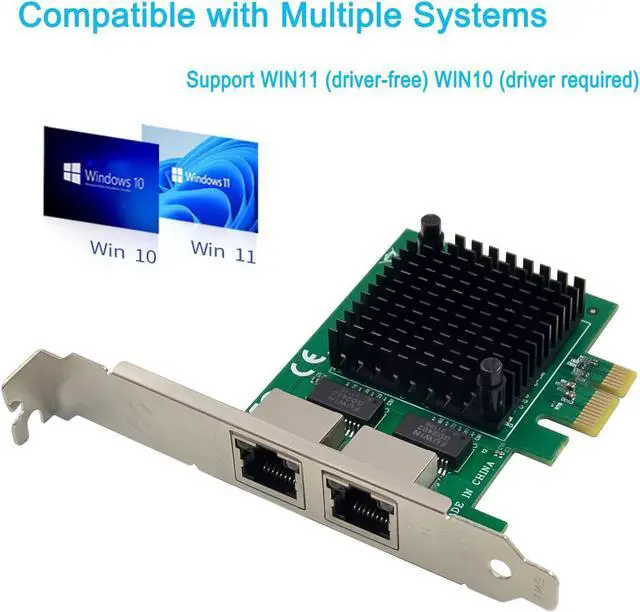

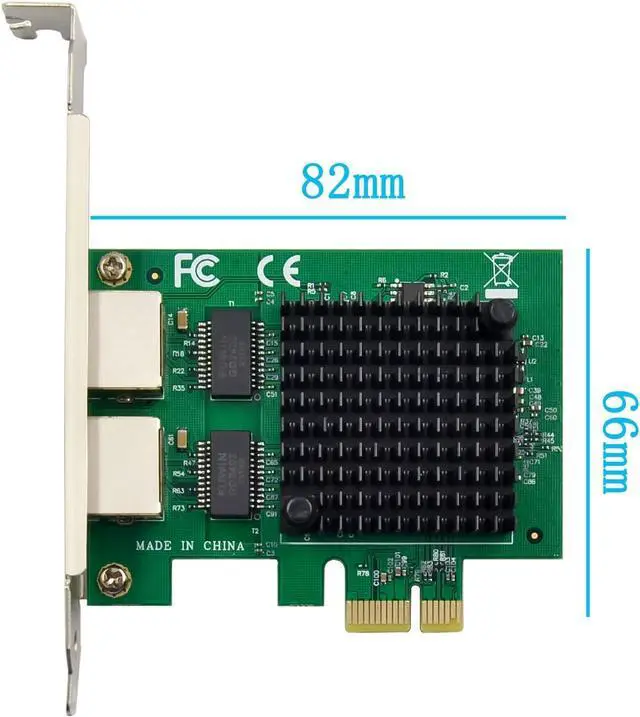

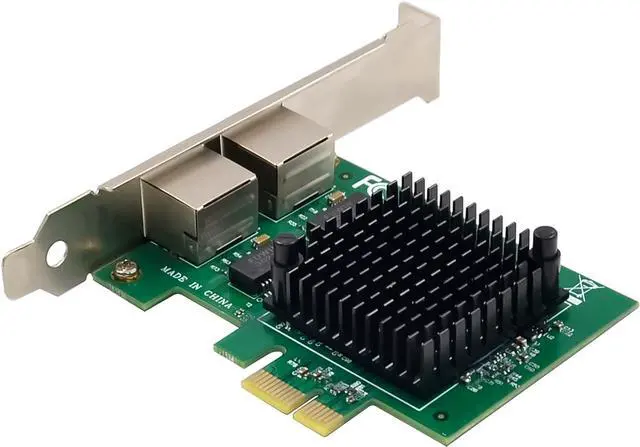

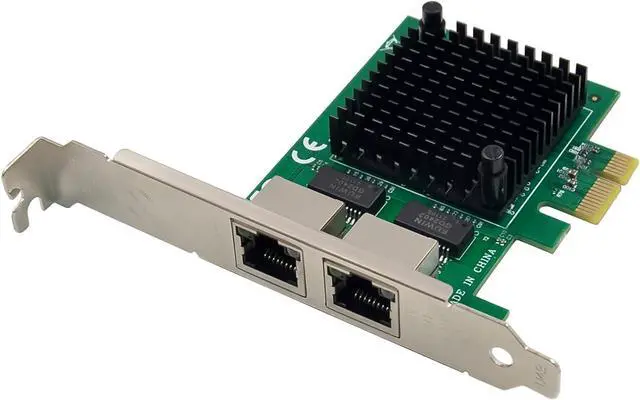

GOLDENDISK Dual PCIe 3.1 2.5GBase-T Network Adapter with Intel I225-V / I226-V 2500/1000/100Mbps PCI Express Gigabit Ethernet NIC Card RJ45 LAN Controller for Windows 10/11 with Low Profile Bracket
- PCI Express 3.1 :5GT/s Support for x1 width (Lane).The I225-V has been discontinued, and the I226-V will replace it. The two models have identical functionality. Compared to the I225, the I226 has improved error rates, offering better data packet stability over longer cable lengths and providing a more stable network connection. It also enhances the accuracy and stability of data transmission. Additionally, the I226 reduces active power consumption compared to the I225, making it more energy-efficient
- Network Interfaces:Integrated MAC + BASE-T PHY. MDI (Copper) standard IEEE 802.3 Ethernet interface for 2500BASE-T, 1000BASE-T, 100BASE-TX, and 10BASE-TE applications (802.3, 802.3u, 802.3bz, and 802.3ab)
- Compatible for X1,X2,X4,X8,X16,Comes with low profile bracket
- Support Win10/11,Linux Kernel 5.8/5.16.18,RHEL 8.1/8.3/8.6,Ubuntu* 22.04 LTS,FreeBBSD 13.0,VMware ESXi7.0/8.0,DPDK 20.05/22.07,OPENWRT/UNRAID/PVE.Support PXE function
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Description
This PCI Express controller with Base-T copper network interface provides a compact, integrated multi-Gigabit (up to 2.5G) -MDI (copper) standard IEEE 802.3 Ethernet interface for 2500BASE-T, 1000BASE-T, 100BASE-TX, 10BASE-TE connections (IEEE 802.3). , 802. 3u, 802.3ab) with one port.
The I225 Ethernet Controller is designed for use in any mobile, desktop, workstation, value server or industrial design with critical space conditions. The I225 can also support Intel vPro technology on certain Intel platforms and chipsets.
The I225 Ethernet Controller also supports the latest Time Sensitive Networking (TSN) features as well as the best power management and operating system support in its class.
Specification
Compliant with PCI Express Specification Revision 3.1 (5GT/s)
MDI (copper) standard IEEE802.3 Ethernet interface up to 2.5Gb/s
Equivalent to a 1GbE RJ45 connector (copper)
Compliant with MDI standard IEEE802.3 Ethernet interface for 2500BASE-T, 1000BASE-T, 100BASE-TX, 10BASE-TE applications (IEEE802.3bz, IEEE802.3ab, IEEE802.3u, and IEEE802.3)
IEEE802.3 Auto Negotiator
Supports IEEE802.3x and IEEE802.3z compliant flow control with software-controlled RX thresholds and TX pause frame
Automatic cross-over detection function (MDI/MDI-X)
IEEE 1588 protocol and 802.1AS implementation
Supports Time Sensitive Networking (TSN) capabilities
Supports IEEE802.3az Energy Efficient Ethernet (EEE), EEE is supported for 2500BASE-T, 1000BASE-T, and 100BASE-TX.
TCP/UDP, IPv4 checksum shift (Rx/Tx)
Segmentation shift during transmission (TSO) (IPv4, IPv6)
Support for packages up to 9.5KB jumbo frames
PXE support: Linux boot via PXE or BOOTP, Windows Deployment Services or UEFI
Drivers for Windows R10 32 or 64bit
