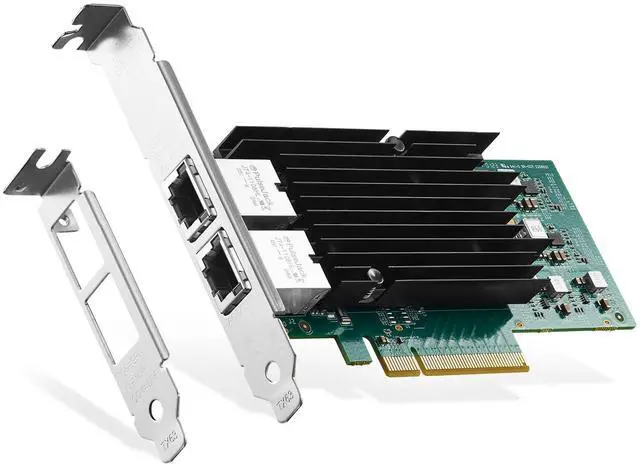

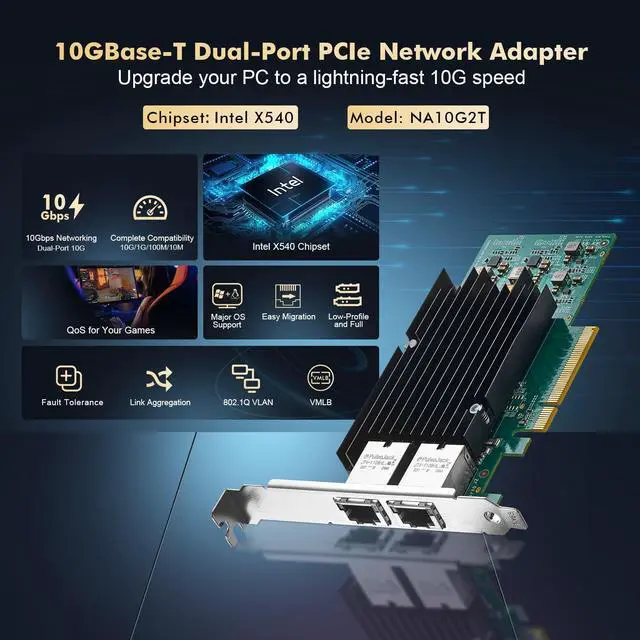

NA10G2T is a dual-port highperformance network adapter, supporting 4 network speeds: 10GBASE-T/1000BASE-T/100BASE-T/10BASE-T. With a PCI-E Gen2.1 x8 network adapter easily handles the 10GbE line-rate performance.
Lightning-fast 10G Networking
Compliant with the 10GBASE-T specification and the IEEE802.3an standard, upgrade up to 10X-faster data-transfer speeds for bandwidth-demanding tasks.

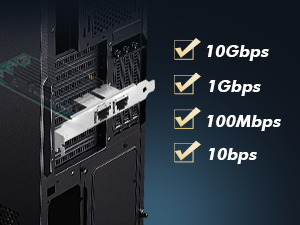

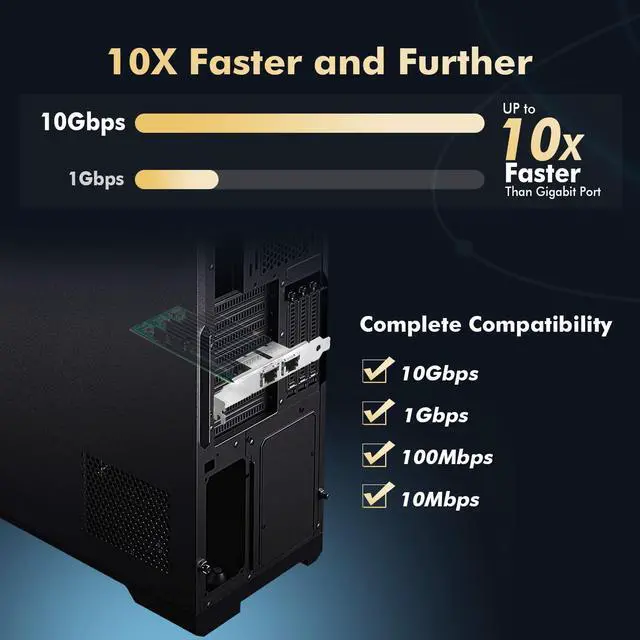

Compatibility 4 Speed
Support 4 network speeds: 10GBASE-T/1000BASE-T/100BASE-T/10BASE-T, for seamless backward compatibility.
Major OS Support
With Intel Based Chipset, It can be apply in most network operating systems, such as Windows, Linux, VMware, FreeBSD, etc.

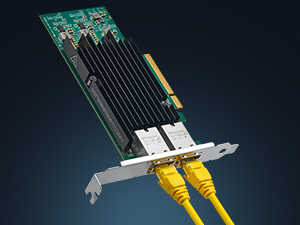

Easy to Migration
Easily upgrade to 10Gbps networking using standard copper network cables, avoiding the need to install costly optical fiber cables.

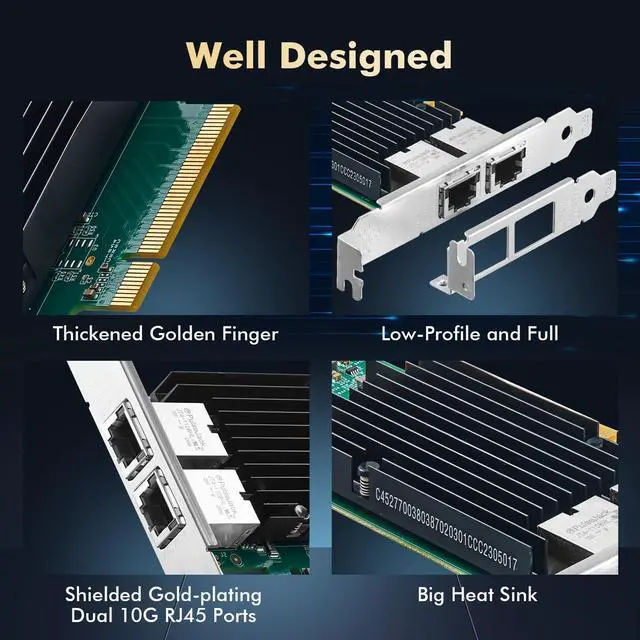

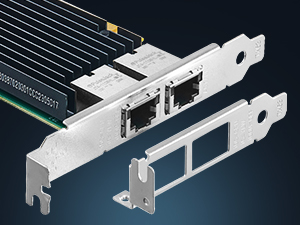

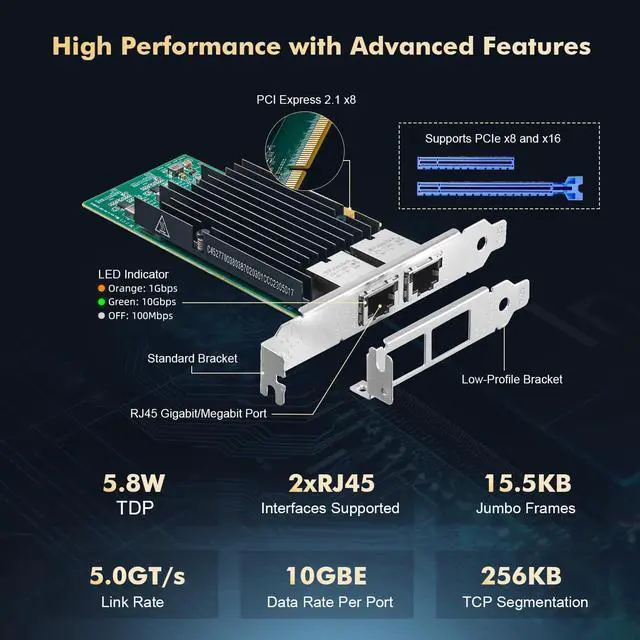

Flexible Low Profile Bracket
In addition to the standard bracket, a low-profile/half-height profile bracket for flexible installation in a wide range of computer, workstations.

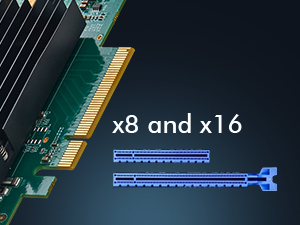

Flexible Deployment
Supports PCI Express Gen2.1 ×8 interface, for most computers and workstation motherboards
QoS for Bandwith Priority
Built-in Quality-of-Service (QoS) technology, lets you prioritize gaming experience for a smooth connection experience.

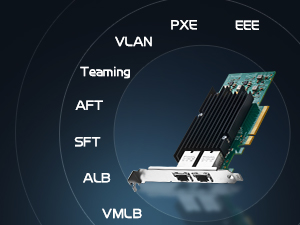

Advanced Features
Supports QoS, VLAN, PXE, Teaming , AFT, SFT, ALB, VMLB for improved network performance, efficiency, reliability and security.
Product Specifications
Network Adapter Comparisons (10G RJ45 VS 2.5G RJ45)
 2-Port 10G (NA10G2T) |  1-Port 10GBase-T(NA10G1T) |  1-Port 2.5GBase-T(NA2G1) |  2-Port 2.5GBase-T(NA2G2) |  4-Port 2.5GBase-T(NA2G4) | |
|---|---|---|---|---|---|
Customer Reviews | — | — | — | — | — |
Price | — | — | — | — | — |
Data Rate/Port | 10G/1G/100M/10M | 10G/5G/2.5G/1G/100M | 2.5G/1G/100M/10M | 2.5G/1G/100M/10M | 2.5G/1G/100M/10M |
Port | 2 x 10G RJ45 | 1 x 10G RJ45 | 1 x 2.5G RJ45 | 2 x 2.5G RJ45 | 2 x 2.5G RJ45 |
Controller | Intel - X540 | AQUANTIA - AQC107 | Realtek – RTL8125B | Realtek – RTL8125BG | Realtek – RTL8125BG |
Interface Type(PCIe) | PCIe 2.1 X8 | PCIe 3.0 X4 | PCIe 2.1 X1 | PCIe 2.1 X1 | PCIe 2.1 X4 |
Operating Systems | Windows/Linux/VMware | Windows/Linux | Windows/Linux/Mac OS | Windows/Linux | Windows/Linux |
Un-supported OS | Mac OS | Mac OS | - | Mac OS | Mac OS |
Jumbo Frames | 15.5Kbytes | 9Kbytes | 16Kbytes | 16Kbytes | 16Kbytes |
Low-Profile Bracket | ? | ? | ? | ? | ? |
Network Adapter Comparisons (10G RJ45 VS 10G SFP+/1G RJ45)
2-Port 10GBase-T(NA10G2T) |  1-Port 10G SFP+(NA10G1S) |  2-Port 10G SFP+(NA10G2S) |  2-Port 1GBase-T(NA1G2) |  4-Port 1GBase-T(NA1G4) | |
|---|---|---|---|---|---|
Customer Reviews | — | — | — | — | — |
Price | — | — | — | — | — |
Data Rate/Port | 10G/1G/100M/10M | 10G/1G | 10G/1G | 1000M/100M/10M | 1000M/100M/10M |
Port | 2 x 10G RJ45 | 1 x 10G SFP+ | 2 x 10G SFP+ | 2x 1G RJ45 | 4x 1G RJ45 |
Controller | Intel - X540 | Intel 82599ES | Intel 82599ES | Intel – 82576EB | Realtek RTL8111H |
Interface Type(PCIe) | PCIe 2.1 X8 | PCIe 2.1 X8 | PCIe 2.1 X8 | PCIe 2.1 X1 | PCIe 1.1 X1 |
Operating Systems | Windows/Linux/VMware | Windows/Linux/VMware | Windows/Linux/VMware | Windows/Linux | Windows/Linux/Mac OS |
Un-supported OS | Mac OS | Mac OS | Mac OS | Mac OS | - |
Jumbo Frames | 15.5Kbytes | 9Kbytes | 9Kbytes | 9.5Kbytes | 9Kbytes |
Low-Profile Bracket | ? | ? | ? | ? | ? |
NA10G2T is a dual-port highperformance network adapter, supporting 4 network speeds: 10GBASE-T/1000BASE-T/100BASE-T/10BASE-T. With a PCI-E Gen2.1 x8 network adapter easily handles the 10GbE line-rate performance.
Lightning-fast 10G Networking
Compliant with the 10GBASE-T specification and the IEEE802.3an standard, upgrade up to 10X-faster data-transfer speeds for bandwidth-demanding tasks.
Compatibility 4 Speed
Support 4 network speeds: 10GBASE-T/1000BASE-T/100BASE-T/10BASE-T, for seamless backward compatibility.
Major OS Support
With Intel Based Chipset, It can be apply in most network operating systems, such as Windows, Linux, VMware, FreeBSD, etc.
Easy to Migration
Easily upgrade to 10Gbps networking using standard copper network cables, avoiding the need to install costly optical fiber cables.
Flexible Low Profile Bracket
In addition to the standard bracket, a low-profile/half-height profile bracket for flexible installation in a wide range of computer, workstations.
Flexible Deployment
Supports PCI Express Gen2.1 ×8 interface, for most computers and workstation motherboards
QoS for Bandwith Priority
Built-in Quality-of-Service (QoS) technology, lets you prioritize gaming experience for a smooth connection experience.
Advanced Features
Supports QoS, VLAN, PXE, Teaming , AFT, SFT, ALB, VMLB for improved network performance, efficiency, reliability and security.
Product Specifications
| Product Name | 10G Base-T Dual-Port PCIe Network Adapter (NA10G2T) |
|---|---|
| Chipset | Intel X540 Ethernet Controller |
| Port number | 2x 10G RJ45 |
| Standard | IEEE802.3, IEEE802.3ad, IEEE802.1q, IEEE802.1p , IEEE802.1Qbb, IEEE802Qaz |
| Data rate | 10/100/1000/10G/Mbps |
| Interface | PCI express 8x |
| LED Indicator | 4 LED (Link/Act) |
| Support OS | Microsoft Windows 7 (IA32 and X64) Microsoft Windows Server 2008 R2 (x64 and IPF) Microsoft Windows Server 2008 R2 Core (x64 and IPF) Microsoft Windows Server 2003 Microsoft Vista Microsoft Windows Virtual Server 2005 Linux SLES 11 SP1 Red Hat Linux Enterprise 4 or later SUSE Linux SLES 10 or later, Professional 9.2 or later Fedora Linux FreeBSD 5.x or later VMware ESX 4.0/4.1, ESXi 5.0 support |
| Environment | Operating Temperature: 0 ?-55 ? Relative Humidity: 10%-90%(non-condensing) Storage Temperature: -0?-80? Relative Humidity: 5%-90%(non-condensing) |
| Other Features | Hardware certifications: FCC B, UL, CE, VCCI, BSMI, CTICK, KCC. Adapter Fault Tolerance (AFT) Switch Fault Tolerance (SFT) Adaptive Load Balancing (ALB) Virtual Machine Load Balancing (VMLB) Teaming support PCIe Hot Plug/Active Peripheral Component Interconnect (PCI) Tx/Rx IP, TCP, & UDP checksum offloading (IPv4, IPv6) capabilities (TCP, UDP, IP). TCP segmentation/large send offload MSI -X supports Multiple Independent Queues Interrupt moderation IPv6 offloading |
Network Adapter Comparisons (10G RJ45 VS 2.5G RJ45)
2-Port 10G (NA10G2T) | 1-Port 10GBase-T(NA10G1T) | 1-Port 2.5GBase-T(NA2G1) | 2-Port 2.5GBase-T(NA2G2) | 4-Port 2.5GBase-T(NA2G4) |
|---|---|---|---|---|
| Customer Reviews | ||||
| — | — | — | — | — |
| Price | ||||
| — | — | — | — | — |
| Data Rate/Port | ||||
| 10G/1G/100M/10M | 10G/5G/2.5G/1G/100M | 2.5G/1G/100M/10M | 2.5G/1G/100M/10M | 2.5G/1G/100M/10M |
| Port | ||||
| 2 x 10G RJ45 | 1 x 10G RJ45 | 1 x 2.5G RJ45 | 2 x 2.5G RJ45 | 2 x 2.5G RJ45 |
| Controller | ||||
| Intel - X540 | AQUANTIA - AQC107 | Realtek – RTL8125B | Realtek – RTL8125BG | Realtek – RTL8125BG |
| Interface Type(PCIe) | ||||
| PCIe 2.1 X8 | PCIe 3.0 X4 | PCIe 2.1 X1 | PCIe 2.1 X1 | PCIe 2.1 X4 |
| Operating Systems | ||||
| Windows/Linux/VMware | Windows/Linux | Windows/Linux/Mac OS | Windows/Linux | Windows/Linux |
| Un-supported OS | ||||
| Mac OS | Mac OS | - | Mac OS | Mac OS |
| Jumbo Frames | ||||
| 15.5Kbytes | 9Kbytes | 16Kbytes | 16Kbytes | 16Kbytes |
| Low-Profile Bracket | ||||
| ? | ? | ? | ? | ? |
Network Adapter Comparisons (10G RJ45 VS 10G SFP+/1G RJ45)
2-Port 10GBase-T(NA10G2T) | 1-Port 10G SFP+(NA10G1S) | 2-Port 10G SFP+(NA10G2S) | 2-Port 1GBase-T(NA1G2) | 4-Port 1GBase-T(NA1G4) |
|---|---|---|---|---|
| Customer Reviews | ||||
| — | — | — | — | — |
| Price | ||||
| — | — | — | — | — |
| Data Rate/Port | ||||
| 10G/1G/100M/10M | 10G/1G | 10G/1G | 1000M/100M/10M | 1000M/100M/10M |
| Port | ||||
| 2 x 10G RJ45 | 1 x 10G SFP+ | 2 x 10G SFP+ | 2x 1G RJ45 | 4x 1G RJ45 |
| Controller | ||||
| Intel - X540 | Intel 82599ES | Intel 82599ES | Intel – 82576EB | Realtek RTL8111H |
| Interface Type(PCIe) | ||||
| PCIe 2.1 X8 | PCIe 2.1 X8 | PCIe 2.1 X8 | PCIe 2.1 X1 | PCIe 1.1 X1 |
| Operating Systems | ||||
| Windows/Linux/VMware | Windows/Linux/VMware | Windows/Linux/VMware | Windows/Linux | Windows/Linux/Mac OS |
| Un-supported OS | ||||
| Mac OS | Mac OS | Mac OS | Mac OS | - |
| Jumbo Frames | ||||
| 15.5Kbytes | 9Kbytes | 9Kbytes | 9.5Kbytes | 9Kbytes |
| Low-Profile Bracket | ||||
| ? | ? | ? | ? | ? |
