$42.99
Ships from China.
Meet Your Seller

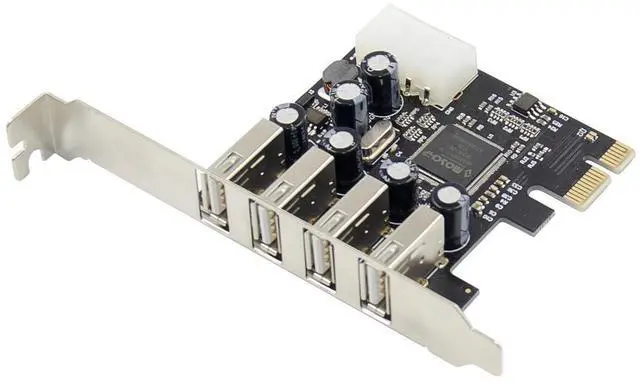

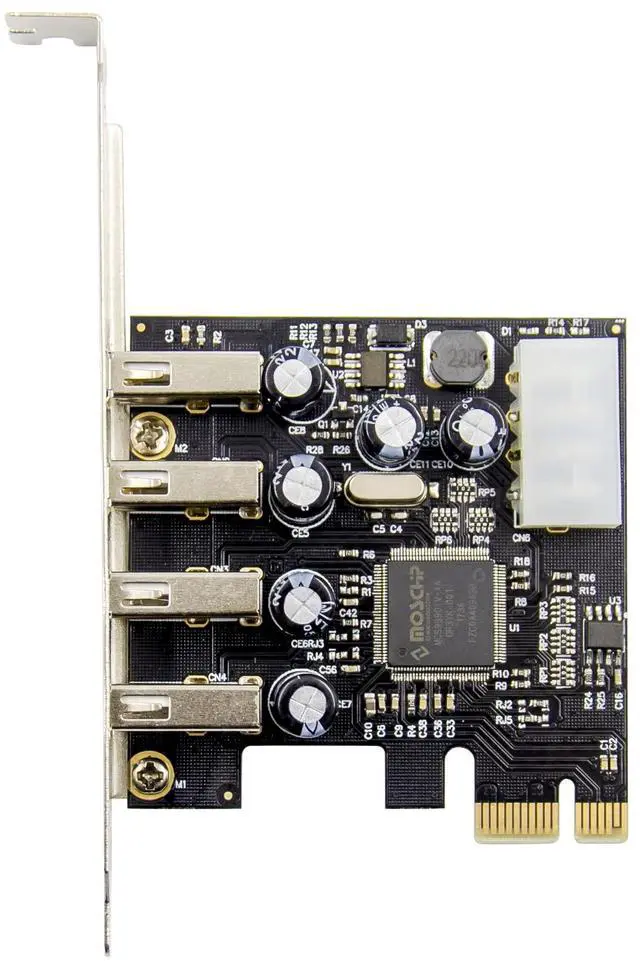

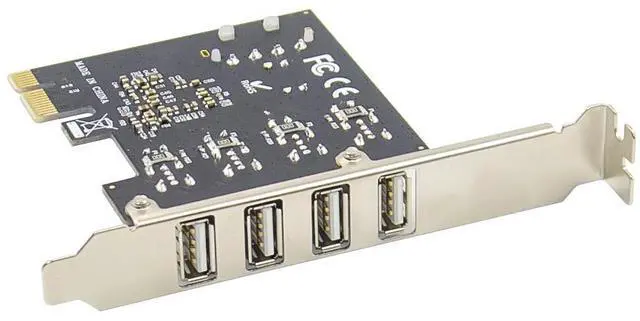

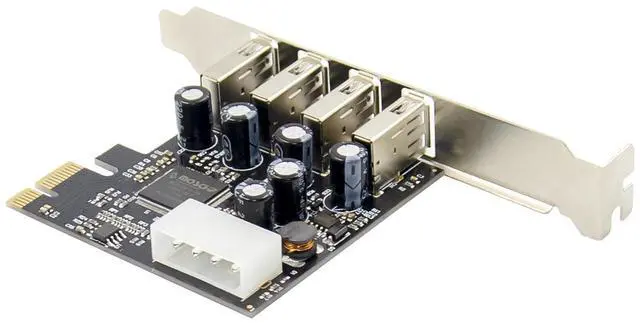

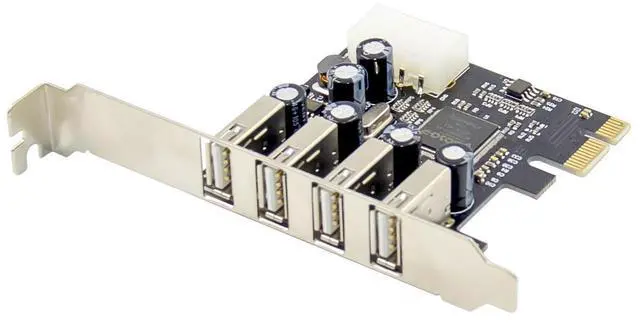

JVFYI PCIe x1 MCS9990 4-Port USB 2.0 Card
- Compliant with Universal Serial Bus Specification Revision 2.0
- Compliant with Open Host Controller Interface Specification for USB Rev 1.0a
- Compliant with Enhanced Host Controller Interface Specification for USB Rev.1.0
- Root hub with 5(max)downstream facing ports which are shared by OHCI and EHCI host controller cores
- 32-bit 33MHz host interface compliant to PCI Specification R2.2
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
All downstream facing ports can handle high-speed(480Mbps).full-speed(12Mbps).and low-speed(1.5Mbps) transaction.
Supports PCI-Bus Power Management Interface Specification release 1.1
External 4xUSB
Supports OS: Windows 98se/me/2000/sever 2003/Vista/sever 2007/Win7/win8.linux. Mac
Bus Interface
PCI Express
Connectors
4xUSB
System Requirements
Windows 98se/me/2000/sever 2003/Vista/sever 2007/Win7/win8.linux.Mac
Package Contents
1x PCIe USB 4 Port Card
1x Manual
Optional Accessorie
1x Driver CD
1x USER Manual
Hardware Installation
1.Turn Off the power to your computer.
2.Unplug the power cord and remove your computers cover.
3.Remove the slot bracket from an available PCI slot.
4.To install the card, carefully align the cards bus connector with the selected PCI slot on the motherboard. Push the board down firmly.
5.Connect the system power source to the boards power connector.
6.Replace the slot brackets holding screw to secure the card.
7.Replace the computer cover and reconnect the power cord.
Driver Installation
No driver is required for this product.
Windows® 2000/XP/2003/Vista /Win7 will automatically detect and install the correct driver for the USB 4+1PORT PCI Card.
