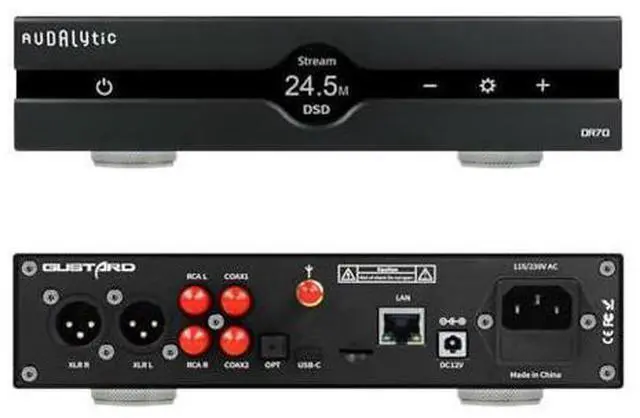

Gustard Audalytic DR70 R2R DAC | Native 1-Bit DSD DSD512 PCM768kHz | USB, Optical, Coaxial x2, LAN Input | Fully Discrete Balanced Digital-Analog Converter | Home Audio Network Streaming (Black)

Be the first to review this product...

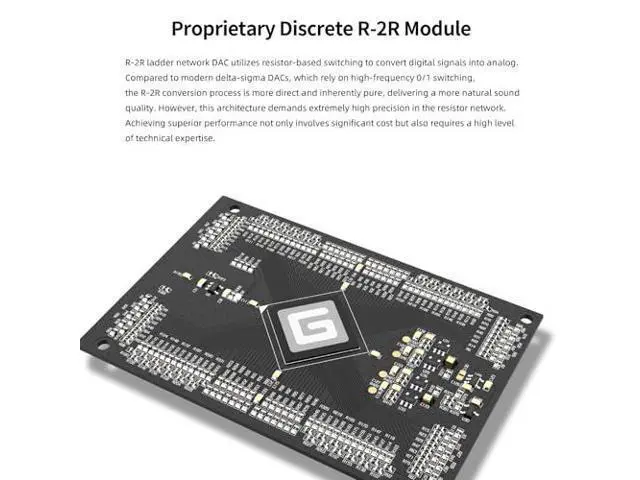

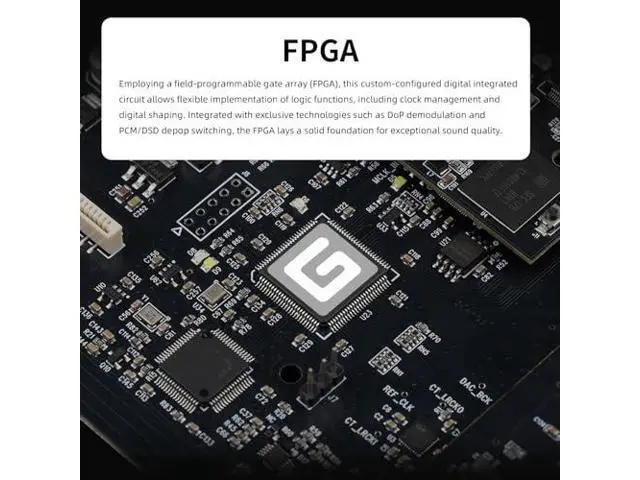

The Audalytic DR70 R-2R DAC is equipped with a proprietary discrete R-2R module. It converts digital signals to analog signals through resistor switching technology. Unlike modern Delta-Sigma DACs, its R-2R conversion process is direct, delivering a more natural and pure sound quality.; The DR70 features true 1-bit DSD DAC conversion, natively supporting up to DSD512. In DIRECT DSD mode, the signal bypasses PCM conversion entirely and is directly converted to analog, preserving the full dynamic range and details of the original audio. The data density is 512 times that of CD format.; Equipped with customized FPGA technology, the DR70 DAC can flexibly manage clock functions and shape digital signals. It integrates digital native demodulation (DoP) and PCM/DSD decoding switching technology, providing robust support for the R2R architecture and high-spec decoding, ensuring exceptional audio quality.; The DR70 uses the CK01 clock to provide femtosecond-level timing accuracy. The Coax and O

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Digital Input Coax/Opt: PCM 16-24bit/ 44.1 -192kHz;
DSD DoP64 USB/Streamer: PCM 16-32bit/ 44.1 -768kHz; DSD DoP64-DoP256;
Native DSD: DSD64-DSD512 Analog
Output Frequency Response: 20Hz-20kHz(± 0.2 dB, OS Mode)
Dynamic Range: >111dB
Signal-to-Noise Ratio: >113dB
Channel Crosstalk: -125dB @ 1kHz
THD+N: < 0.004 % @ 1kHz
IMD: ~ 0.009 % @ -2dBFS RCA
Output Level: 2Vrms (Fixed) RCA
Output Impedance: 100 XLR
Output Level: 4Vrms (Fixed) XLR
Output Impedance: 100 Others
Power Supply: AC 115V/230V, 50/60Hz
Power Consumption: <10W
Dimensions (WxDxH): 220 × 170 x 50 mm (excluding protrusions)
Net Weight: 1.5 kg
Package Dimensions: 295x 265 x 85 mm
Shipping Weight: 2.0 kg
Accessories: USB cable, Power cord, Warranty card, DAC, Remote
