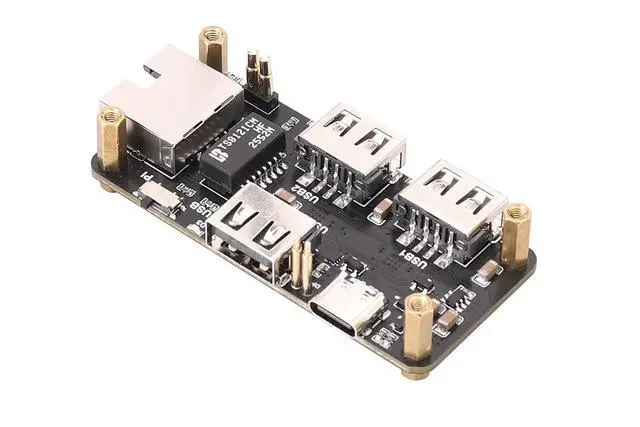

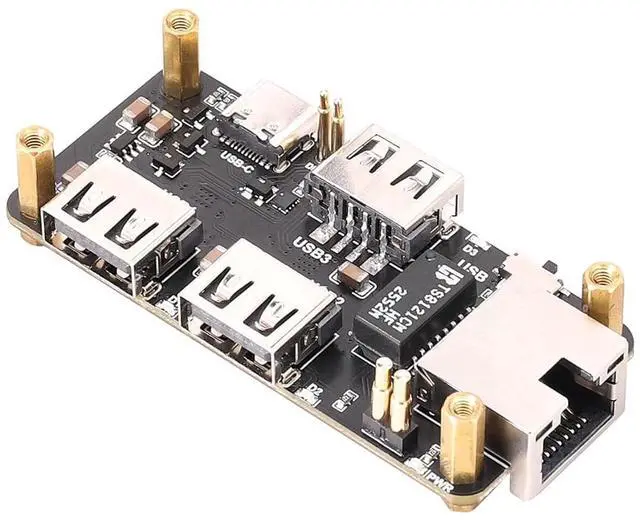

USB Hub Ethernet HAT for Raspberry Pi Zero, 3-Port USB 2.0 Hub + RJ45 10/100M Ethernet Adapter, Type-C Power/USB Upstream Switchable, Compact Expansion Board with Status LEDs

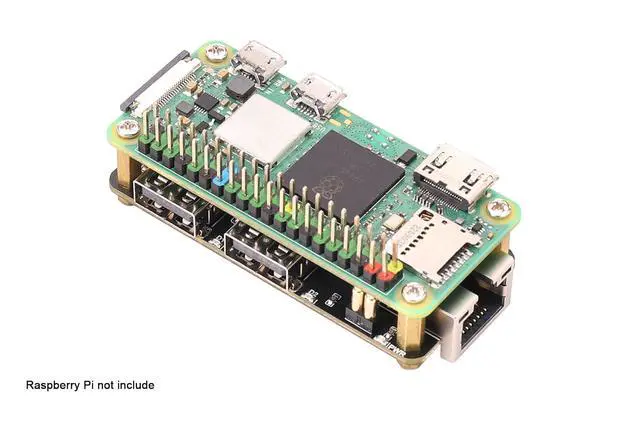

Overview This USB Hub Ethernet HAT for Raspberry Pi series combines a 3-port USB 2.0 hub and an RJ45 10/100M Ethernet adapter into one compact expansion board. It is designed for for Raspberry Pi Zero and also supports for other Raspberry Pi series boards that use the standard GPIO header, delivering strong expansion capability with easy installation and clean wiring. The board provides three USB 2.0 Type-A ports, allowing you to connect multiple peripherals such as keyboards, mice, flash drives, cameras, controllers, and other USB devices. It also adds a dedicated RJ45 10/100M wired Ethernet port, offering stable LAN access for everyday applications and networked peripheral needs.

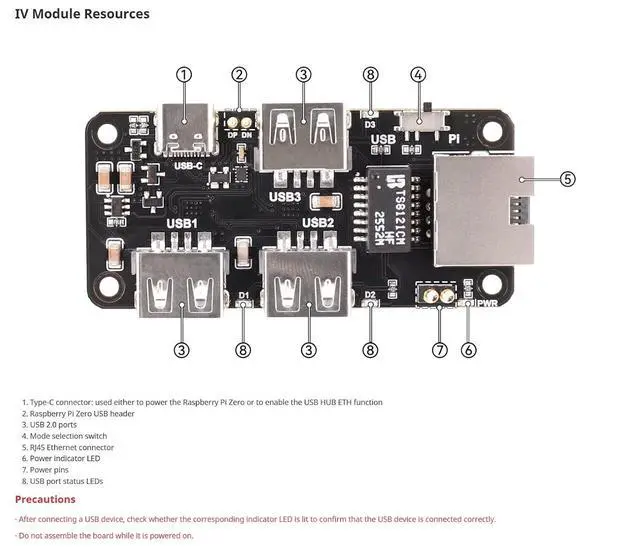

For flexible usage, an onboard slide switch allows fast USB upstream source selection, making it easy to switch modes in different scenarios. The USB Type-C port supports two practical options: connect a power adapter to supply power for Raspberry Pi, or connect to a computer to provide USB expansion and USB-to-Ethernet adapter functions. Status is easy to monitor with the onboard power LED plus three USB status LEDs, so you can confirm operation at a glance. Whether youre building a compact network node, USB peripheral hub, or wired-connected for Raspberry Pi project, this USB hub + Ethernet HAT provides a reliable wired solution in a small footprint. Package Contents 1. USB HUB ETH HAT (U3E100) Module X1 2. M 2.5 3 mm female-female brass standoff × 4 3. M 2.5 10+4 mm brass standoff × 4 4. M 2.5 screws × 4
