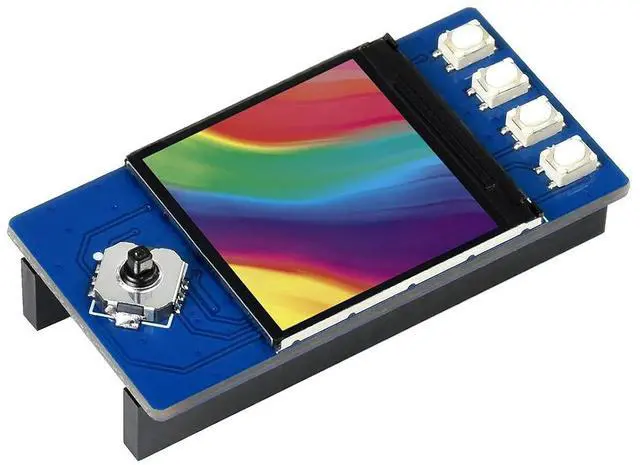

1.3 inch LCD Display for Raspberry Pi Pico, IPS Screen Display Module, 65K RGB Colors, 240x240 Pixels, Embedded ST7789 Driver Chip, Using SPI Bus, Compatible with Raspberry Pi Pico Header

1.1. 3" LCD Display Module For Raspberry Pi Pico Embedded ST7789 Driver, Using SPI Bus Comes with Raspberry Pi Pico C/C++ and MicroPython Demo 2. Raspberry Pi Pico Header Compatibility Onboard Female Pin Header For Direct Attaching To Raspberry Pi Pico 1x Joystick And 4x User Buttons For Easy Interacting

Specifications

Operating voltage: 2.6 ~ 5.5V
Resolution: 240×240 pixels
Communication interface: 4-wire SPI
Display size: 23.40 × 23.40 mm
Display panel: IPS
Pixel size: 0.0975 × 0.0975 mm
Driver: ST7789 Dimensions 52.00 × 26.50 mm LCD and the controller The ST7789VW is a single-chip controller/driver for 262K-color, graphic type TFT-LCD. It consists of 240 source line and 320 gate line driving circuits. The resolution of this LCD is 240 (H) RGB x 240 (V), it supports horizontal mode and vertical mode, and it doesn't use all the RAM of the controller. This LCD accepts 8-bits/9-bits/16-bits/18-bits parallel interface, that are RGB444, RGB565, RGB666. The color format used in demo codes is RGB565. This LCD uses a 4-line SPI interface for reducing GPIO and fast speed. LCD Package Content Pico-LCD- 1.3 x1 Note Raspberry Pi Pico is NOT included. Development Resources is provided, please contact us if you have any problem.
