Nano Base Board (B) for Raspberry Pi Compute Module 4, Same Size as CM4, with Standard CM4 Socket, Raspberry Pi 40PIN GPIO, Gigabit Ethernet, USB2.0, DSI, CSI, HDMI, 3.5mm Audio Jack etc.

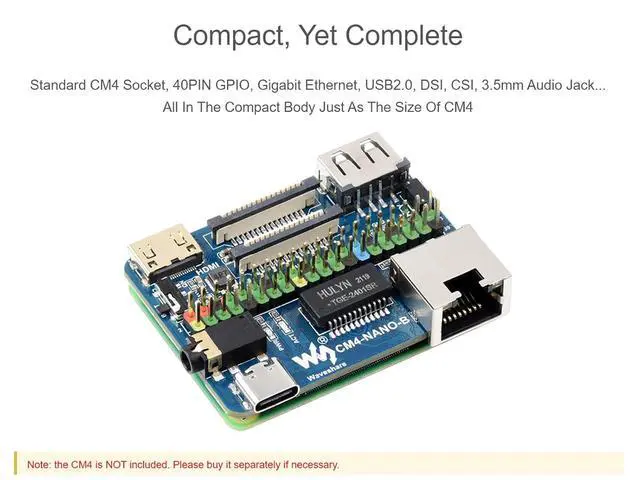

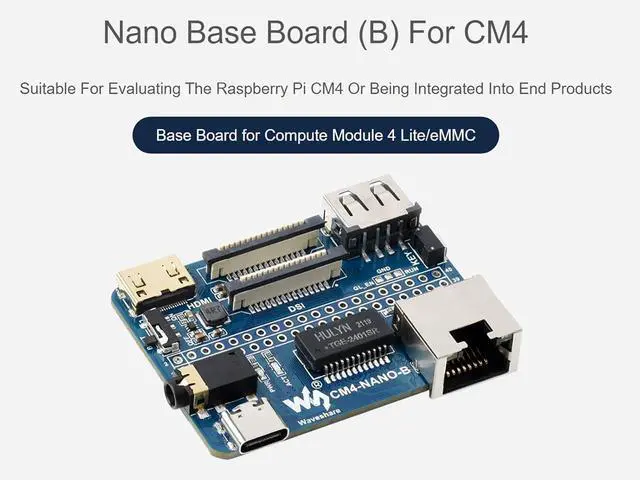

Nano Base Board (B) For Raspberry Pi Compute Module 4, Same Size As The CM4 1. Nano Base Board (B) For CM4 Suitable For Evaluating The Raspberry Pi CM4 Or Being Integrated Into End Products Base Board for Compute Module 4 Lite/eMMC 2. Compact, Yet Complete Standard CM4 Socket, 40PIN GPIO, Gigabit Ethernet, USB 2.0, DSI, CSI, 3.5 mm Audio Jack... All In The Compact Body Just As The Size Of CM4

Specifications

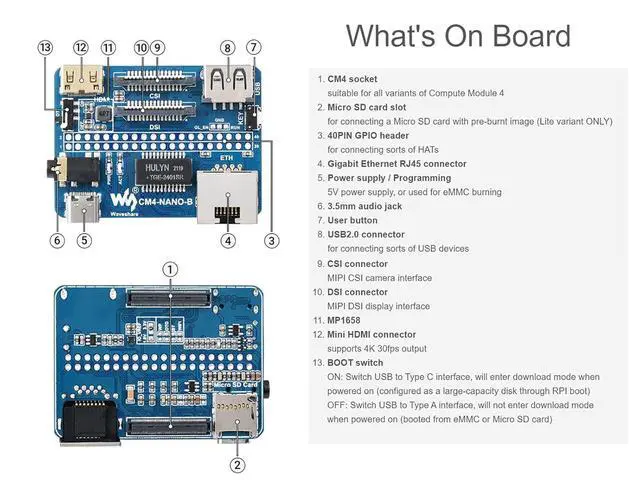

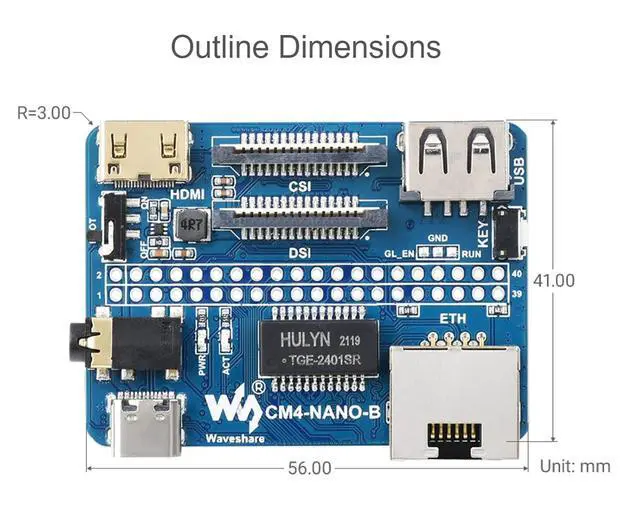

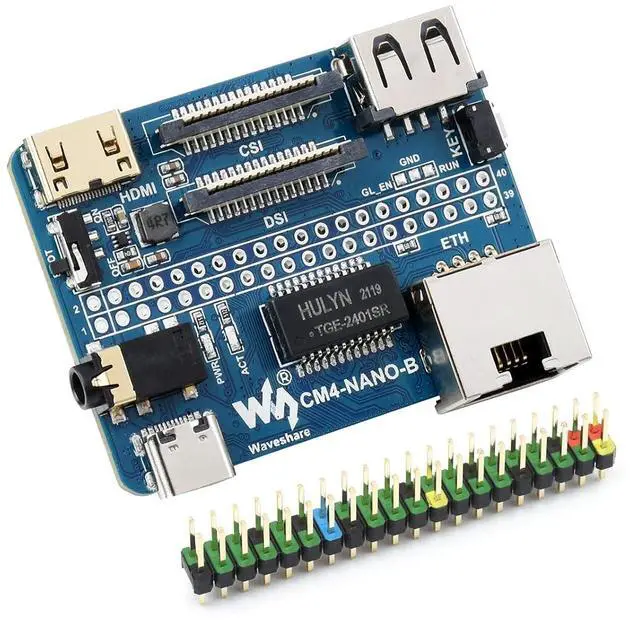

CM4 SOCKET---suitable for all variants of Compute Module 4 NETWORKING---Gigabit Ethernet RJ45 connector CONNECTOR---Raspberry Pi 40PIN GPIO header × 1 USB---USB 2.0 Type A connector × 1 DISPLAY---MIPI DSI port × 1 (15pin 1.0 mm FPC connector) CAMERA---MIPI CSI-2 port × 1 (15pin 1.0 mm FPC connector) VIDEO---Mini HDMI port × 1, supports 4K 30fps output AUDIO--- 3.5 mm jack STORAGE---Micro SD card socket for Compute Module 4 Lite (without eMMC) variants POWER INPUT---5V DIMENSIONS---56 × 41mm Package Content CM4-NANO-B x1 2*20PIN color-coded straight pinheader x1 Note 1.

Development Resources is provided, please contact us if you have any problem. 2. the Compute Module 4 in the photo is NOT included.
