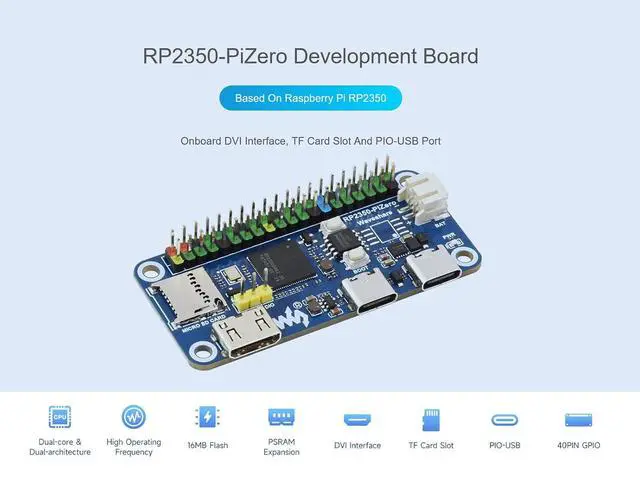

RP2350-PiZero Microcontroller Development Board Based on Raspberry Pi RP2350, Onboard DVI Interface, TF Card Slot and PIO-USB Port, Compatible with Raspberry Pi 40PIN GPIO Header, 16MB Flash

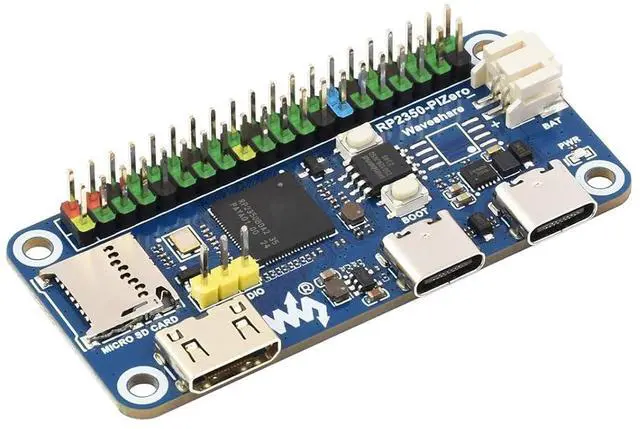

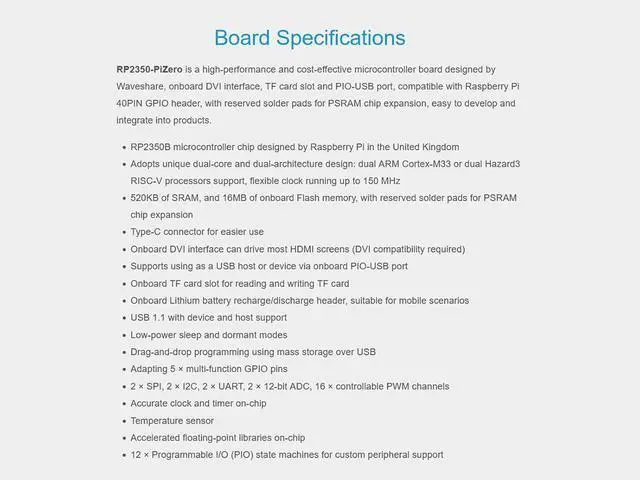

Overview RP2350-PiZero is a high-performance and cost-effective microcontroller board designed by Waveshare, onboard DVI interface, TF card slot and PIO-USB port, compatible with Raspberry Pi 40PIN GPIO header, with reserved solder pads for PSRAM chip expansion, easy to develop and integrate into products. Board specifications RP2350B microcontroller chip designed by Raspberry Pi in the United Kingdom Adopts unique dual-core and dual-architecture design: dual ARM Cortex-M33 or dual Hazard3 RISC-V processors support, flexible clock running up to 150 MHz 520KB of S-R-A-M, and 16MB of onboard Flash memory, with reserved solder pads for PSRAM chip expansion Type-C connector for easier use Onboard DVI interface can drive most HDMI screens (DVI compatibility required) Supports using as a USB host or device via onboard PIO-USB port Onboard TF card slot for reading and writing TF card Onboard Lithium battery recharge/discharge header, suitable for mobile scenarios USB 1.1 with device and host support Low-power sleep and dormant modes Drag-and-drop programming using mass storage over USB Adapting 5 × multi-function GPIO pins 2 × SPI, 2 × I2C, 2 × UART, 2 × 12-bit ADC, 16 × controllable PWM channels Accurate clock and timer on-chip Temperature sensor Accelerated floating-point libraries on-chip 12 × Programmable I/O (PIO) state machines for custom peripheral support Package Content RP2350-PiZero x1
NOTE: Online Development Resources and Technical Support are provided, please feel free to contact us if you have any problem!
