CM5 to Pi 5 Adapter Board Designed for Rasp Pi Compute Module 5, Alternative Solution for Raspberry Pi 5, Onboard ETH, USB, MIPI, HDMI, Audio Header, etc. Support Connecting to Microphone

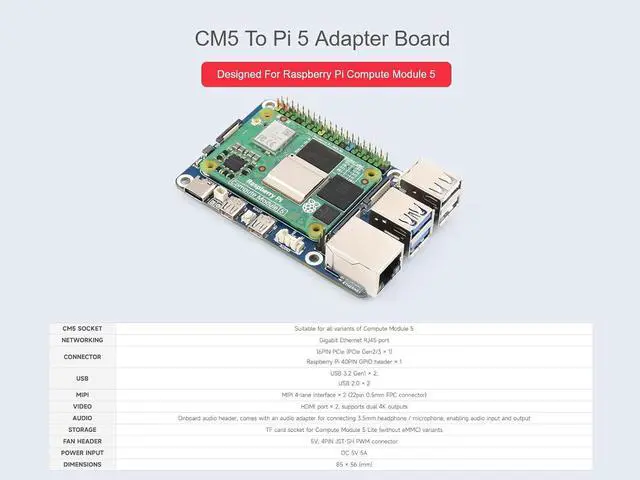

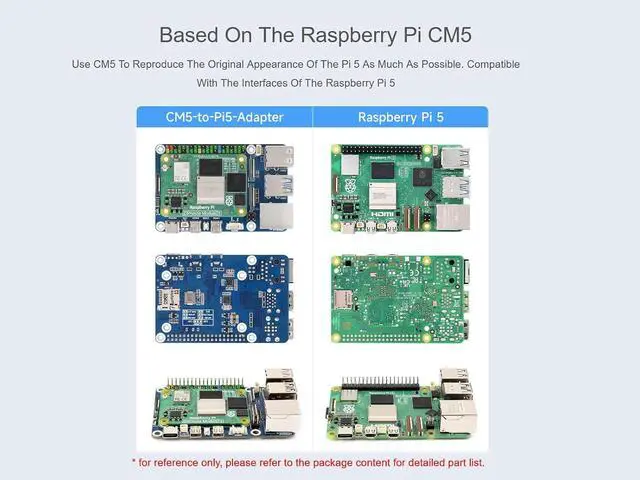

Overview CM5-to-Pi5-Adapter is a baseboard that can be used with Raspberry Pi Compute Module 5. With powerful features are integrated into a compact design, it is only the size of a bank card.

Specifications

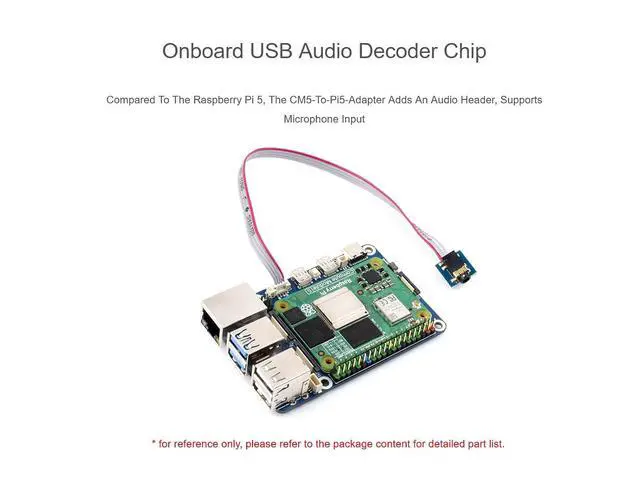

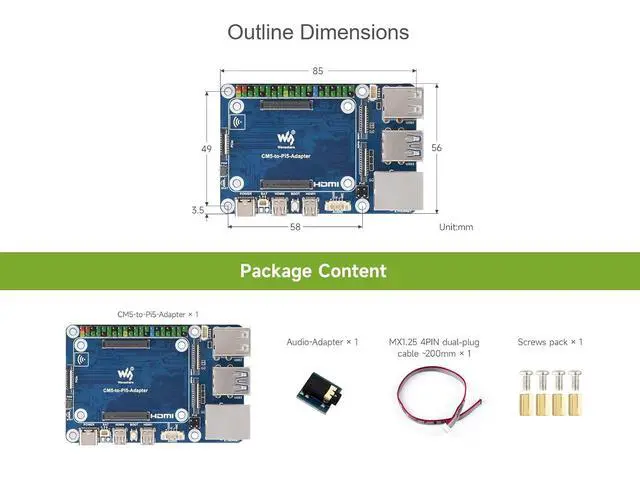

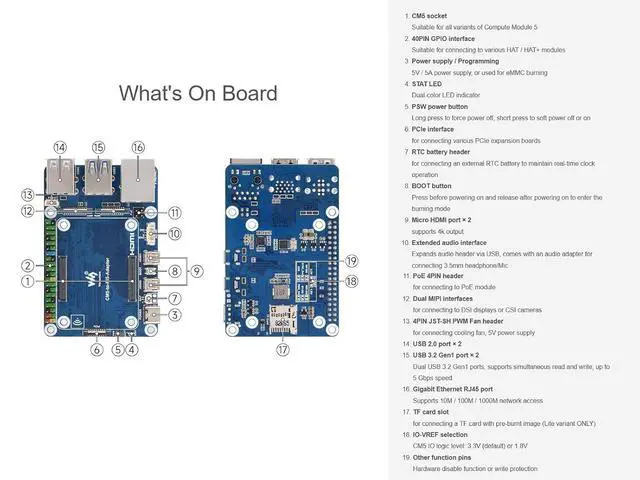

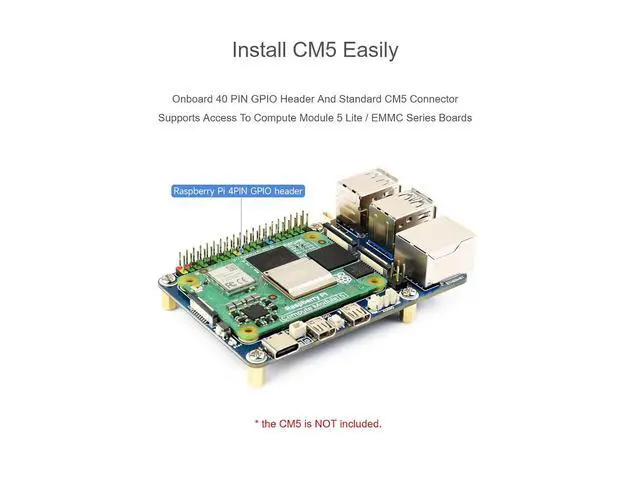

CM5 socket---Suitable for all variants of Compute Module 5 Networking---Gigabit Ethernet RJ45 port Connector ---16PIN PCIe (PCIe Gen2/3 × 1) ---Pi 40PIN GPIO header × 1 USB ---USB 3.2 Gen1 × 2; ---USB 2.0 × 2 MIPI---MIPI 4-lane interface × 2 (22pin 0.5 mm FPC connector) Video---HDMI port × 2, supports dual 4K outputs Audio---Onboard audio header, comes with an audio adapter for connecting 3.5 mm headphone / microphone, enabling audio input and output Storage---TF card socket for Compute Module 5 Lite (without eMMC) variants Fan Header---5V, 4PIN JST-SH PWM connector Power input---DC 5V 5A Dimensions---85 × 56 (mm) Precautions 1.

Do not plug or unplug any device other than USB and HDMI when the device is powered on 2. Type C can be used as a USB SLAVE interface to flash images. 3. Onboard default 2 USB 3.2 Gen1 port 4. Supports 4 screens to display different contents, adds MIPI DSI driver, regardless of whether a screen is connected, the system will default to connect, the screen will display in split-screen mode (related to the system version) 5. The onboard BOOT button, you can press the BOOT button before powering on, and connect to the computer through Type C to let the device enter the flashing mode.

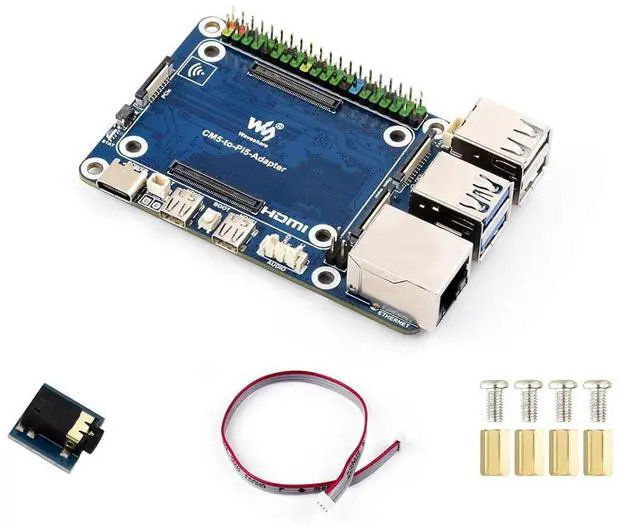

Do not connect other devices when using Type C for flashing. 6. The USB 2.0 ports have a total maximum power output of 2A, and the USB 3.0 ports have a total maximum power output of 2A Package Content CM5-to-Pi5-Adapter × 1 Audio-Adapter × 1 MX 1.25 4PIN dual-plug cable ~200mm × 1 Screws pack × 1
NOTE: Online Development Resources and Technical Support are provided, feel free to contact us if you have any problem!
