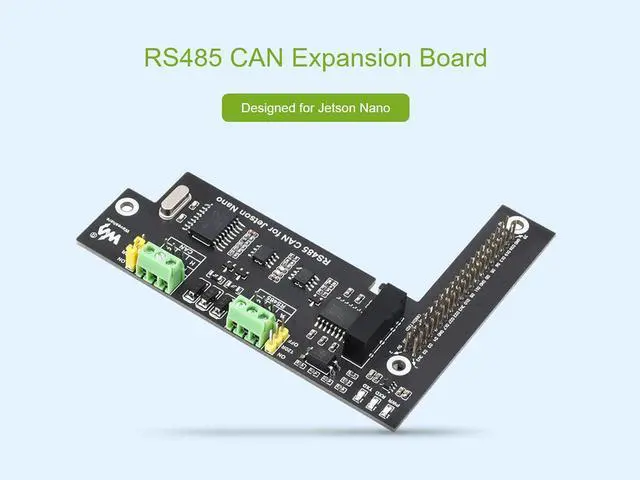

RS485 CAN Expansion Board for Jetson Nano, Onboard CAN Controller MCP2515 and RS485 Transceiver SP3485, Digital Isolation Circuit Design, Built-in Protection Circuit, Safer Communication
Limited time offer, ends 07/19 By EmpressTech
- Designed for Jetson NanoRS485 CAN expansion board with standard 40PIN GPIO extension header, supports direct attaching to Jetson Nano, 3.3V operating voltage, dimension 100 × 79mm; RS485 FunctionOnboard transceiver SP3485, controlled via UART, half-duplex communication, supports automatic TX/RX control without programming; CAN FunctionOnboard CAN controller MCP2515 via SPI interface, matching with SIT65HVD230DR transceiver; Onboard TVSOnboard transient voltage suppressor, effectively suppress surge voltage and transient spike voltage in the circuit for RS485 transceiving, lightningproof & anti-electrostatic; Stable & Safer CommunicationIsolation circuit design, onboard digital isolation chip, safer signal isolation communication and better stability and anti-interference. Reserved control pins, allows to work with other control boards
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Overview RS485 CAN Expansion Board Designed For Jetson Nano, Digital Isolation, Built-in Protection Circuit, Safer Communication Features

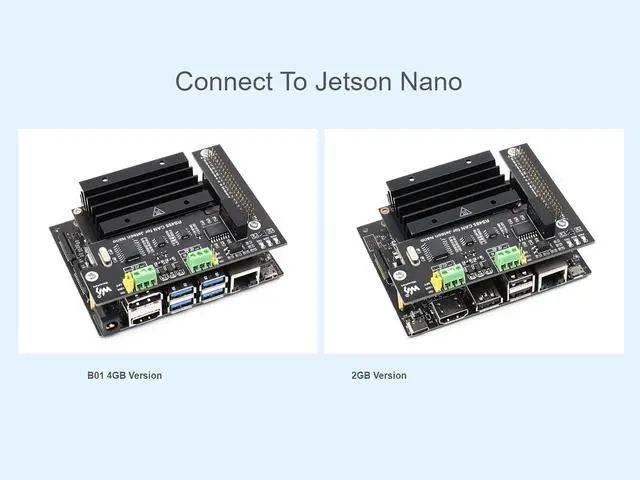

1. Standard 40PIN GPIO extension header, supports direct attaching to Jetson Nano

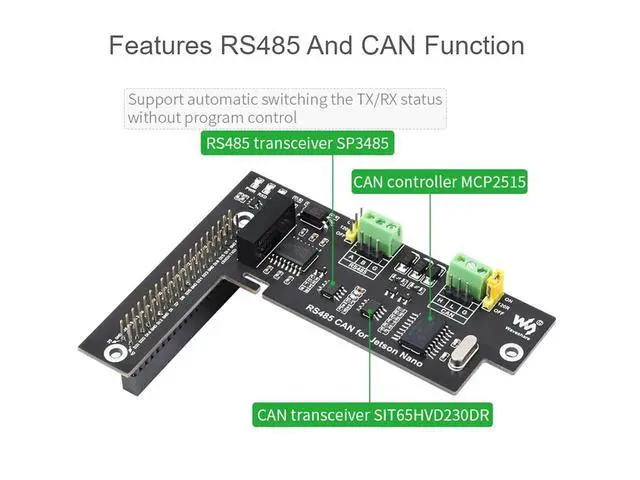

2. Onboard CAN controller MCP2515 via SPI interface, matching with SIT65HVD230DR transceiver
3. Features RS485 function, controlled via UART, half-duplex communication, supports automatic TX/RX control without programming, onboard transceiver SP3485

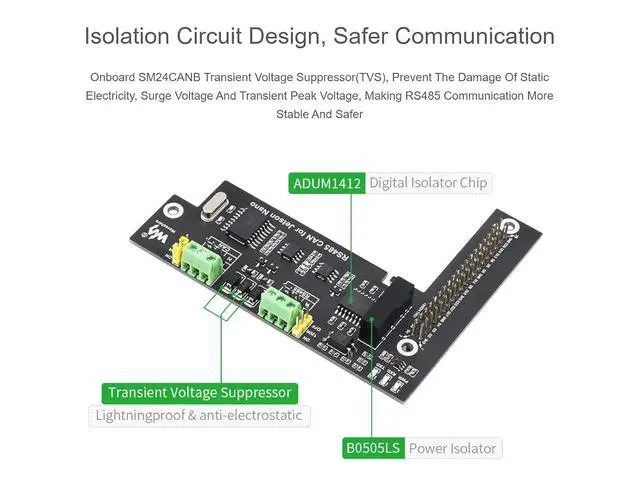

4. Onboard TVS (Transient Voltage Suppressor), effectively suppresses surge voltage and transient spike voltage in the circuit for RS485 transceiving, lightning proof & anti-electrostatic
5. Onboard digital isolation chip, safer signal isolation communication, and better stability and anti-interference
6. Reserved control pins, allows working with other control boards 7. Development Resources and Technical Support are provided, please feel free to contact us if you have any problem!

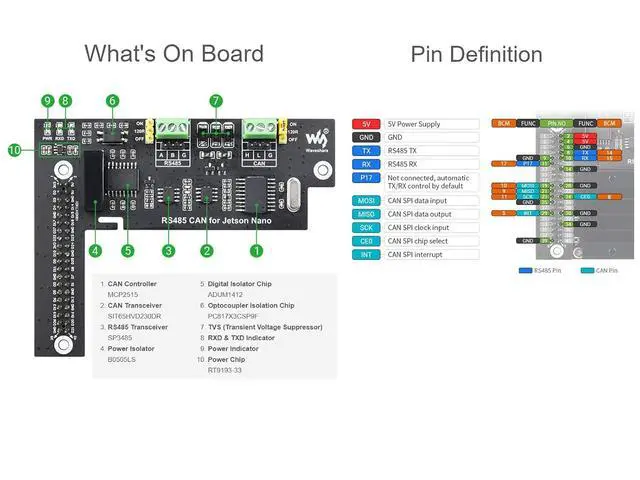

Specification CAN Controller: MCP2515
CAN Transceiver: SIT65HVD230DR
RS485 Transceiver: SP3485
Operating Voltage: 3.3V
Mounting hole size: 3.0 mm

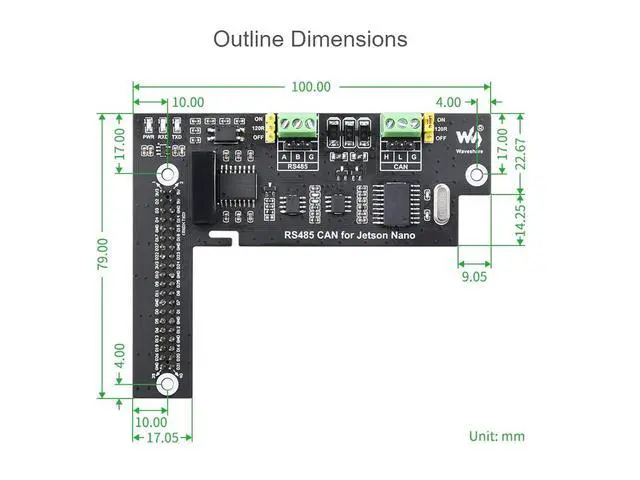

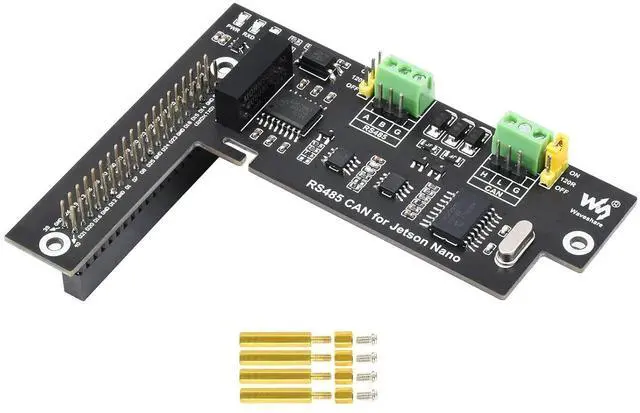

Dimension: 100 × 79mm Package Content RS485 CAN for Jetson Nano x1 Screws pack x1
1. Standard 40PIN GPIO extension header, supports direct attaching to Jetson Nano
2. Onboard CAN controller MCP2515 via SPI interface, matching with SIT65HVD230DR transceiver
3. Features RS485 function, controlled via UART, half-duplex communication, supports automatic TX/RX control without programming, onboard transceiver SP3485
4. Onboard TVS (Transient Voltage Suppressor), effectively suppresses surge voltage and transient spike voltage in the circuit for RS485 transceiving, lightning proof & anti-electrostatic
5. Onboard digital isolation chip, safer signal isolation communication, and better stability and anti-interference
6. Reserved control pins, allows working with other control boards 7. Development Resources and Technical Support are provided, please feel free to contact us if you have any problem!
Specification CAN Controller: MCP2515
CAN Transceiver: SIT65HVD230DR
RS485 Transceiver: SP3485
Operating Voltage: 3.3V
Mounting hole size: 3.0 mm
Dimension: 100 × 79mm Package Content RS485 CAN for Jetson Nano x1 Screws pack x1
