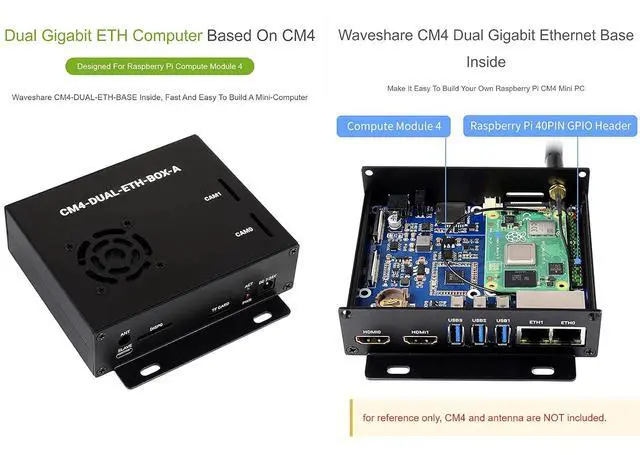

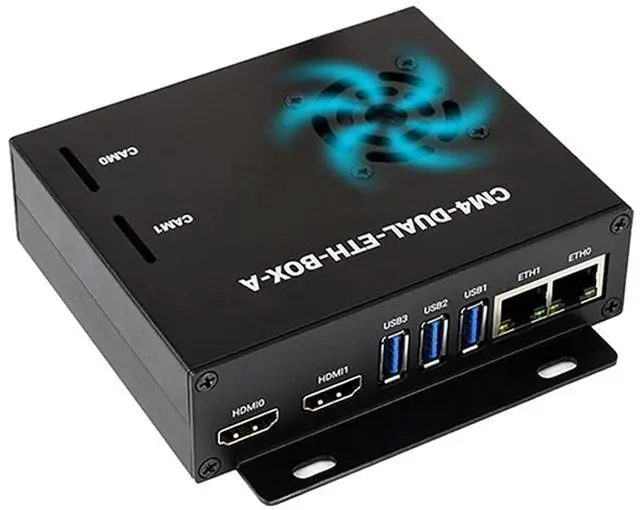

Dual Gigabit Ethernet Mini-Computer Based on Raspberry Pi Compute Module 4 (NOT Included), CM4 Dual ETH Base Inside, Metal Case, with Cooling Fan, Fast and Easy to Build a CM4 Mini PC

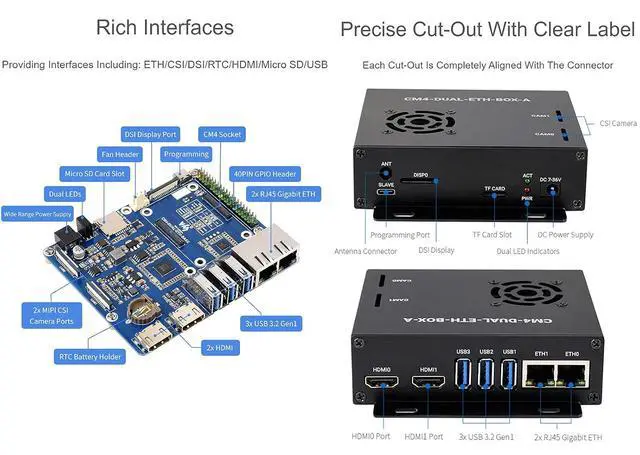

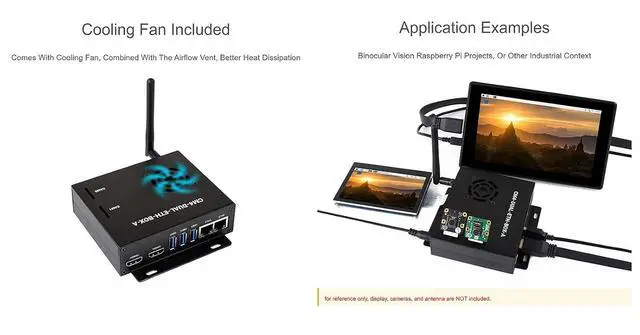

- Dual Gigabit ETH Computer Based On CM4Waveshare CM4-DUAL-ETH-BASE Board inside, designed for Raspberry Pi CM4, powerful ethernet capability, standard CM4 socket and color-coded Raspberry Pi 40PIN GPIO header, suitable for evaluating the Raspberry Pi CM4 or being integrated into end products; Rich InterfacesProviding interfaces including: ETH/CSI/DSI/RTC/HDMI/Micro SD/USB; Precise Cut-Out with Clear LabelEach cut-out is completely aligned with the connector; Cooling Fan IncludedComes with cooling fan, combined with the airflow vent, better heat dissipation; Wall Mount SupportWall mount holes on two sides, handy for mounting
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Overview Dual Gigabit ETH Computer Based On Raspberry Pi CM4 (NOT Included), Designed For Raspberry Pi CM4, Waveshare CM4 Dual Gigabit Ethernet Base Inside, Metal Case, with Cooling Fan, Make It Easy To Build Your Own Raspberry Pi CM4 Mini PC CM4-DUAL-ETH-BASE
CM4 SOCKET: suitable for all variants of Compute Module 4 2.
ETHERNET: Dual Gigabit Ethernet RJ45 3.
USB: USB 3.2 Gen1 × 3 4.
PIN HEADER: 40PIN GPIO header × 1 5.
HDMI: HDMI × 2, supports 4K 30fps output 6.
DSI DISPLAY: MIPI DSI display port × 1, 15pin 1.0 mm FPC connector 7.
CSI CAMERA: MIPI CSI-2 camera port × 2, 15pin 1.0 mm FPC connector 8.
POWER INPUT: 7V-36V 9.
FAN: 5V/12V, allows speed adjustment and measurement 10.
RTC: Real-time clock with battery socket and ability to wake Compute Module 4 11.
SD CARD SLOT: MicroSD card socket for Compute Module 4 Lite (without eMMC) variants 12.

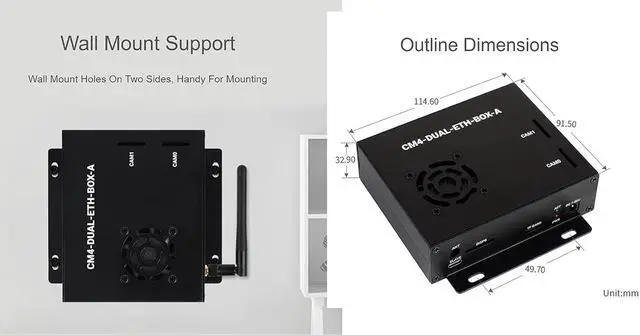

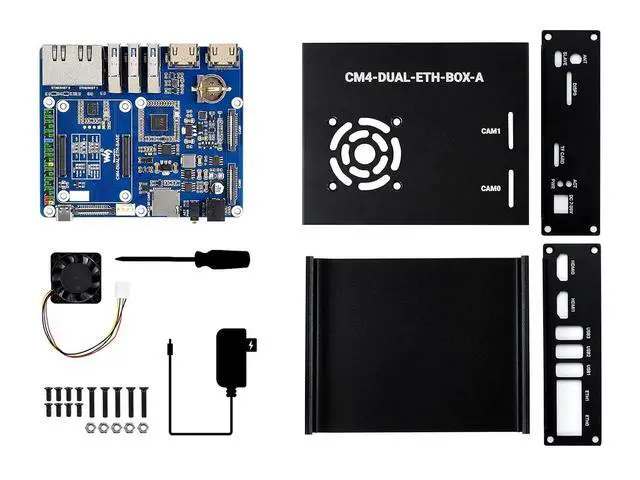

DIMENSIONS (MM): 109.0 × 91.5 Package content 1. CM4-DUAL-ETH-BASE x1
2. Metal case (top and bottom) x1
3. Fan-4010-PWM-12V x1
4. Screwdriver x1
5. Screws pack x1 6. 12V 2A power adapter x1 Note Development Resources and Technical Support are provided, please feel free to contact us if you have any problem!
Specifications
1.CM4 SOCKET: suitable for all variants of Compute Module 4 2.
ETHERNET: Dual Gigabit Ethernet RJ45 3.
USB: USB 3.2 Gen1 × 3 4.
PIN HEADER: 40PIN GPIO header × 1 5.
HDMI: HDMI × 2, supports 4K 30fps output 6.
DSI DISPLAY: MIPI DSI display port × 1, 15pin 1.0 mm FPC connector 7.
CSI CAMERA: MIPI CSI-2 camera port × 2, 15pin 1.0 mm FPC connector 8.
POWER INPUT: 7V-36V 9.
FAN: 5V/12V, allows speed adjustment and measurement 10.
RTC: Real-time clock with battery socket and ability to wake Compute Module 4 11.
SD CARD SLOT: MicroSD card socket for Compute Module 4 Lite (without eMMC) variants 12.
DIMENSIONS (MM): 109.0 × 91.5 Package content 1. CM4-DUAL-ETH-BASE x1
2. Metal case (top and bottom) x1
3. Fan-4010-PWM-12V x1
4. Screwdriver x1
5. Screws pack x1 6. 12V 2A power adapter x1 Note Development Resources and Technical Support are provided, please feel free to contact us if you have any problem!
