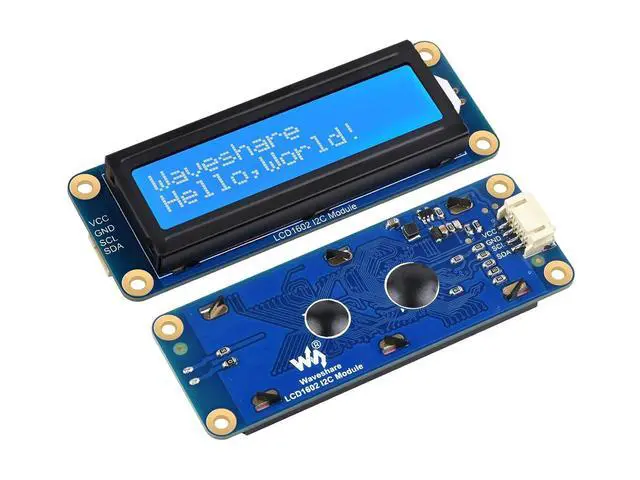

1602 LCD I2C Display Module, White Color with Blue Background 16x2 Characters LCD für Raspberry Pi/Raspberry Pi Pico/Jetson Nano/ESP32/Arduino, 3.3V/5V Compatible
Limited time offer, ends 07/19 By EmpressTech
- IIC 1602 LCD module incorporates character LCD panel LCD1602, I2C interface, only two cables can be directly controlled, easy to access a variety of control boards; 16x2 characters LCD, support screen scrolling, cursor movement, and other functions, compact body with the dimensions of 87 * 32 * 13 mm; Compatible with 3.3V/5V operating voltage; Onboard AiP31068L LCD driver chip; Comes with online development resources and manual (for Raspberry Pi/Jetson Nano/ESP32/Arduino examples)
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

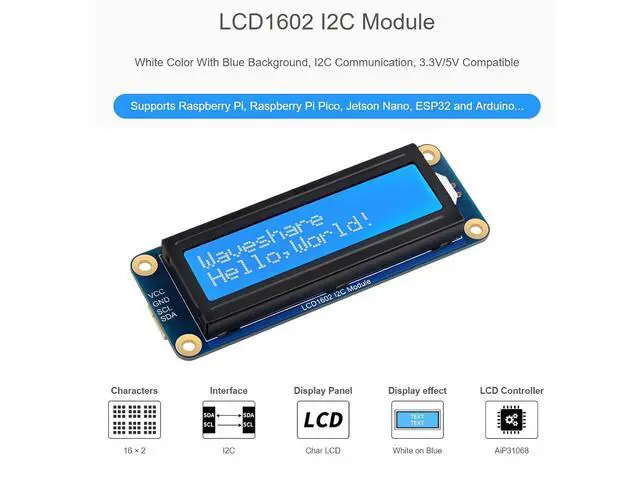

Overview LCD1602 I2C Module, 16x2 characters LCD, 3.3V /5V, White color with blue background, I2C communication, 3.3V /5V compatible, Supports Raspberry Pi, Raspberry Pi Pico, Jetson Nano, ESP32 and Arduino... Features
1. Incorporates character LCD panel LCD1602, compatible with 3.3V /5V operating voltage 2. I2C control interface, only two signal pins are required, saving the IO resource
3. Can display up to 16 x 2 characters, support screen scrolling, cursor movement, and other functions
4. Onboard AiP31068L LCD driver chip
5. The appearance is exquisite and compact, and the workmanship is exquisite and beautiful. Highly integrated design, stable performance, fine workmanship, compact body with the dimensions of 87 * 32 * 13 mm.
6. Comes with online development resources and manual (Raspberry Pi/Jetson Nano/ESP32/Arduino examples)
LCD controller: AiP31068
Display Panel: character
LCD Characters: 16 × 2
Operating voltage: 3.3 ~ 5V
Operating current: 26mA (5V), 13mA ( 3.3V )
Operating Temperature: -20 ~ +70

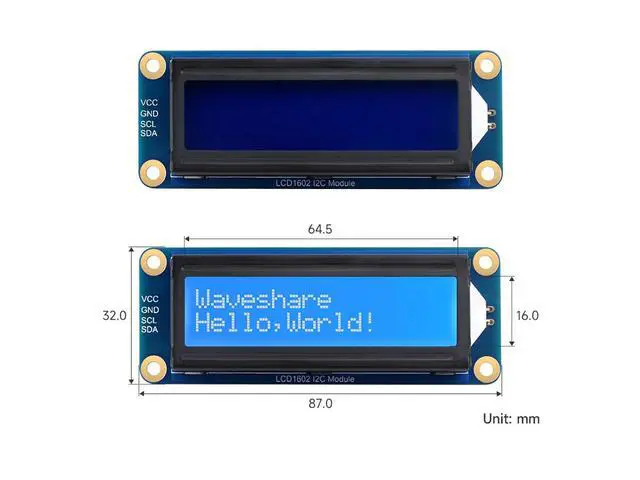

Display size: 64.5 × 16.0 mm
Dimensions: 87.0 × 32.0 × 13.0 mm Package Content 1. LCD1602 RGB Module x1 2. PH 2.0 4PIN wire x1
NOTE: Development Resources and Technical Support are provided, please feel free to contact us if you have any problem!
1. Incorporates character LCD panel LCD1602, compatible with 3.3V /5V operating voltage 2. I2C control interface, only two signal pins are required, saving the IO resource
3. Can display up to 16 x 2 characters, support screen scrolling, cursor movement, and other functions
4. Onboard AiP31068L LCD driver chip
5. The appearance is exquisite and compact, and the workmanship is exquisite and beautiful. Highly integrated design, stable performance, fine workmanship, compact body with the dimensions of 87 * 32 * 13 mm.
6. Comes with online development resources and manual (Raspberry Pi/Jetson Nano/ESP32/Arduino examples)

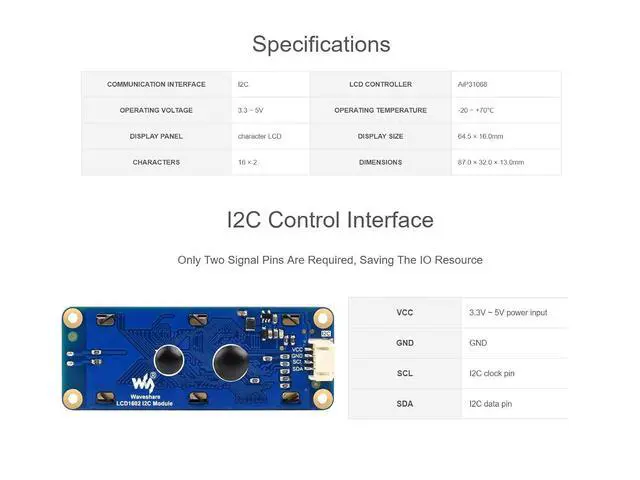

Specifications
Communication Interface: I2CLCD controller: AiP31068
Display Panel: character
LCD Characters: 16 × 2
Operating voltage: 3.3 ~ 5V
Operating current: 26mA (5V), 13mA ( 3.3V )
Operating Temperature: -20 ~ +70
Display size: 64.5 × 16.0 mm
Dimensions: 87.0 × 32.0 × 13.0 mm Package Content 1. LCD1602 RGB Module x1 2. PH 2.0 4PIN wire x1
NOTE: Development Resources and Technical Support are provided, please feel free to contact us if you have any problem!
