UPS Power Module (B) for Jetson Nano, 5V Uninterruptible Power Supply, 5A High Current, Pogo Pins Connector, Compatible with Jetson Nano Developer Kit (B01) and Jetson Nano 2GB Developer Kit

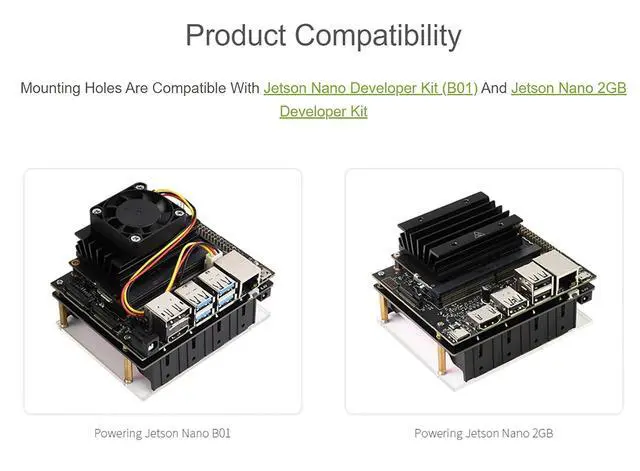

- Product CompatibilityMounting holes are compatible with Jetson Nano Developer Kit (B01) and Jetson Nano 2GB Developer Kit, Power Jetson Nano seamlessly from power connection or the backup batteries, 5V output, up to 5A current; Pogo Pins ConnectorCommunicating via I2C bus through Pogo Pins, no other IO Pin required; Real Time MonitoringMonitoring the batteries voltage, current, power, and remaining capacity via I2C; Multi battery protection circuitsOver charge/discharge protection, over current protection, short circuit protection, and reverse protection, along with the equalizing charge feature, more safe and stable; Longer Battery LifeSupports 4x 18650 Batteries (NOT included, the battery length SHOULD be less than 67mm, some batteries with protection plate in the market are NOT supported)
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

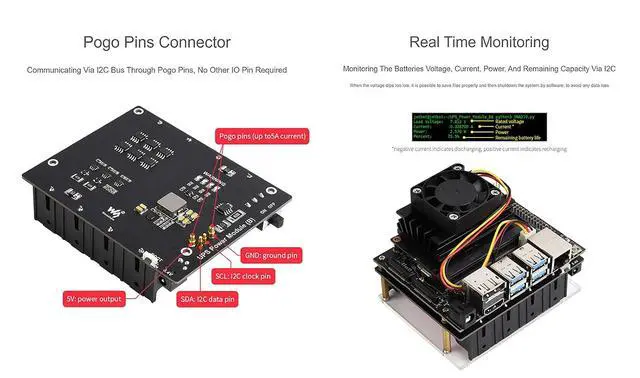

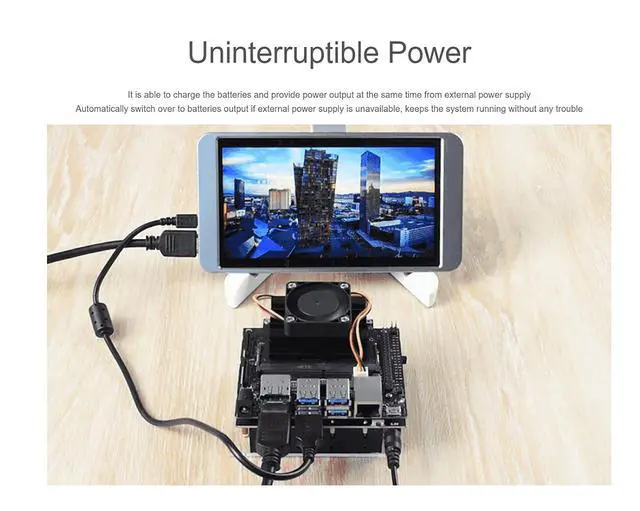

Overview Uninterruptible Power Supply UPS Module (B) for Jetson Nano, 5V Output, up to 5A Current, Pogo Pins Connector Features 1. I2C bus communication, monitoring the batteries voltage, current, power, and remaining capacity in real time 2.

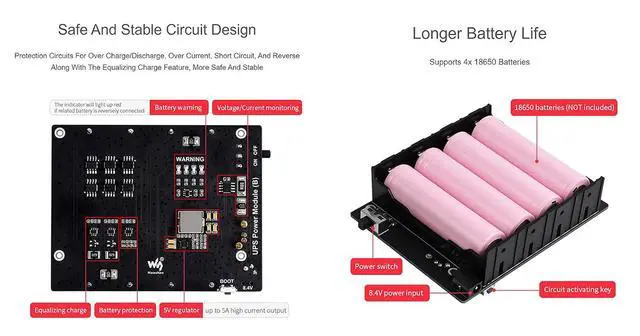

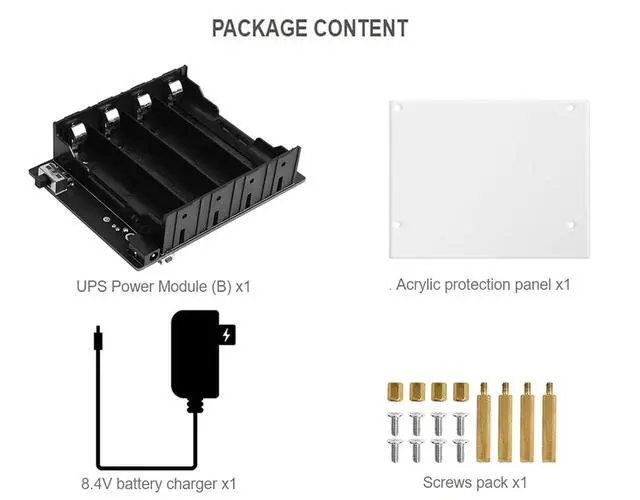

Multi battery protection circuits: over charge/discharge protection, over current protection, short circuit protection, and reverse protection, along with the equalizing charge feature, more safe and stable 3. Onboard 5V regulator, up to 5A (MAX) continuous output current, more sufficient power source for Jetson Nano 4. Batteries warning indicators, easy to check if the battery is connected correctly 5. omes with development resources and manual Package Content 1. UPS Power Module (B) x1 2. Acrylic protection panel x1 3. 8.4V battery charger x1 4. Screws pack x1 Note Development Resources and Technical Support are provided, please feel free to contact us if you have any problem!
Multi battery protection circuits: over charge/discharge protection, over current protection, short circuit protection, and reverse protection, along with the equalizing charge feature, more safe and stable 3. Onboard 5V regulator, up to 5A (MAX) continuous output current, more sufficient power source for Jetson Nano 4. Batteries warning indicators, easy to check if the battery is connected correctly 5. omes with development resources and manual Package Content 1. UPS Power Module (B) x1 2. Acrylic protection panel x1 3. 8.4V battery charger x1 4. Screws pack x1 Note Development Resources and Technical Support are provided, please feel free to contact us if you have any problem!
