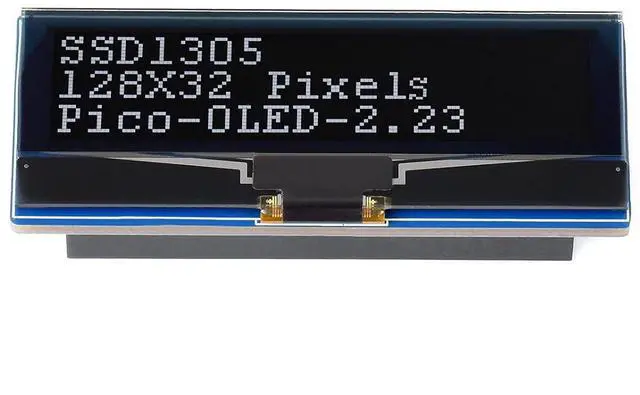

2.23inch OLED Display Module for Raspberry Pi Pico, 128×32 Pixel Black/White Display Color Embedded SSD1305 Driver 4-Wire SPI/I2C Interface 3.3V/5V Operating Voltage

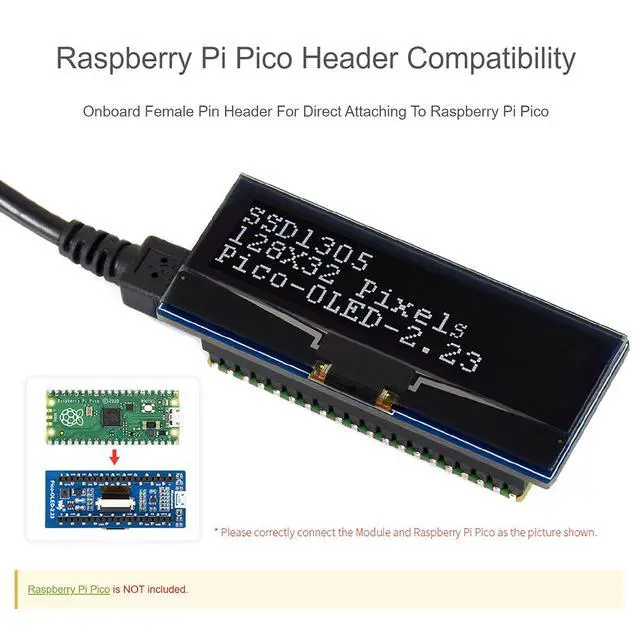

Overview 2.23 inch OLED Display Module For Raspberry Pi Pico, 128×32 Pixels, SPI/I2C Interface 1.2. 23" OLED Display Module For Pico Embedded SSD1305 Driver, Using SPI/I2C Bus Comes with Raspberry Pi Pico C/C++ and MicroPython Demo 2. Raspberry Pi Pico Header Compatibility Onboard Female Pin Header For Direct Attaching To Raspberry Pi Pico Features At A Glance Adopts both 4-wire SPI and I2C interface, better compatibility, fast data rate Standard Raspberry Pi Pico header, supports Raspberry Pi Pico series boards Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)

Specifications

LOGICAL VOLTAGE--- 3.3V OPERATING VOLTAGE--- 3.3V /5V COMMUNICATION INTERFACE---4-wire SPI, I2C DISPLAY PANEL---OLED DRIVER---SSD1305 VIEWING ANGLE-160° RESOLUTION---128×32 pixels DISPLAY SIZE--- 55.02 × 13.10 mm PIXEL SIZE--- 0.41 × 0.39 mm DIMENSIONS--- 63.00 × 26.00 mm LCD and the controller The built-in controller used in this OLED is SSD1305, which has 132 × 64 bit SRAM, supports a maximum 132 × 64 pixels screen, supports SPI/I2C/8bit 8080 parallel port.

The solution of this screen is 128 × 32 pixels, so the internal SRAM is not fully used. This module uses four-wire SPI and I2C interfaces, with good compatibility and high transmission speed. Package Content Pico-OLED- 2.23 x1
