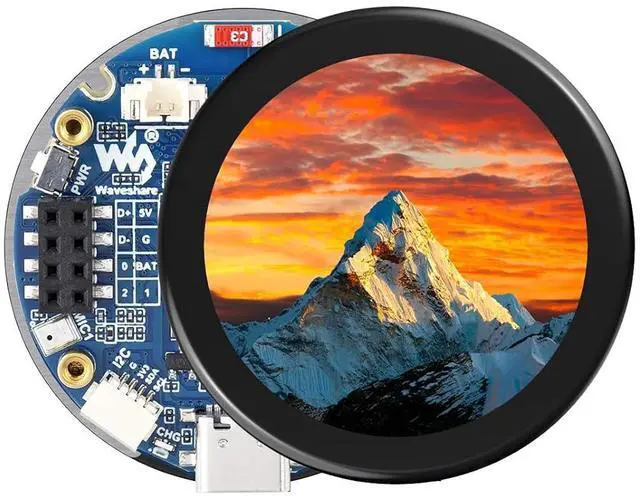

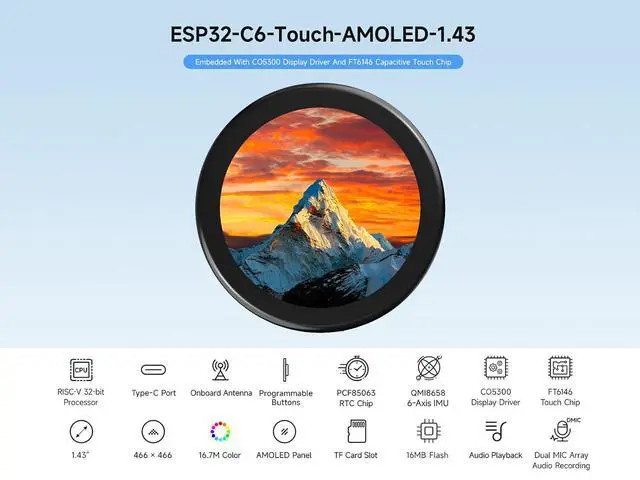

ESP32-C6 1.43inch AMOLED Round Touch Display Development Board, 160MHz RISC-V Processor, 466×466 Pixels 16.7M Color Display, Onboard Dual Digital Microphone Array, 6-Axis IMU, RTC Chip, etc.

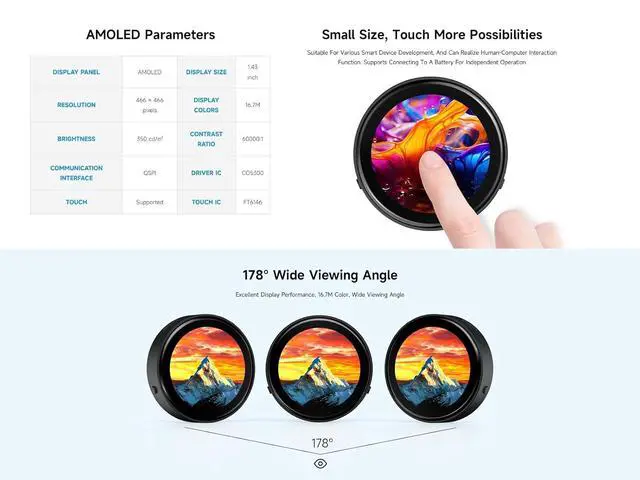

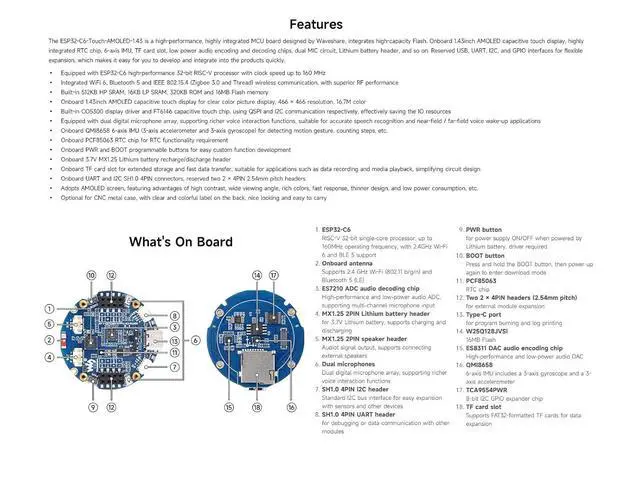

Overview ESP32-C6 1.43 inch AMOLED Round Touch Display Development Board, 160MHz RISC-V Processor, 466×466 Pixels, QSPI Interface, Onboard Dual Digital Microphone Array Features Equipped with ESP32-C6 high-performance 32-bit RISC-V processor with clock speed up to 160 MHz Integrated WiFi 6, Bluetooth 5 and IEEE 802.15. 4 (Zigbee 3.0 and Thread) wireless communication, with superior RF performance Built-in 512KB HP S-R-A-M, 16KB LP S-R-A-M, 320KB ROM and 16MB Flash memory Onboard 1.43 inch AMOLED capacitive touch display for clear color picture display, 466 × 466 resolution, 16.7M color Built-in CO5300 display driver and FT6146 capacitive touch chip, using QSPI and I2C communication respectively, effectively saving the IO resources Equipped with dual digital microphone array, supporting richer voice interaction functions, suitable for accurate speech recognition and near-field / far-field voice wake-up applications Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gesture, counting steps, etc.

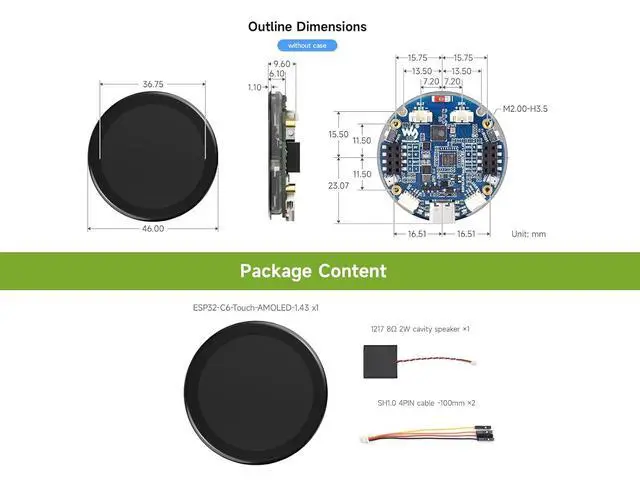

Onboard PCF85063 RTC chip for RTC functionality requirement Onboard PWR and BOOT programmable buttons for easy custom function development Onboard 3.7V MX 1.25 Lithium battery recharge/discharge header Onboard TF card slot for extended storage and fast data transfer, suitable for applications such as data recording and media playback, simplifying circuit design Onboard UART and I2C SH 1.0 4PIN connectors, reserved two 2 × 4PIN 2.54 mm pitch headers Package Content ESP32-C6-Touch-AMOLED- 1.43 x1 1217 8 2W cavity speaker ×1 SH 1.0 4PIN cable ~100mm ×2
NOTE: Online Development Resources and Technical Support are provided, please feel free to contact us if you have any problem!
