7inch IPS Touch Display 1024x600 Pixels Integrated Structure Thin and Light Screen with Development Adapter, Support Raspberry Pi/Jetson Nano/Windows PC

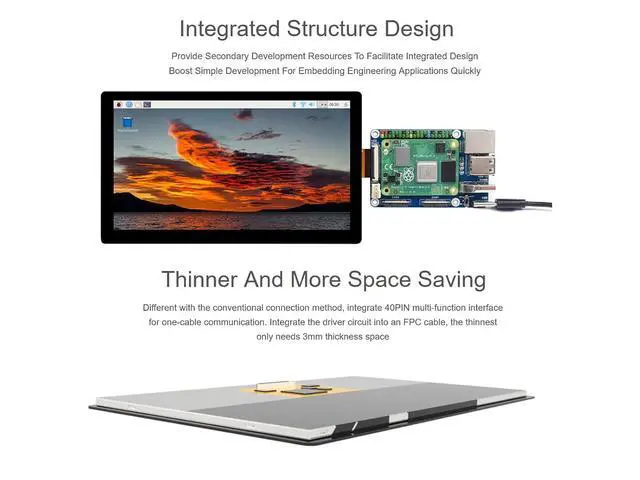

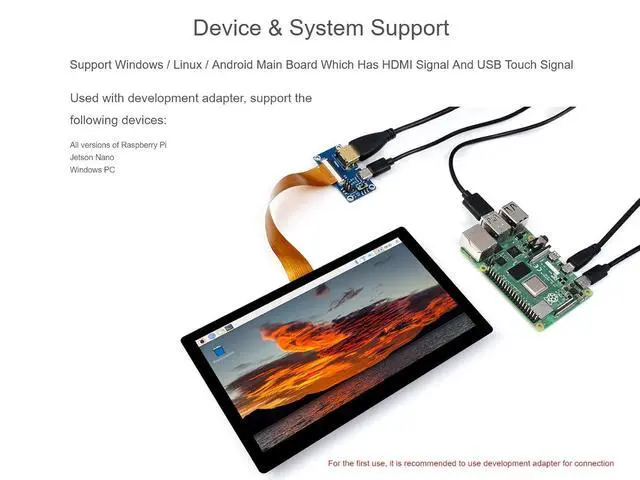

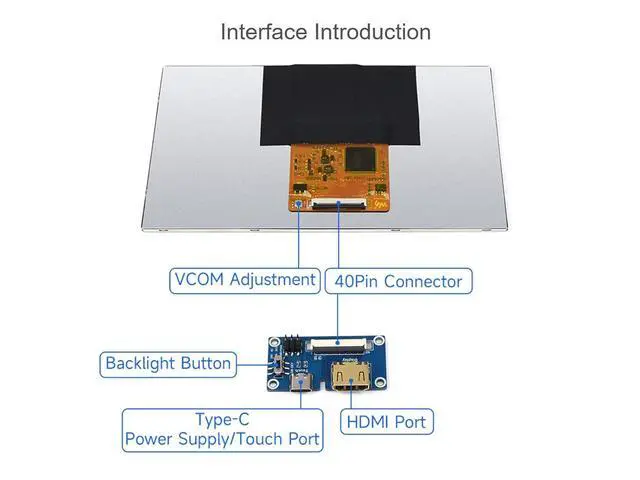

- 7inch IPS Integrated Display1024x600 hardware resolution, 170° wide viewing angle, COF thin and light structure, providing 40PIN interface one-line communication, users can do the second development by themselves easily; High CompatibilitySupport Windows / Linux / Android main board which has HDMI signal and USB touch signal. When used with development adapter, support Raspberry Pi 4B/3B+/3B/2B/B+/A+/Zero/Zero W/WH/Zero 2W, support Jetson Nano and Windows PC; Thinner and More Space Saving7inch IPS touch display, integrate the power supply, display, touch, and control signal as the 40PIN multi-functional interface, integrate the driver circuit into an FPC cable, the thinnest only needs 3mm thickness space; Integrated Structure DesignProvide secondary development resources to facilitate integrated design, Boost simple development for embedding engineering applications quickly; 5-Point Capacitive TouchEnjoy multi-point UI interaction via flexible operation, adapting touch function with USB signal, support 5-point touch
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Overview The 7inch IPS Touch Display is for customers who need a lightweight HDMI display. As it is thinner and lighter than any traditional HDMI display, just need an FPC cable, users can lower the project cost with the thinnest display, and apply it in any embedded projects. Feature 7-inch IPS screen, 1024 x 600 hardware resolution. Capacitive touch, support five-point touch. COF thin and light structure, providing 40PIN interface one-line communication, integrated development is more convenient. High compatibility, when used with development accessories, it supports main control boards such as Raspberry Pi, PC, and Jetson nano.
Support backlight control, more power saving.
Specification Size: 7 inch
Viewing Angle: 170
Deg Resolution: 1024 (RGB) × 600
Pixels Touch Screen Size: 173 (H) × 103 (V) × 4.2 (D) mm
Display Area: 154.21 (W) × 85.92 (H) mm
Pixel Pitch: 0.1506 (H) x 0.1432 (V) mm IPS
Version Color Gamut: 45%NTSC
Brightness: 350 cd/m²
Backlight Adjustment Method: PWM software dimming
Contrast: 800:1
Color Depth: 16.7M
Refresh Rate: 60
Hz User Interface: 40PIN 0.5 mm
FPC Weight: 153 g

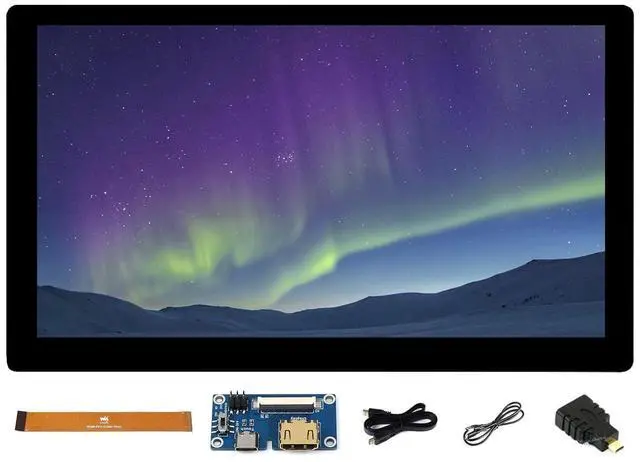

Power Consumption: 2.3 Watt Package Content IPS Touch Display x1 FPC cable (~ 15cm) x1 Development
Accessories NOTE: Development Resources and Technical Support are provided, please feel free to contact us if you have any problem!
Support backlight control, more power saving.
Specification Size: 7 inch
Viewing Angle: 170
Deg Resolution: 1024 (RGB) × 600
Pixels Touch Screen Size: 173 (H) × 103 (V) × 4.2 (D) mm
Display Area: 154.21 (W) × 85.92 (H) mm
Pixel Pitch: 0.1506 (H) x 0.1432 (V) mm IPS
Version Color Gamut: 45%NTSC
Brightness: 350 cd/m²
Backlight Adjustment Method: PWM software dimming
Contrast: 800:1
Color Depth: 16.7M
Refresh Rate: 60
Hz User Interface: 40PIN 0.5 mm
FPC Weight: 153 g
Power Consumption: 2.3 Watt Package Content IPS Touch Display x1 FPC cable (~ 15cm) x1 Development
Accessories NOTE: Development Resources and Technical Support are provided, please feel free to contact us if you have any problem!
