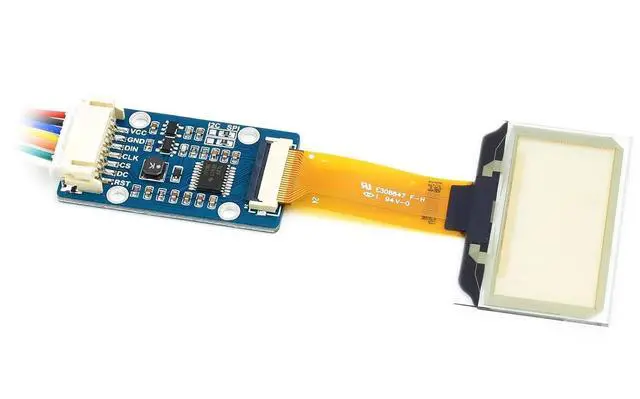

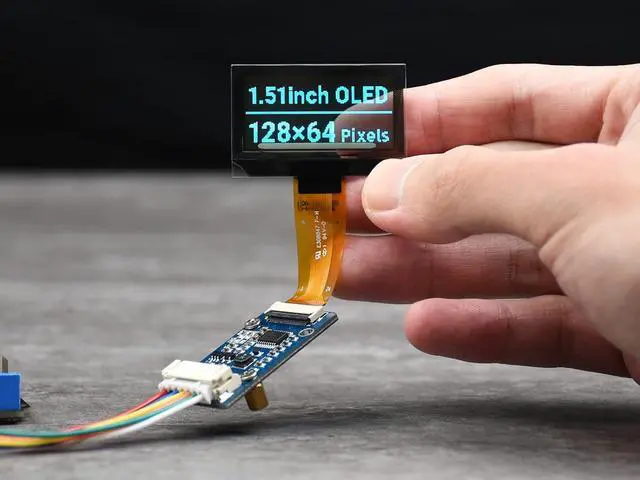

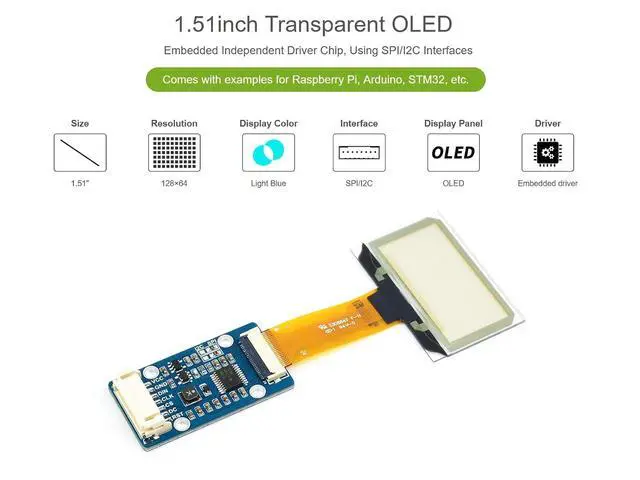

1.51inch OLED Transparent Module Light Blue Color Display 128×64 Pixels, Embedded Independent Driver Chip, SPI/I2C Interfaces, Support Controller Boards Like Raspberry Pi/Arduino/STM32
- 1.51inch transparent OLED module, 128×64 resolution, light blue color display, full viewing angle; Embedded independent driver chip SSD1309; Adopts 4-wire SPI and I2C interface, supports controller boards like Raspberry Pi/Arduino/STM32, better compatibility, fast data rate; Two resistors can be soldered on the back of the OLED module, the corresponding communication mode can be selected through the selection of resistors; Online development resources and technical support are provided, please feel free to contact us if you have any problem!
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

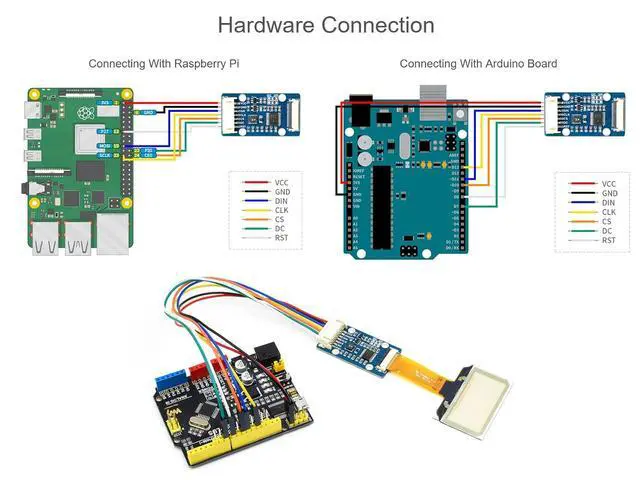

Overview 1.51 inch transparent OLED, 128×64 resolution, light blue color display, embedded independent driver chip, using SPI/I2C interfaces Features OLED transparent module, full viewing angle Adopts 4-wire SPI and I2C interface, better compatibility, fast data rate supports controller boards like Raspberry Pi/Arduino/STM32

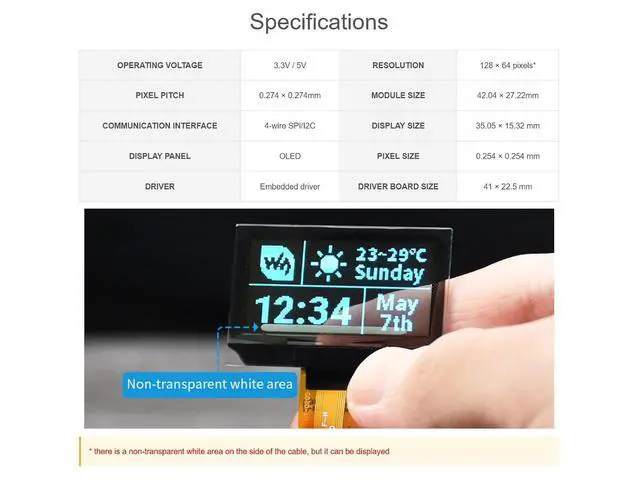

Specification Operating Voltage: 5V/ 3.3V

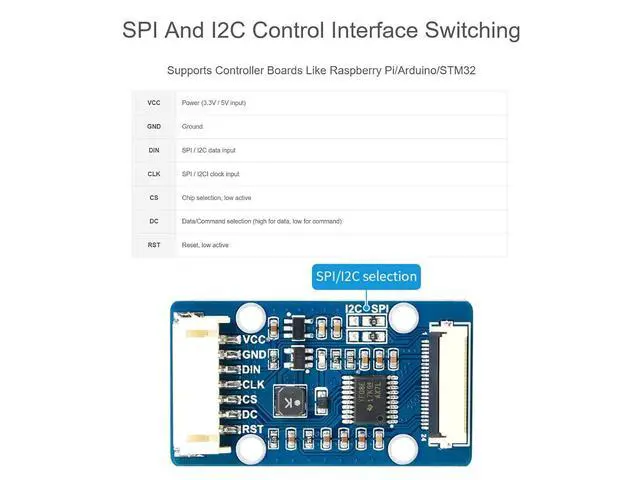

Communication Interface: 4-wire
SPI/I2C Controller: SSD1309
Resolution: 128 × 64 pixels*
Display Panel: OLED
Display Color: Light Blue

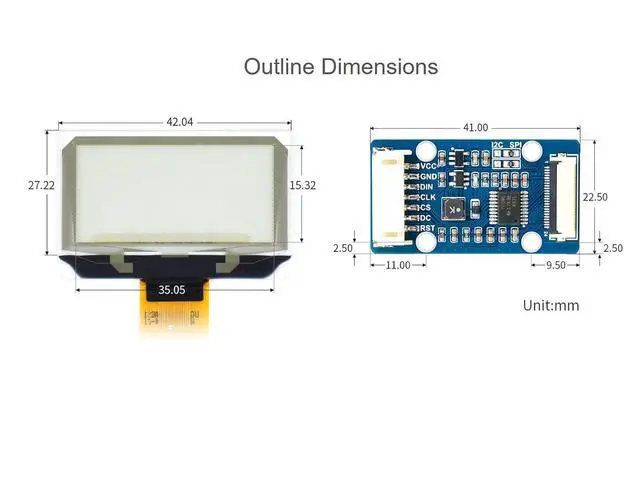

Display Size: 35.05 × 15.32 (mm)
Pixel Pitch: 0.274 × 0.274 mm
Module Size: 42.04 × 27.22 mm
Driver Board Size: 41 × 22.5 (mm) * there is a non-transparent white area on the side of the cable, but it can be displayed Package Content 1.51 inch Transparent OLED x1 PH 2.0 7PIN cable x1 Screws pack
Specification Operating Voltage: 5V/ 3.3V
Communication Interface: 4-wire
SPI/I2C Controller: SSD1309
Resolution: 128 × 64 pixels*
Display Panel: OLED
Display Color: Light Blue
Display Size: 35.05 × 15.32 (mm)
Pixel Pitch: 0.274 × 0.274 mm
Module Size: 42.04 × 27.22 mm
Driver Board Size: 41 × 22.5 (mm) * there is a non-transparent white area on the side of the cable, but it can be displayed Package Content 1.51 inch Transparent OLED x1 PH 2.0 7PIN cable x1 Screws pack
