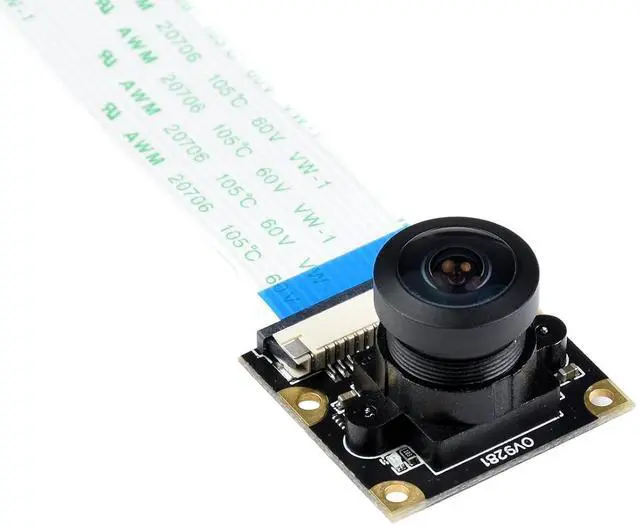

OV9281-160 Mono Camera for Raspberry Pi 4B/3B+/3A+/3B/2B/B+/A+, 160°FOV, 1MP, F2.35 Aperture, 3.15mm Focal Length, Manual Focus, Global Shutter, More Clear Imaging
Limited time offer, ends 07/19 By EmpressTech

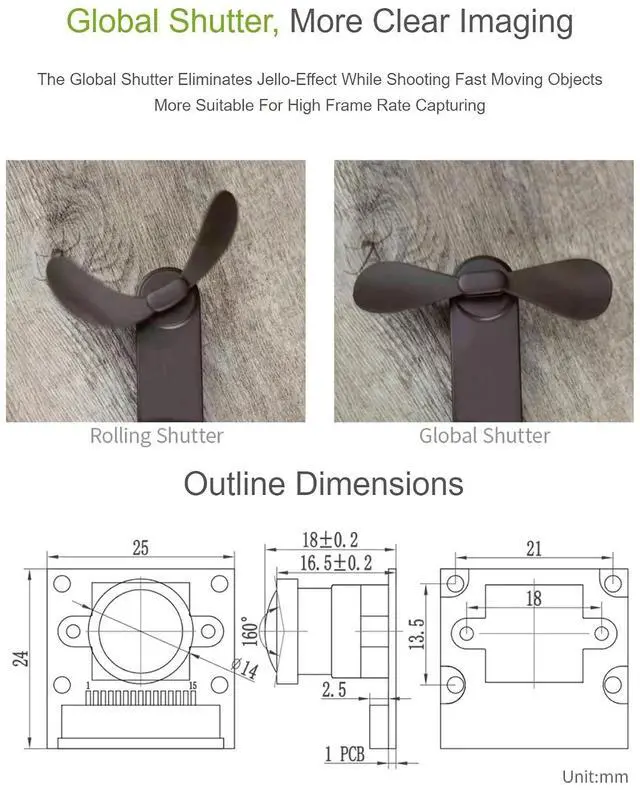

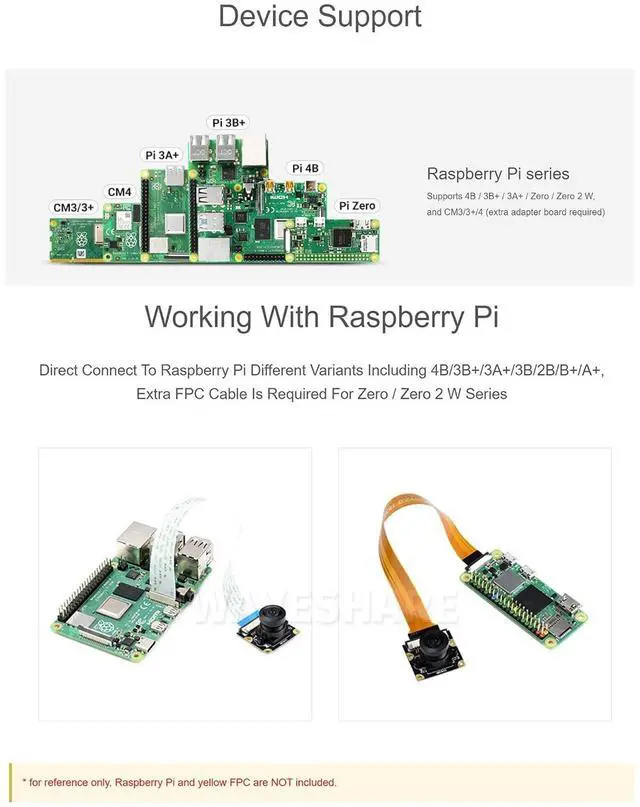

- OV9281-160 mono Camera compatible with Raspberry Pi series boards, direct connect to Raspberry Pi different variants including 4B/3B+/3A+/3B/2B/B+/A+, extra FPC cable is required for Zero / Zero 2 W series; Sensor: OV9281, CMOS size: 1/4 inch, CAMERA type : mono; Pixels: 1MP (1280 × 800), Aperture: F2.35, Distortion: < 14.3%; Field of view: 160°(D)/126°(H)/91°(V), Focal length: 3.15mm, FOCUSIN: Manual; Global shutter eliminates jello-effect while shooting fast moving objects, more suitable for high frame rate capturing
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

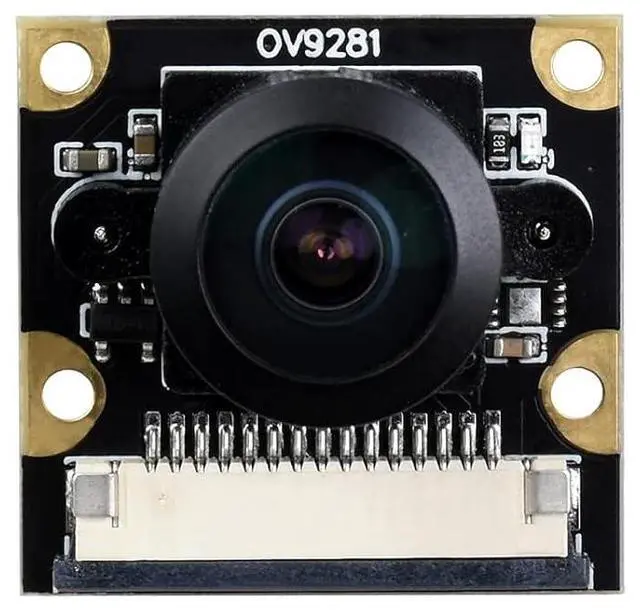

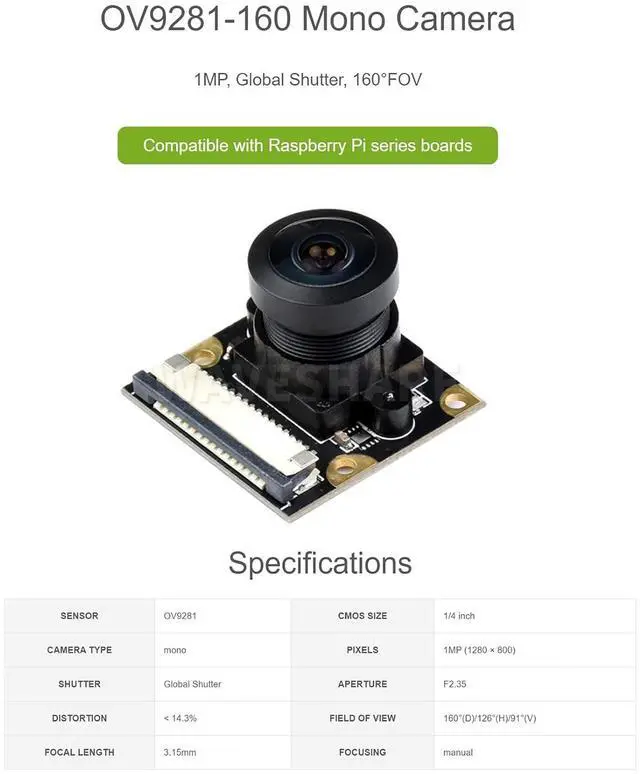

OV9281-160 mono Camera for Raspberry Pi, Global Shutter, 1MP
CMOS size: 1/4 inch
CAMERA type: mono
Pixels: 1MP (1280 × 800)
SHUTTER: Global
Shutter Aperture: F 2.35
Distortion: < 14.3 %
Field of view: 160° (D) /126° (H) /91° (V)
Focal length: 3.15 mm
FOCUSING: Manual Camera configuration If you use the official V1 camera (ov5647), V2 camera (IMX219), and the HQ camera (IMX477), you can just plug in the camera and play. If you use third-party cameras, the support camera size is as below and please use libcamera stack. You need to modify the config. txt file and add the configure line according to the camera type.
Note: Provide technical support, please contact with the Seller first if you have any problem when using the OV9281-160 Camera. Package Content OV9281-160 Camera x1 15-pin FFC (opposite sides contact) x1
Specifications
Sensor: OV9281CMOS size: 1/4 inch
CAMERA type: mono
Pixels: 1MP (1280 × 800)
SHUTTER: Global
Shutter Aperture: F 2.35
Distortion: < 14.3 %
Field of view: 160° (D) /126° (H) /91° (V)
Focal length: 3.15 mm
FOCUSING: Manual Camera configuration If you use the official V1 camera (ov5647), V2 camera (IMX219), and the HQ camera (IMX477), you can just plug in the camera and play. If you use third-party cameras, the support camera size is as below and please use libcamera stack. You need to modify the config. txt file and add the configure line according to the camera type.
Note: Provide technical support, please contact with the Seller first if you have any problem when using the OV9281-160 Camera. Package Content OV9281-160 Camera x1 15-pin FFC (opposite sides contact) x1
