0.96inch OLED Display Module for Raspberry Pi/Arduino/STM32, 64×128 Resolution 65K Colors RGB OLED Screen, 3/4-wire SPI Interface, 3.3V / 5V
Limited time offer, ends 07/19 By EmpressTech
- 0.96inch RGB OLED Display Module, 64×128 resolution, 65K colors, clear and colorful displaying effect; 3/4-wire SPI interface, minimizes required IO pins; Embedded SSD1357 driver chip, 3.3V/5V operating voltage; Display dimension: 10.8624 (W) x 21.736 (H)mm, Pixel size: 0.0327 (W) x 0.146 (H)mm, Module size: 32.5 × 26.0mm; Comes with online development resources (examples for Raspberry Pi/Arduino/STM32), feel free to contact us for it
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

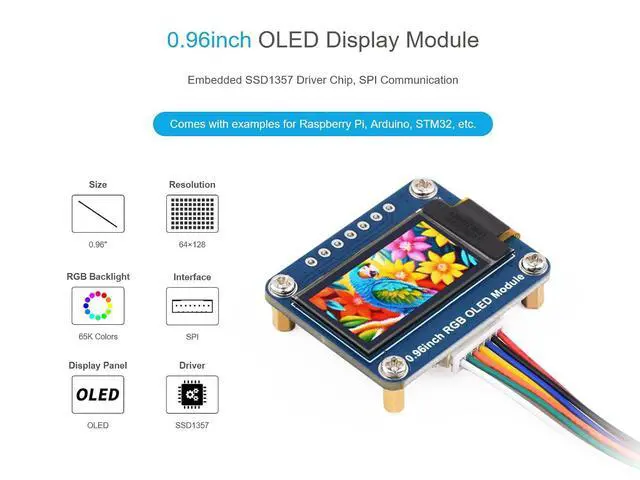

Overview 0.96 inch RGB OLED Display Module, 64×128 Resolution, 65K Colors, clear and colorful displaying effect, SPI interface, minimizes required IO pins, comes with online development resources (examples for Raspberry Pi/Arduino/STM32)
Display panel: OLED
Display color: 65K color
Communication interface: 4-wire SPI, 3-wire
SPI Controller: SSD1357
Resolution: 64 (RGB) x 128 pixels
Display dimension: 10.8624 (W) x 21.736 (H) mm
Pixel size: 0.0327 (W) x 0.146 (H) mm
Module size: 32.5 × 26.0 mm Package Content 0.96 inch RGB OLED Module x1 GH 1.25 7PIN cable x1
NOTE: Development Resources and Technical Support are provided, please feel free to contact us if you have any problem!

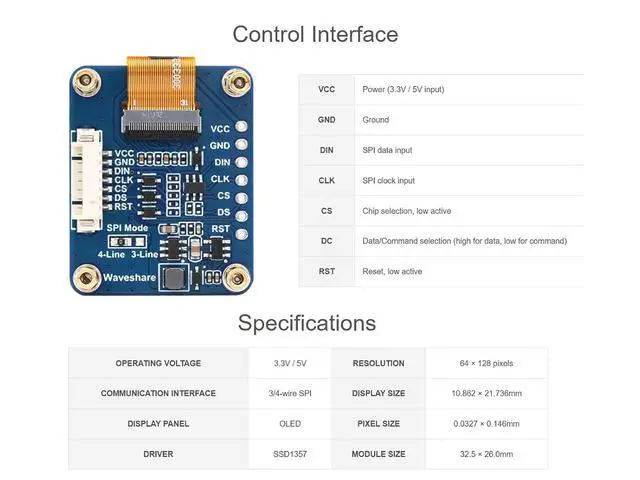

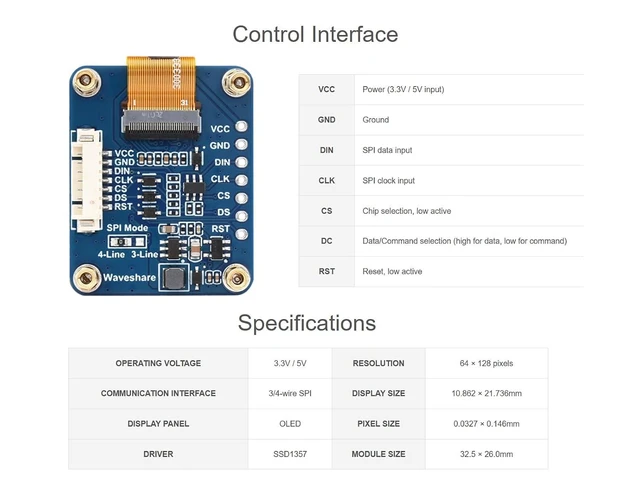

Specifications
Voltage: 3.3V /5V(Please ensure that the power supply voltage and logic voltage are consistent, otherwise it will not work properly)Display panel: OLED
Display color: 65K color
Communication interface: 4-wire SPI, 3-wire
SPI Controller: SSD1357
Resolution: 64 (RGB) x 128 pixels
Display dimension: 10.8624 (W) x 21.736 (H) mm
Pixel size: 0.0327 (W) x 0.146 (H) mm
Module size: 32.5 × 26.0 mm Package Content 0.96 inch RGB OLED Module x1 GH 1.25 7PIN cable x1
NOTE: Development Resources and Technical Support are provided, please feel free to contact us if you have any problem!
