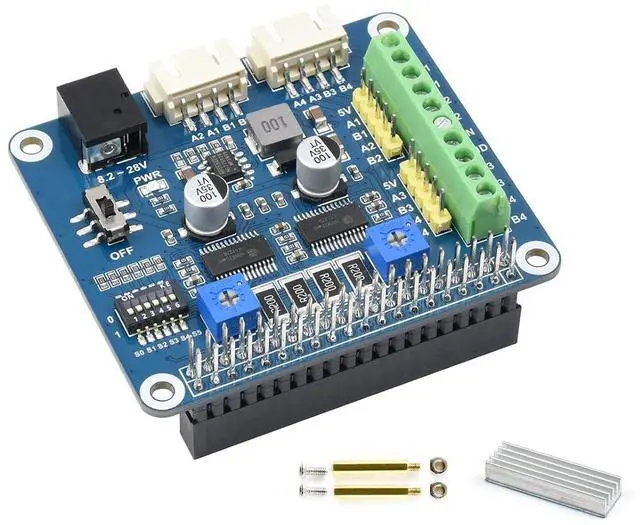

Stepper Motor HAT (B) for Raspberry Pi/Jetson Nano, Dual HR8825 Motor Controller IC, Up to 1/32 Microstepping, Blue
Limited time offer, ends 07/19 By EmpressTech
- Onboard 2-ch HR8825 Motor Driver ChipHR8825 is a dual H-bridge motor driver chip that supports 32 subdivisions, built-in converter for easy control, can drive two stepper motors; 6 Available Microstepping ModesConfigured via the DIP switches: full-step, half-step, 1/4-step, 1/8-step, 1/16-step, and 1/32-step; Onboard Different Stepper Motor InterfacesOnboard multi connector options for stepper motors, easy access to stepper motors in different specifications; Raspberry Pi 40PIN GPIO CompatibilityStepper Motor HAT (B) designed for Raspberry Pi boards/Jetson Nano, Raspberry Pi connectivity, compatible with Raspberry Pi Zero/Zero W/Zero WH/2B/3B/3B+; ApplicationAlternative solution of stepper motor HAT, easy access to stepper motors in different specifications, for 3D Printer, Sculpturing machine, Mechanical arm etc.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

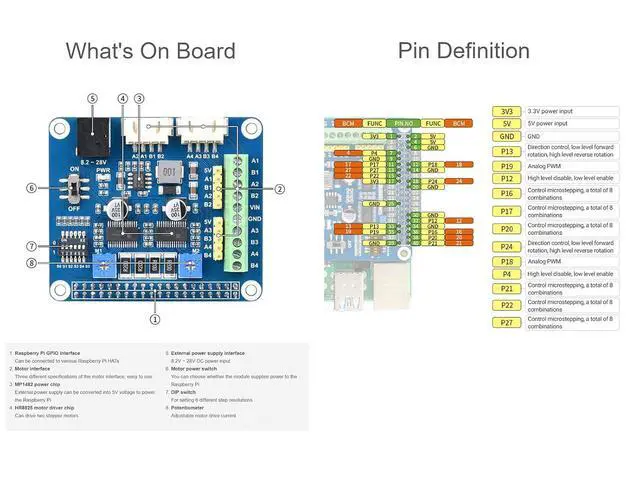

Overview Stepper Motor HAT (B), alternative solution of Stepper Motor HAT, drives two stepper motors, up to 1/32 Microstepping, for 3D printer, sculpturing machine, mechanical arm etc. Features

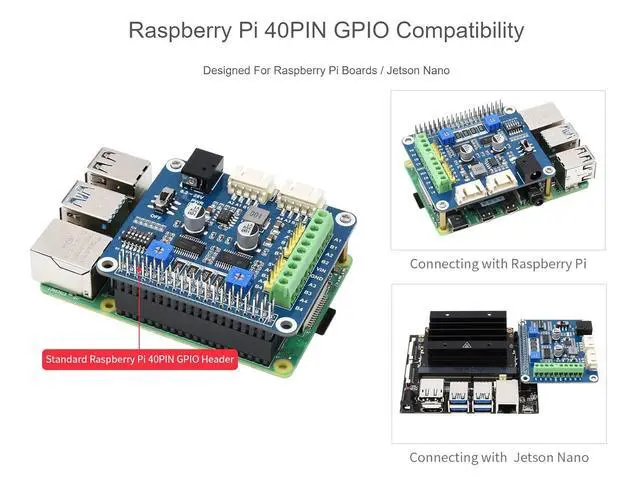

1. Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano

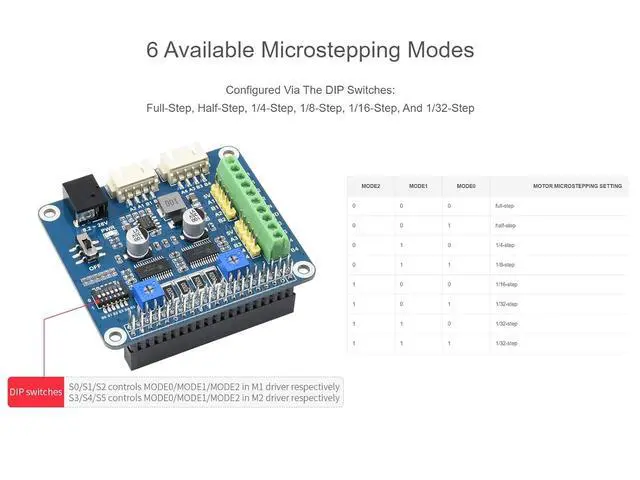

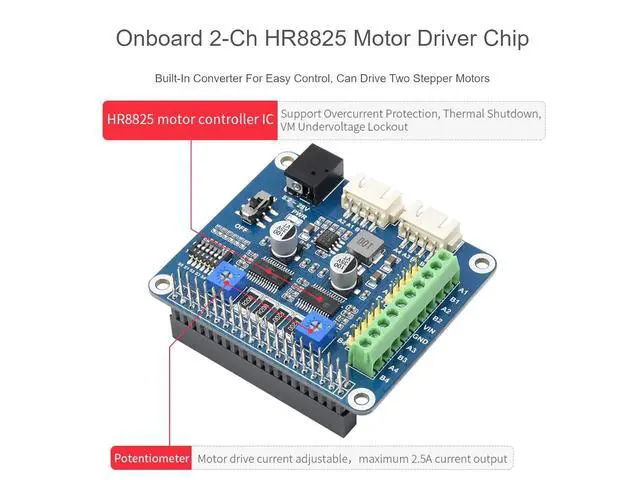

2. Onboard dual HR8825 motor controller IC with built-in microstepping indexer, drives two stepper motors, easy to use 3. 6 available microstepping modes, configured with the
DIP switches: full-step, half-step, 1/4-step, 1/8-step, 1/16-step, and 1/32-step
4. Adjustable motor drive current via potentiometer, maximum 2.5A current output
5.
Protection features: Overcurrent Protection (OCP), Thermal Shutdown (TSD), VM Undervoltage Lockout (UVLO)
6. Integrates 5V regulator, allows providing power to Raspberry Pi

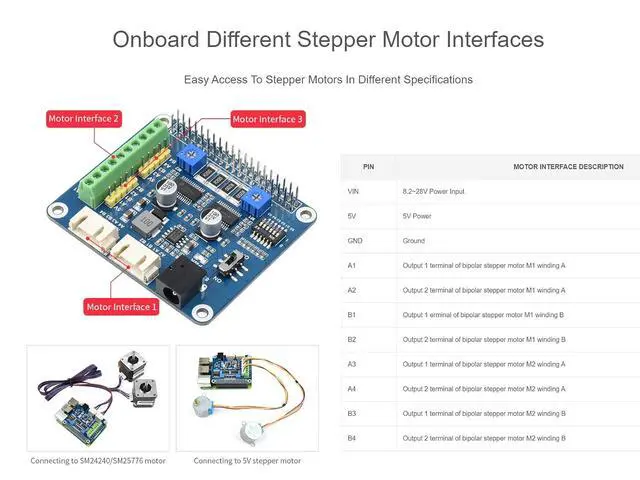

7. Onboard multi connector options for stepper motors in different specifications
Motor drive voltage: 8.2V ~28V
Motor drive current: 2.5A
Logic voltage: 3.3V
Mounting hole size: 3.0 mm

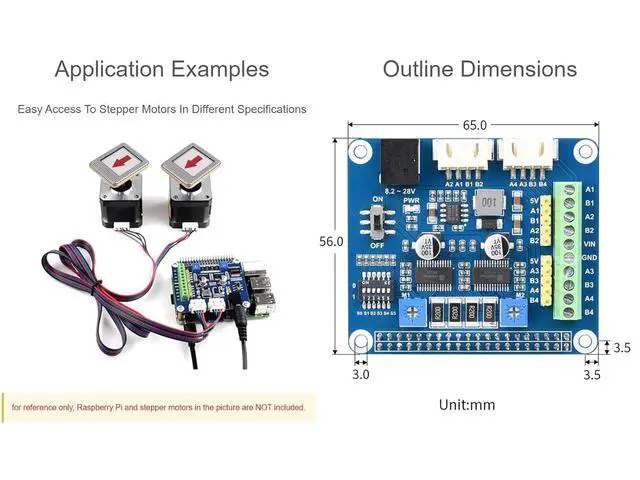

Dimension: 65 × 56mm Package Content Stepper Motor HAT (B) x1 RPi screws pack (2pcs) x1 Aluminum heatsink x1
NOTE: Development Resources and Technical Support are provided, please feel free to contact us if you have any problem!
1. Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano
2. Onboard dual HR8825 motor controller IC with built-in microstepping indexer, drives two stepper motors, easy to use 3. 6 available microstepping modes, configured with the
DIP switches: full-step, half-step, 1/4-step, 1/8-step, 1/16-step, and 1/32-step
4. Adjustable motor drive current via potentiometer, maximum 2.5A current output
5.
Protection features: Overcurrent Protection (OCP), Thermal Shutdown (TSD), VM Undervoltage Lockout (UVLO)
6. Integrates 5V regulator, allows providing power to Raspberry Pi
7. Onboard multi connector options for stepper motors in different specifications
Specifications
Motor controller: HR8825Motor drive voltage: 8.2V ~28V
Motor drive current: 2.5A
Logic voltage: 3.3V
Mounting hole size: 3.0 mm
Dimension: 65 × 56mm Package Content Stepper Motor HAT (B) x1 RPi screws pack (2pcs) x1 Aluminum heatsink x1
NOTE: Development Resources and Technical Support are provided, please feel free to contact us if you have any problem!
