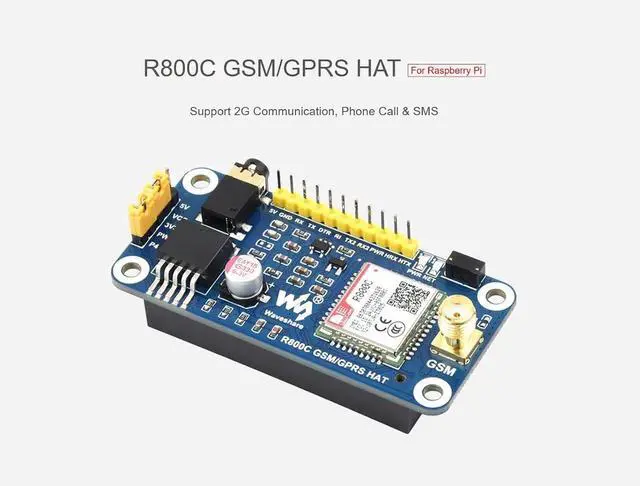

R800C GSM GPRS HAT for Raspberry Pi Zero/Zero W/Zero WH/2B/3B/3B+/4B and Jetson Nano, Support 2G Communication, Phone Call, SMS, GPRS, TCP/IP, DTMF, HTTP, FTPl, etc.
Limited time offer, ends 07/19 By EmpressTech

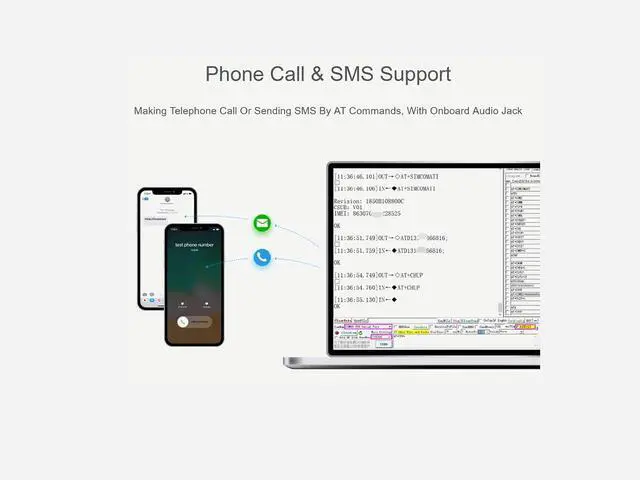

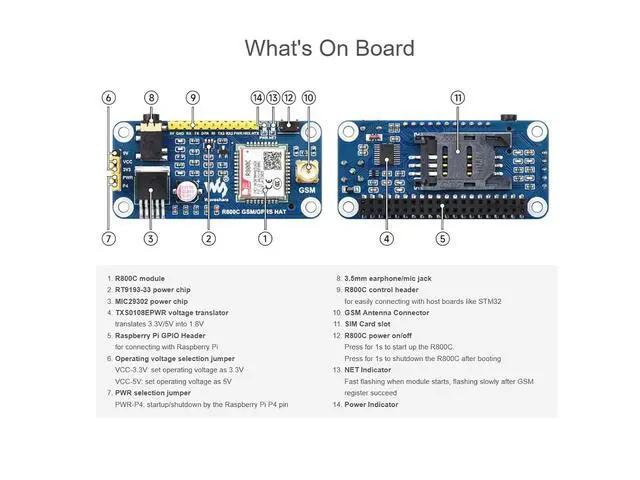

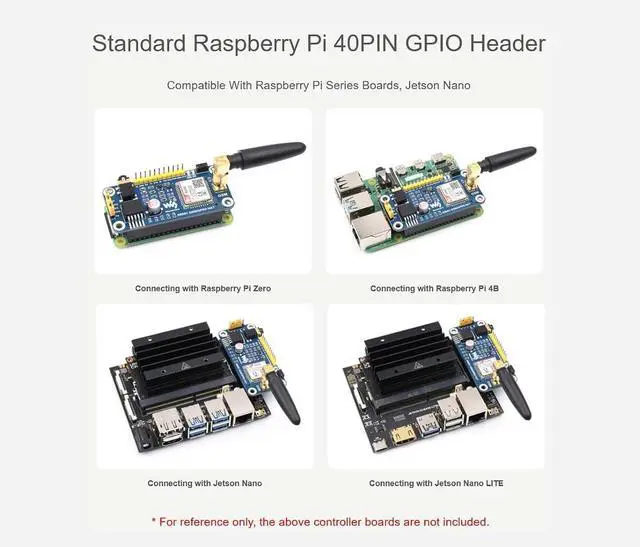

- R800C GSM/GPRS HAT supports SMS, phone call, GPRS, TCP/IP, DTMF, HTTP, FTPl, etc. with standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards and Jetson Nano; Onboard voltage translator, 3.3V by default, switch to 5V via jumper, 2x LED indicators, easy to monitor the working status; SIM card slot, supports 1.8V/3V SIM card, Supports SIM application toolkit: GSM 11.14 Release 99; Baudrate: 2400bps ~ 115200bps (115200bps by default), Control via AT commands (3GPP TS 27.007, 27.005, and SIMCOM enhanced AT Commands); Onboard UART interface, for connecting controller boards like Arduino/STM32
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Overview R800C GSM/GPRS HAT features GSM (Global System for Mobile Communications) and GPRS (General Packet Radio Service) functions for Raspberry Pi. It has the advantages of small size and low power consumption, applicable to countries or regions with 2G network coverage, up to 85.6 kbps GPRS speed. It allows your Pi to easily make a telephone call, send messages, connect to wireless Internet, and so on. GSM / GPRS / Audio Parameters
Frequency band: EGSM 900/PCS 1900MHz Support Quad-band auto search Compliant with GSM phase 2/2+
Emitting power: Class 4 (2W @ GSM 850/EGSM 900 MHz) Class 1 (1W @ DCS 1800/PCS 1800
MHz) GPRS connectivity: GPRS multi-slot class 12 (by default) GPRS multi-slot class 1~12 (configurable)
GPRS data feature: UL/DL
speed: 85.6 kbps Supports Packet Broadcast Control Channel (PBCCH)
Coding schemes: CS-1, CS-2, CS-3, CS-4 Supports PAP (Password Authentication Protocol) for PPP connection Supports Unstructured Supplementary Service Data (USSD)
SMS:
Supports: MT, MO, CB, Text, PDU
SMS storage: SIM card
Audio: Voice
encode/decode mode: Half Rate, Full Rate, Enhanced Full Rate, Adaptive Multi Rate Support echo cancellation Support noise reduction
Others: Power
supply: 5V
Logic level: 5V / 3.3V (default)
Operating temperature: -40°C ~ 85°C
Storage temperature: -45°C ~ 90°C

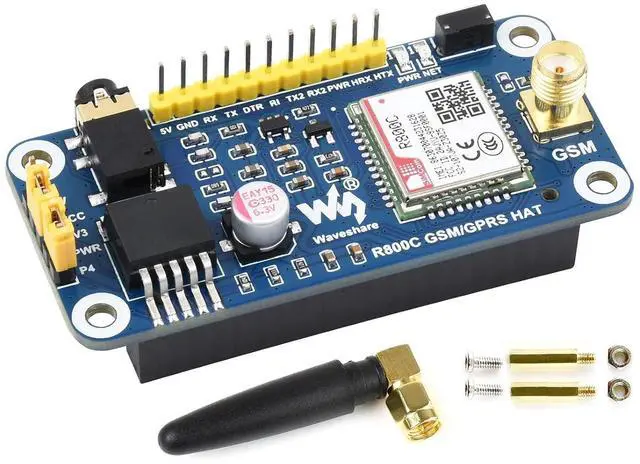

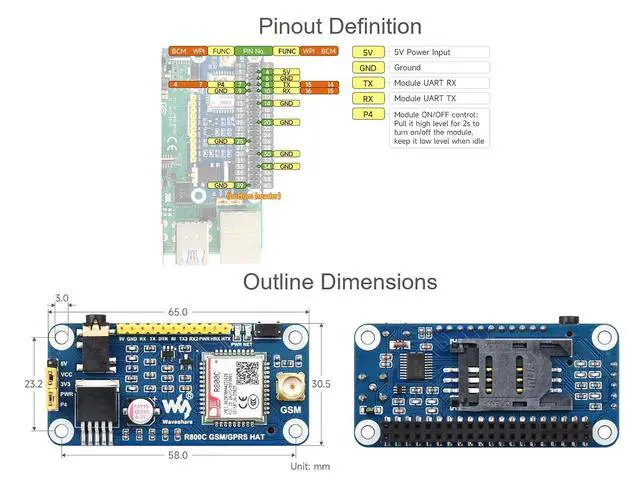

Dimensions: 30.2 x 65mm Package Content R800C GSM/GPRS HAT x1 GSM Antenna x1 RPi screws pack (2pcs) x1
NOTE: Development Resources and Technical Support are provided, please feel free to contact us if you have any problem!
Frequency band: EGSM 900/PCS 1900MHz Support Quad-band auto search Compliant with GSM phase 2/2+
Emitting power: Class 4 (2W @ GSM 850/EGSM 900 MHz) Class 1 (1W @ DCS 1800/PCS 1800
MHz) GPRS connectivity: GPRS multi-slot class 12 (by default) GPRS multi-slot class 1~12 (configurable)
GPRS data feature: UL/DL
speed: 85.6 kbps Supports Packet Broadcast Control Channel (PBCCH)
Coding schemes: CS-1, CS-2, CS-3, CS-4 Supports PAP (Password Authentication Protocol) for PPP connection Supports Unstructured Supplementary Service Data (USSD)
SMS:
Supports: MT, MO, CB, Text, PDU
SMS storage: SIM card
Audio: Voice
encode/decode mode: Half Rate, Full Rate, Enhanced Full Rate, Adaptive Multi Rate Support echo cancellation Support noise reduction
Others: Power
supply: 5V
Logic level: 5V / 3.3V (default)
Operating temperature: -40°C ~ 85°C
Storage temperature: -45°C ~ 90°C
Dimensions: 30.2 x 65mm Package Content R800C GSM/GPRS HAT x1 GSM Antenna x1 RPi screws pack (2pcs) x1
NOTE: Development Resources and Technical Support are provided, please feel free to contact us if you have any problem!
