VIVO Height Adjustable Clamps & Rails for Custom Wood Keyboard Tray - Pack of 2
- DIY Customized Design: Save desk space by transforming your very own keyboard tray (at least 10.5" in width, 0.6" in thickness, and up to 11 lbs in weight) into an under desk sliding tray with this durable set of clamp-on rails
- Height Adjustable for Ergonomic Typing: Easily slide your tray in and out from your desk and enjoy ergonomic typing angles to relieve stress. The mounting brackets are height adjustable for customized placement (2.4" of total adjustment with 5 set points)
- Sturdy C-Clamps: The C-clamps hold everything tightly in place and adjust with simple hand tightening. Please Note: Before purchasing, ensure that your desk surface does not exceed a thickness of 1.75"
- Scratch Safe Design: Anti-skid padding ensures your keyboard tray remains securely attached to your workstation without causing any damage to your desk
Any questions? Ask CelesteSM will help you find out quickly.
Turn your very own wooden keyboard platform into an ergonomic sliding tray with the Height Adjustable Clamp and Rail Set for Custom Wood Tray - 2 Pack (MOUNT-RAIL02H) from VIVO! Win back valuable desk space by adding a lower-tier surface for the keyboard, mouse, and other small items. Featuring smooth gliding motion for easy placement, height adjustable mounting brackets with sturdy C-clamps for convenient installation, and anti-skid padding for scratch resistance, this mount was built to perform! The under-desk placement creates an ergonomic setup that decreases fatigue and muscle strain on the neck, back, and shoulders. All hardware is provided for easy installation to get the slider bracket set assembled in no time!

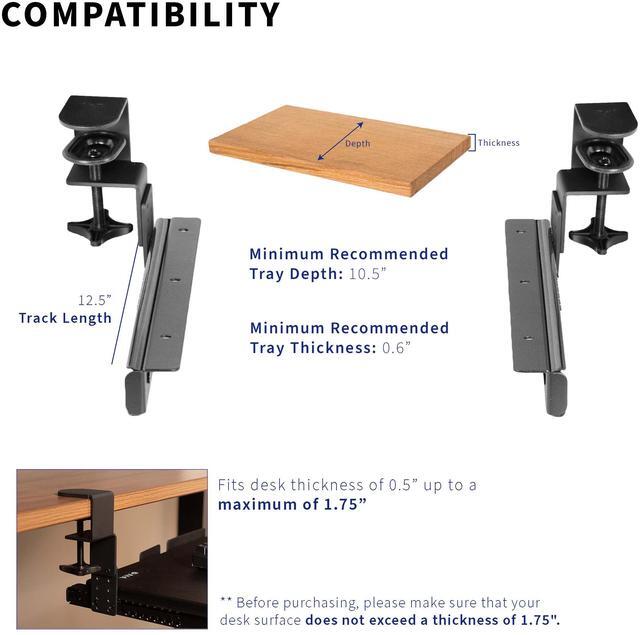

Compatibility
- Minimum Recommended Tray Width (Depth): 10.5
- Minimum Recommended Tray Thickness: 0.6
- Desktop Thickness: 0.5 to 1.75 (The thicker your keyboard tray, the thinner your desktop should be (& vice versa) to attain enough height clearance)
- Weight Capacity: 11 lbs
Specifications
- Color: Black
- Material: Steel
- Slider Track Length: 12.5

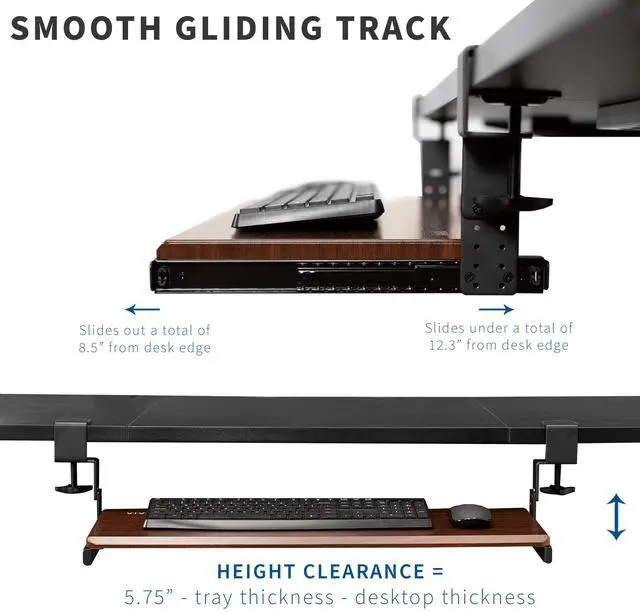

- Height Clearance (Orientation): Tray sits 1.5 to 5.75 below the desk surface
- Height Adjustment: 2.4 (5 height settings with 0.6 between each setting)

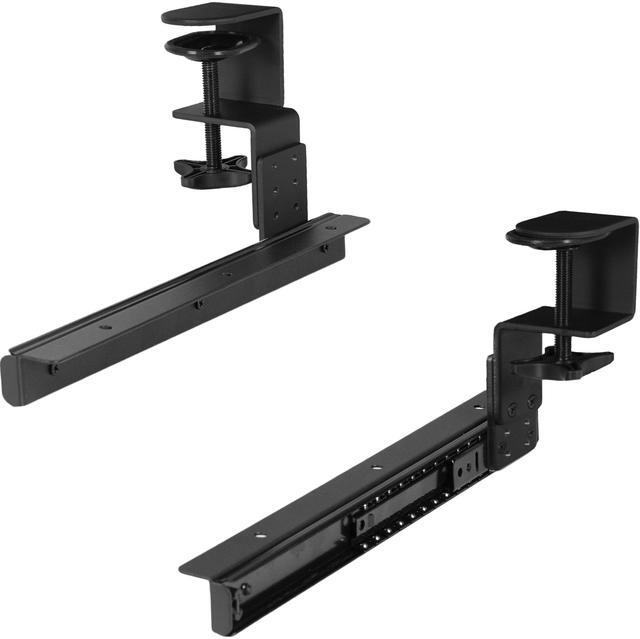

- Items Included: Slider Tracks, Clamps, Padding, Hardware
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Please contact the Seller directly for warranty information. Warranty information may also be found on the Manufacturer's website.
- CONTACT
Return Policies
- Return for refund within: 30 days
- Return for replacement within: 30 days
- This item is covered by VIVO Return Policy
Manufacturer Contact Info
- For a directory of all our manufacturers, please click below.
- Manufacturers Directory
The VIVO Height Adjustable Clamps & Rails are a two-piece clamp-on sliding mount for people who want to turn a compatible custom wood board into an under-desk keyboard tray. They support trays at least 10.5 inches wide, 0.6 inches thick, and up to 11 pounds, with five height settings.
Recommended For
- DIY desk builders who already have, or can make, a wooden keyboard platform and want to choose its width or shape instead of using a supplied tray.
- People who want to clear keyboard and mouse space from the desktop by sliding their own tray underneath when it is not in use.
- Desk users who want a clamp-on sliding tray without drilling into the desktop, provided its edge and underside allow the clamps and rails to fit.
- Typists who need to position a custom tray at one of several fixed heights; the brackets provide five settings across 2.4 inches of adjustment.
Real-World Use Scenarios
- When a desk is used for both computer work and writing or other projects, users can build a wooden keyboard surface to fit their setup, then slide it underneath when they need the desktop clear.
- For a compact or unusually shaped desk where a standard tray may not fit, users can cut their own wood platform to size and create a pull-out spot for a keyboard and mouse.
- When the desktop sits too high for comfortable typing, users can set the custom tray at a lower position and adjust its height to better match their seated setup; the result depends on chair height and leg clearance.
- For users who want to avoid drilling into a desk, the clamps provide a way to attach a custom tray at the desk edge; they can slide it out for typing and push it back when finished, provided the desk edge and underside have enough clearance.
- When a desk has a shelf or other hardware beneath it, users can position a custom-size tray to work around the available space, as long as the clamps and sliding rails do not hit the obstruction.
Spec Summary
| Attribute | Value |
|---|---|
| Best For | Under-desk sliding keyboard-tray mounting with height-adjustable rails |
| Material And Finish | Steel construction in black |
| Style | Slider |
| Weight | 2.018 kg |
| Model Identifiers | VIVO MOUNT-RAIL02H |
Reference Q&A
Q: Should I get the VIVO custom wood tray rails or the VIVO KB05HB keyboard tray?
A: Choose the MOUNT-RAIL02H if you want to choose your own tray material and dimensions while keeping five height settings across 2.4 inches of adjustment. Choose the MOUNT-KB05HB for a ready-made 26.8-by-11-inch tray with the same five-setting, 2.4-inch height adjustment.
Q: How does the VIVO MOUNT-RAIL02H compare with the standard MOUNT-RAIL02?
A: Choose the MOUNT-RAIL02H when you want five height positions and 2.4 inches of adjustment for your custom tray. The MOUNT-RAIL02 is the standard clamp-and-rail set for shoppers who want to build around their own wooden tray without the height-adjustable bracket feature.
Q: Is the VIVO custom wood rail set or the VIVO KB05ES better for a compact keyboard setup?
A: Choose the MOUNT-RAIL02H if you want to select a custom tray size and material. Choose the MOUNT-KB05ES if a ready-made 20-by-11-inch tray suits your setup; it is VIVO’s compact clamp-on tray.
Q: Should I choose the custom wood rails or the VIVO keyboard tray with drawer?
A: Choose the MOUNT-RAIL02H to create a sliding tray using your preferred wood surface, with five height settings. Choose the MOUNT-KB05HB-DR if you want a ready-made keyboard tray that also includes an accessory drawer.
Q: Will this fit my desk and custom keyboard tray?
A: Check both the desk and the tray before buying: the desk surface must be no more than 1.75 inches thick, and your wooden tray must be at least 10.5 inches wide, 0.6 inches thick, and weigh no more than 11 pounds. Also check that the clamp and sliding rails have an unobstructed mounting path beneath the desk.
Q: Does this include the keyboard tray, or do I need to supply one?
A: You need to supply a compatible wooden tray. This pack provides the clamps, sliding rails, and mounting hardware to attach that tray under your desk; it is not a complete keyboard-tray surface.
Q: Can I adjust the tray height, and does it slide out of the way?
A: Yes. The brackets offer 2.4 inches of height adjustment across five set points, and the rails let the tray slide in and out beneath the desk. The product information does not specify a tilt adjustment.
Q: Does it require drilling, and could the clamps scratch my desk?
A: The rails attach with hand-tightened C-clamps, and the clamps have anti-skid padding intended to protect the desk surface. The product information does not describe drilling as part of installation; confirm the clamp fit and underside clearance before mounting.
Q: Can I use this to make a custom-size keyboard tray?
A: Yes, if you supply the tray board and it meets the listed minimums: 10.5 inches wide, 0.6 inches thick, and no more than 11 pounds. Reddit users describe using the rails with cut-to-size wood; the tray itself is not included.
Q: Is it suitable for a MIDI keyboard or controller?
A: It may work if the board and controller together stay within the 11-pound capacity and fit your desk setup. A Reddit user recommending the rails specifically cautioned buyers to check the weight limit; the post’s 61-key controller request does not establish that heavier controllers are supported.
Q: Could this work for a sim-racing setup?
A: A Reddit user used the VIVO clamp-and-rail set with a custom wood board under a sim-racing wheel. Fit depends on your rig’s knee clearance and available mounting space, so check those before buying.
