VIVO Quad Ultrawide Heavy Duty Pneumatic Arm Wall Monitor Mount, Fits Four 38 Screens, Height Adjustable With 140lb Capacity

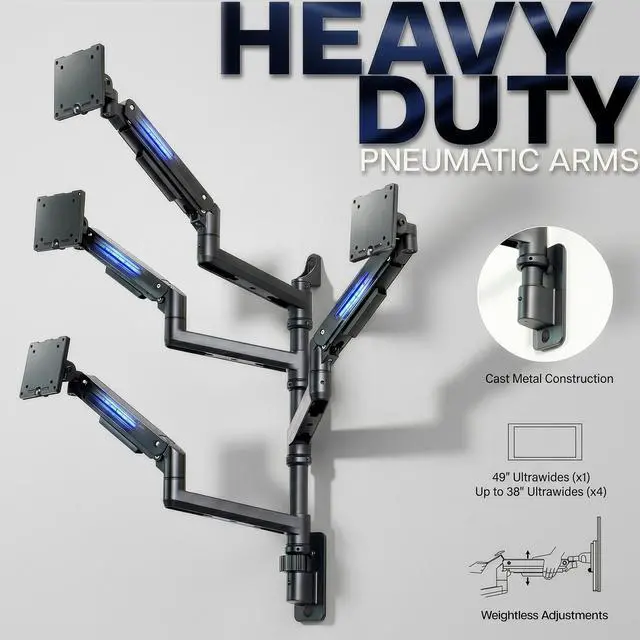

Build the ultimate quad-screen layout with the VIVO Quad Ultrawide Wall Mount, combining the strength of industrial-grade aluminum with the fluidity of pneumatic motion. Engineered to support up to 140.8 lbs, this heavy-duty system easily handles four 38 ultrawide monitors or a single 49 and three 22 screen mix with zero sagging. The 10.4 of gas-spring height adjustment lets you reposition your entire array with a single hand, while internal counterbalance tension perfectly offsets the weight of your specific displays for a weightless feel. The extra-tall 23 pole provides the vertical clearance needed for true stacked monitor tiers, featuring a massive 38.5 arm span and full 360° rotation for instant transitions between landscape and portrait orientations. Weve simplified the setup with quick-release VESA plates and internal cable management, leaving you with a professional and clutter-free control center aesthetic that reclaims your entire desk space.

Compatibility

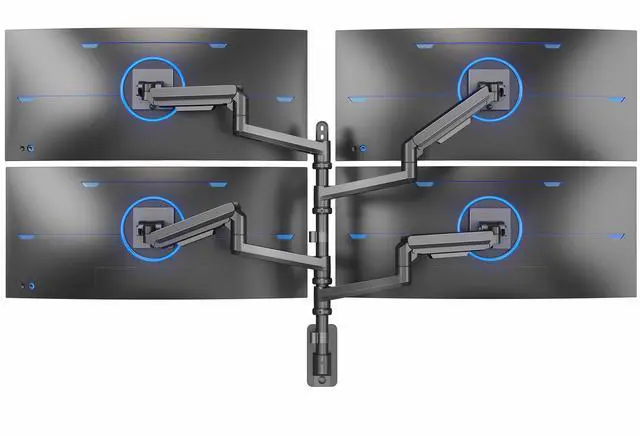

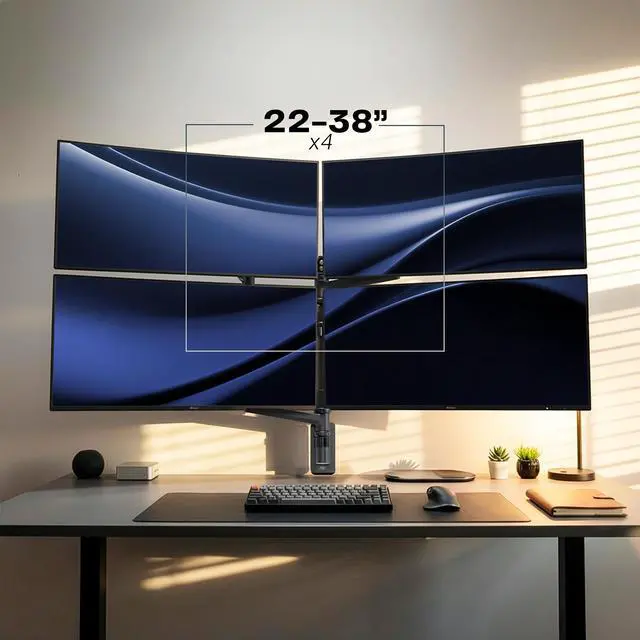

• Screen Size: Up to 49 Ultrawides (x1) with 22 screens (x3), Up to 38 Ultrawides (x4)

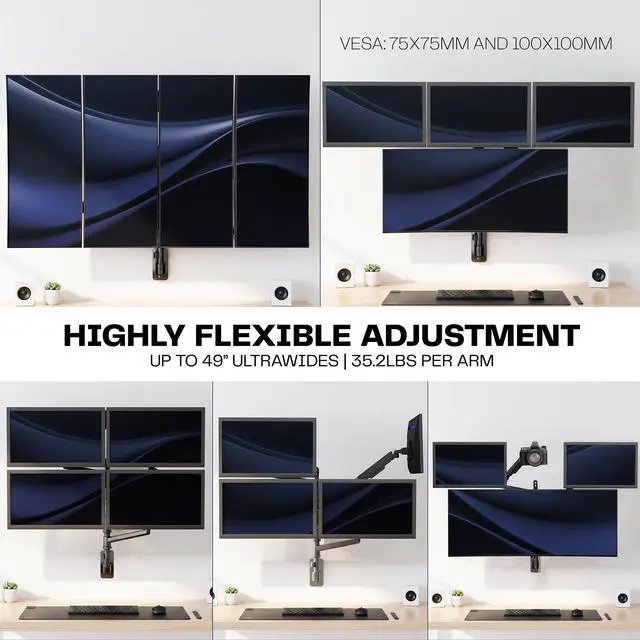

• VESA Standard: 75x75mm and 100x100mm

• Weight Capacity: 4.4-35.2lbs per arm

Specifications

• Color: Black

• Material: Aluminum, Steel, Plastic

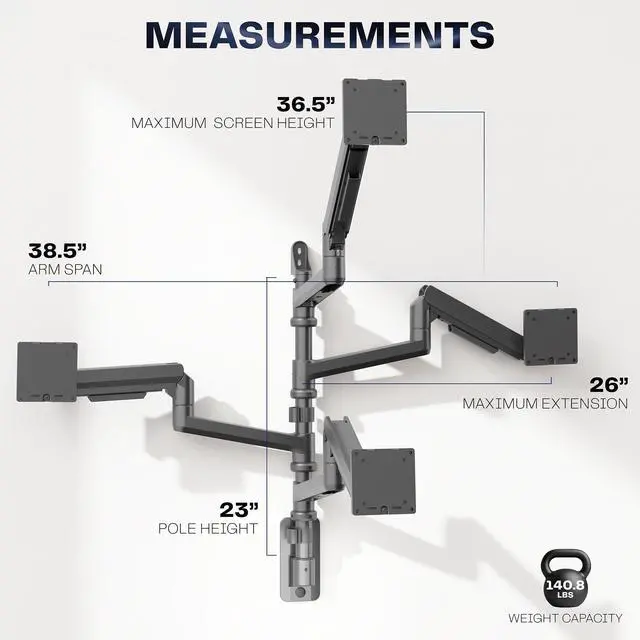

• Pole Height: 23

• Maximum Screen Height: 36.5

• Arm Span: 38.5

• Maximum Extension: 26

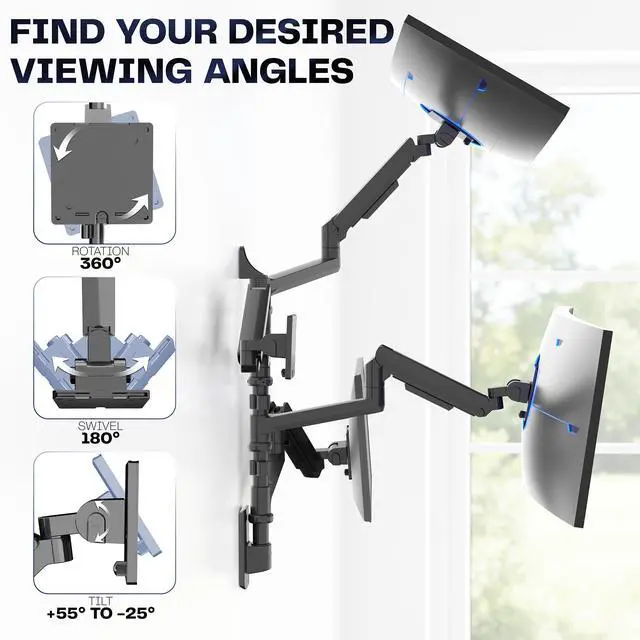

• Articulation: +55° to -25° tilt, 180° swivel, and 360° rotation

• Height Adjustment: 10.4 with Pneumatic Arms

Additional Measurements

• Total Product Dimensions: 43 x 24.5 x 39.5

• Minimum Screen Size: 22

• Pole Diameter: 1.4

• Total Weight Capacity: 140.8 lbs
