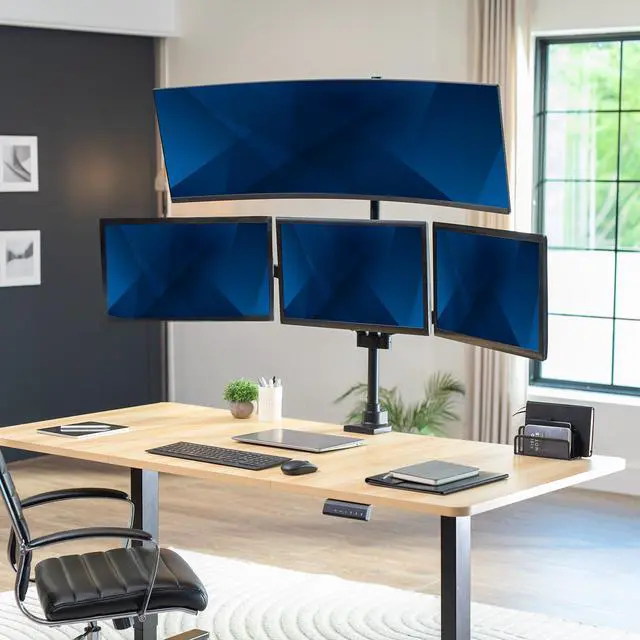

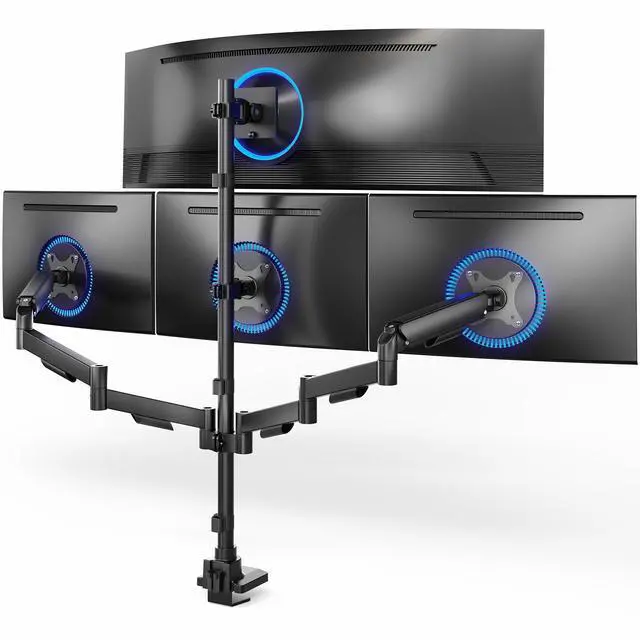

VIVO Quad Monitor Desk Mount, 2 Mechanical Arms + 2 Fixed Arms, 103.4 Capacity

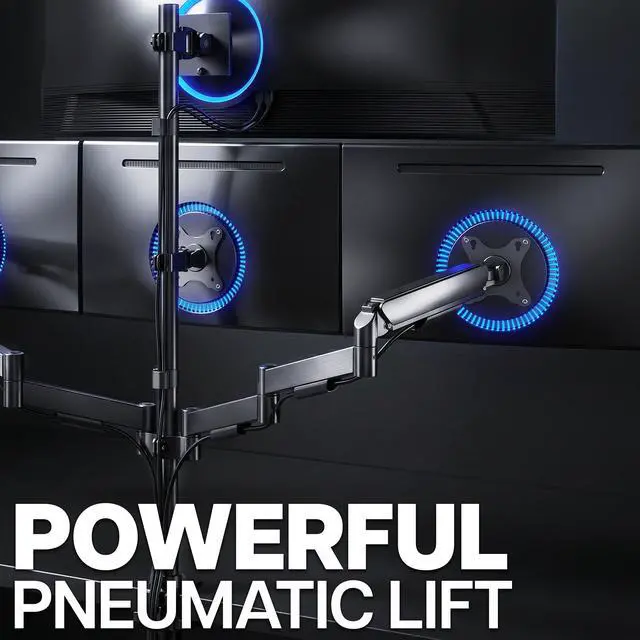

The VIVO STAND-V104G puts four monitors on a single 44 steel pole with a 70 arm span, replacing four individual stands and reclaiming serious desk space in the process. Two fixed pole arms keep your side screens locked in position, while two mechanical spring arms on the sides let you reposition displays with a single touch, adjusting screen height up to 14.5 inches along the pole so your entire array sits at a perfectly aligned height. The lower three brackets can each hold a 24 to 28 monitor, while the single upper bracket can hold a 24 to 49 ultrawide monitor. Each arm includes three adjustable joints with +90° to -90° tilt, 180° swivel, and 360° rotation, so every monitor can be independently dialed in for the exact viewing angle you need (whether you are gaming, multitasking, or running a trading desk). The stand handles flat and curved screens with VESA compatibility for 75x75mm and 100x100mm patterns, with a total weight capacity of 103.4 lbs spread across all four arms. Securing the base to your desk is handled by a heavy-duty clamp mounting option for desktops with a thickness of 0.4 to 1.77, and a grommet mounting option for desktops with a thickness of 0.4 to 1.57. Detachable VESA plates make getting the monitors attached straightforward from the start. Integrated cable clips run along the arms and center pole to keep all four monitor cords routed cleanly. Every piece of hardware and the instruction guide come included, so the whole setup goes together without a parts run.

Compatibility:KEY_TAB

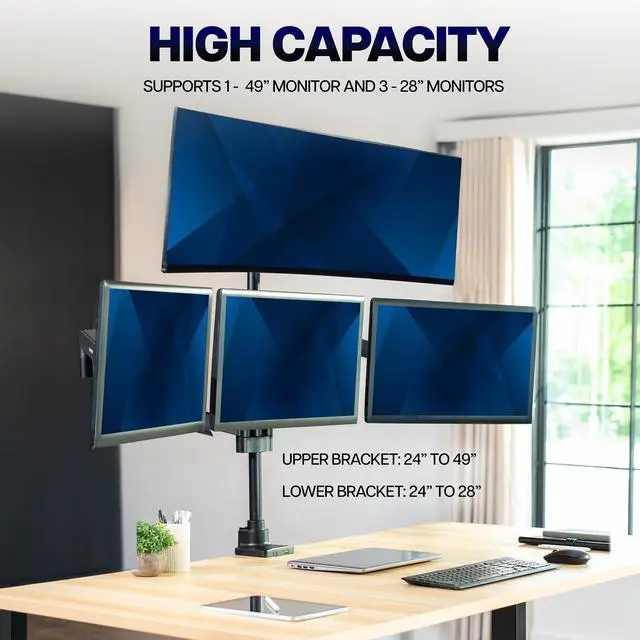

• Lower Bracket Screen Sizes (x3): Fits 24 to 28 Monitors (x3)

• Upper Bracket Screen Size (x1): Fits 24 to 49 Ultrawides

• Screen Type: Flat and Curved

• VESA Standard: 75x75mm and 100x100mm

• Desktop Thickness for Clamp: 0.4 to 1.77

• Desktop Thickness for Grommet: 0.4 to 1.57

• Side VESA Bracket Weight Capacity: 19.8 lbs (9kg) per monitor

• Center VESA Bracket Weight Capacity: 19.8 lbs (9kg)

• (Flat Screen Monitor) Ultrawide VESA Bracket Weight Capacity: 44 lbs (20kg)

• (Curved Monitor) Ultrawide VESA Bracket Weight Capacity: 33 lbs (15kg)

• Total Weight Capacity: 103.4 lbs

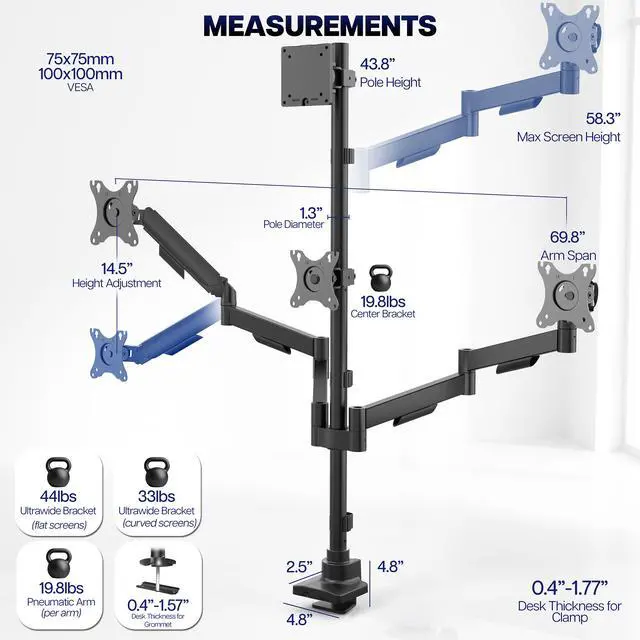

Specifications:

• Color: Black

• Material: Steel, Plastic

• Pole Height: 43.8

• Arm Span: 69.8

• Center Screen Extension: 4.5

• Base Dimensions: 4.8 x 4.8

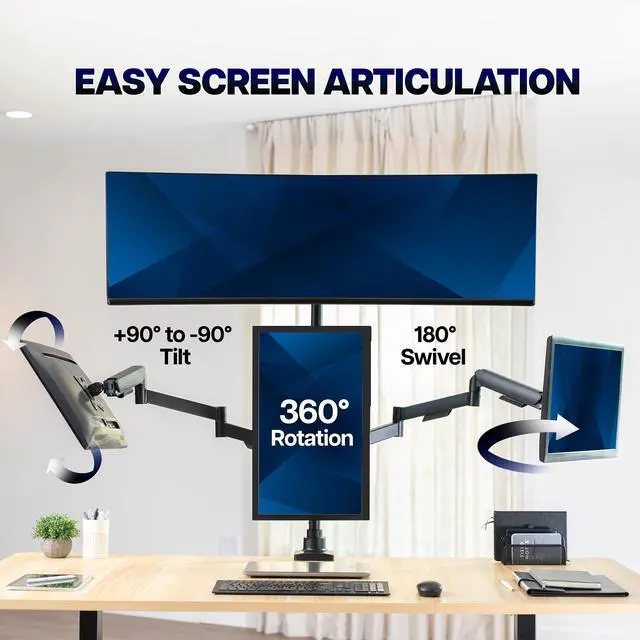

• Articulation: +90° to -90° tilt, 180° swivel, 360° rotation

• Maximum Screen Height: 58.3 (side arms)

• Height Adjustment: 14.5 with Mechanical Arms

• Mounting Options: Sturdy C-clamp and Grommet Mounting

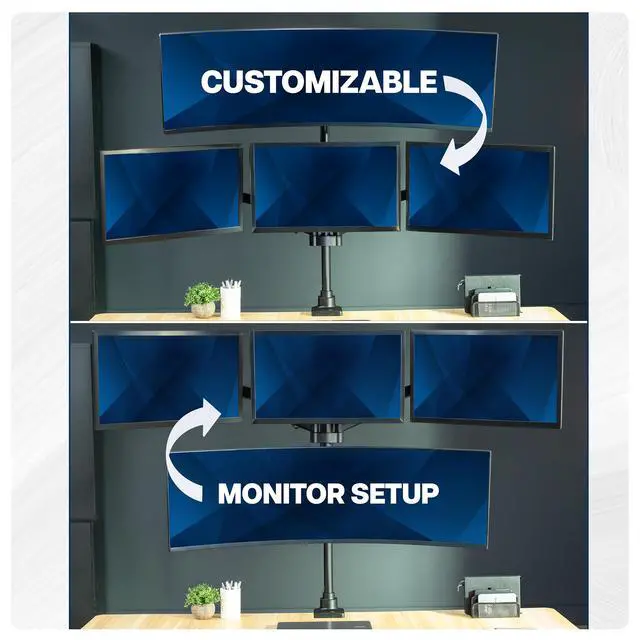

• Screen Orientation: Portrait or Landscape


Additional Measurements:

• Total Product Dimensions: 69.8 x 5.5 x 45

• Minimum Screen Size: 17

• Clamp Depth: 2.5

• Pole Diameter: 1.3
