For Raspberry Pi 4 Model B, Raspberry Pi 4 Screen, 3.5 inch Touch Screen with ABS Case Kit, Max 50FPS 480x320 Pixel Monitor TFT Touch LCD (Support Raspbian, Ubuntu, Kali, Retropie System )
- For the document and download information,please refer to: raspberrypiwiki.com/index.php/3.5_inch_LCD_B
- Note: 1. The Raspberry Pi 4B mother board is not included in all the packing list. 2. The black ABS case only suitable for this 3.5 inch screen with Raspberry Pi 4 Model B, do not support other Raspberry Pi versions.
- Physical resolution 320 x 480, with resistive touch control; it supports up to 125MHz SPI signal input, showing stable and no flicker
- Support Raspbian/Ubuntu/Kali/Retropie system, provide driver and image, please refer to: raspberrypiwiki.com/index.php/3.5_inch_LCD_B#Driver_Installation
- LCD Type: TFT; LCD driver IC: ILI9486L; LCD Interface: SPI (up to 125MHz SPI input, Max FPS: 50Mhz); Touch Screen Type: Resistive; Touch Screen Controller: XPT2046; Colors: 65536; Backlight: LED; Resolution: 320*480 (Pixel); Backlight Current: 120ma; Power: 0.16A x 5V; Operating Temp. (?): -20~70
Overview
Specs
Reviews
See all Q & A
Any questions? Our AI beta will help you find out quickly.
Try me now

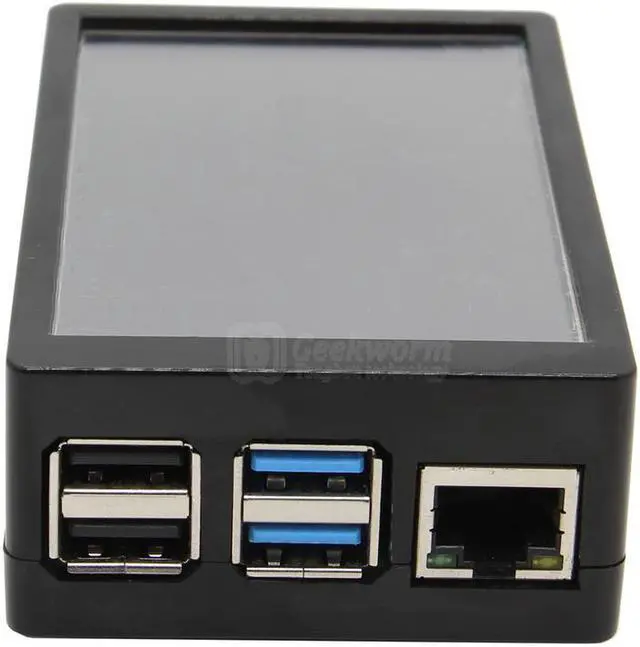

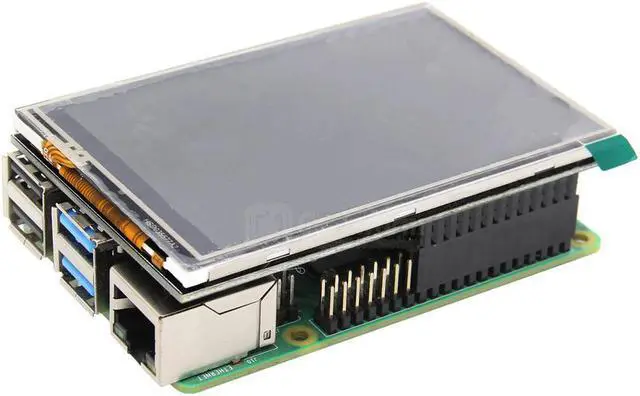

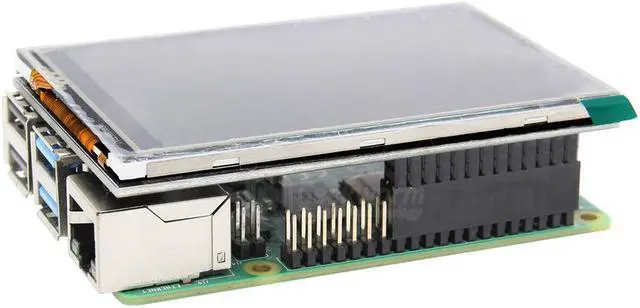

Overview This Raspberry Pi 4 3.5 inch LCD with ABS enclosure kit is a raspberry pi 3.5 Inch TFT Touch Screen with 480*320 physical resolution, it is compatible with the newest Raspberry Pi 4 Model B computer. Please note that the ABS case is specially designed for Raspberry Pi 4 Model B only.
Note: The Raspberry Pi 4B mother board is not included in all the packing list. The black ABS case only suitable for this 3.5 inch screen with Raspberry Pi 4 Model B, do not support other Raspberry Pi versions. Key Features 320×480 resolution Resistive touch control With the refresh rate of raspberry pi around 50Hz, play video to play the game without pressure Compatible with the newest Raspberry Pi 4 Model B Drivers provided (works with your own Raspbian/Ubuntu directly) Supports Raspbian system, ubuntu system, kali Linux system The ABS case is only compatible with Raspberry Pi 4
Model B WIKI for reference: www. raspberrypiwiki. com/index. php/ 3.5 _inch_LCD_B Key Parameters
LCD Type: TFT
LCD driver IC: ILI9486L Touch
Screen Type: Resistive
Touch Screen Controller: XPT2046
LCD Interface: SPI (up to 125MHz SPI input, Max
FPS: 50Mhz)
Colors: 65536
Backlight: LED
Resolution: 480 x 320 (Pixel)
Backlight Current: 120ma
Power: 0.16A x 5V Operating Temp.
(?
): -20~70
Packing List: 1 x 3.5 Inch TFT Touch Screen 1 x Touch pen 1 x Black ABS Case with screw packs for Raspberry Pi 4 Model B only
Note: The Raspberry Pi 4B mother board is not included in all the packing list. The black ABS case only suitable for this 3.5 inch screen with Raspberry Pi 4 Model B, do not support other Raspberry Pi versions. Key Features 320×480 resolution Resistive touch control With the refresh rate of raspberry pi around 50Hz, play video to play the game without pressure Compatible with the newest Raspberry Pi 4 Model B Drivers provided (works with your own Raspbian/Ubuntu directly) Supports Raspbian system, ubuntu system, kali Linux system The ABS case is only compatible with Raspberry Pi 4
Model B WIKI for reference: www. raspberrypiwiki. com/index. php/ 3.5 _inch_LCD_B Key Parameters
LCD Type: TFT
LCD driver IC: ILI9486L Touch
Screen Type: Resistive
Touch Screen Controller: XPT2046
LCD Interface: SPI (up to 125MHz SPI input, Max
FPS: 50Mhz)
Colors: 65536
Backlight: LED
Resolution: 480 x 320 (Pixel)
Backlight Current: 120ma
Power: 0.16A x 5V Operating Temp.
(?
): -20~70
Packing List: 1 x 3.5 Inch TFT Touch Screen 1 x Touch pen 1 x Black ABS Case with screw packs for Raspberry Pi 4 Model B only
