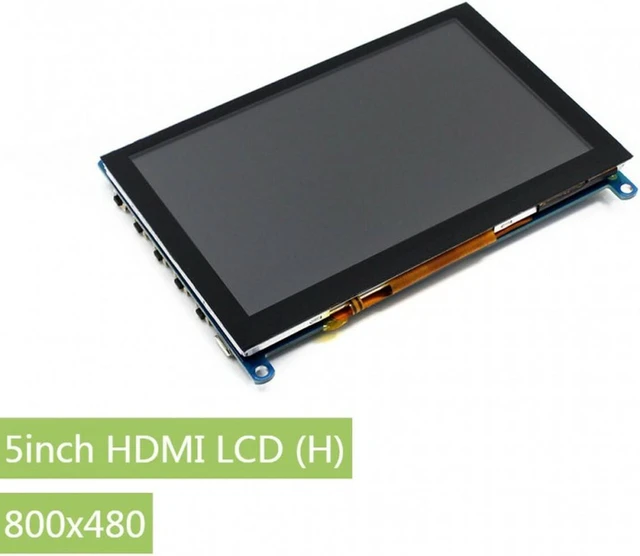

5inch HDMI LCD (H) Display, 800x480, Capacitive

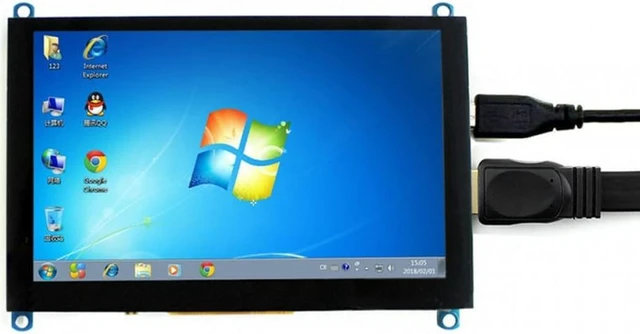

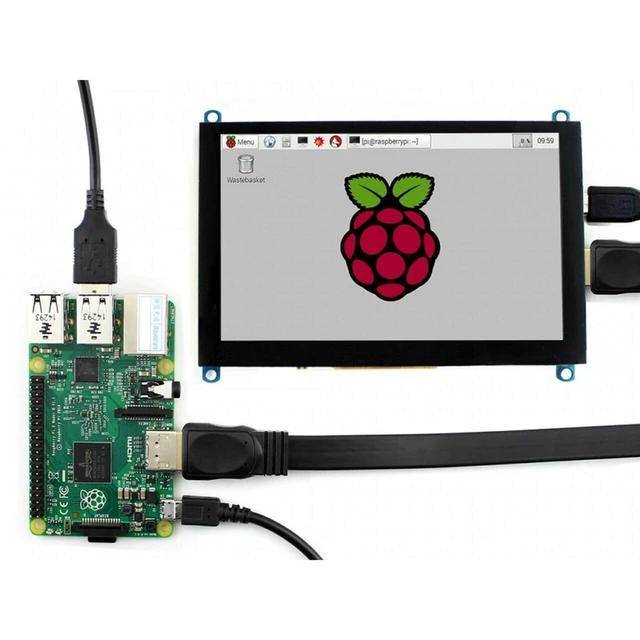

5inch 800x480 Capacitive Touch Screen LCD, HDMI interface. Supports multiple mini-PCs and Systems. Features 800x480 hardware resolution, configurable by software (up to 1920x1080) Supports popular mini PCs such as Raspberry Pi, BB Black, Banana Pi, as well as general desktop computers On the Raspberry Pi, it supports Raspbian, Ubuntu, WIN10 IOT, single touch, and driver free As a computer monitor, it supports Windows 10/ 8.1 /8/7, single touch, and driver free Supports popular game consoles like Microsoft XBOX360, Sony PS4, and Nintendo Switch, etc.

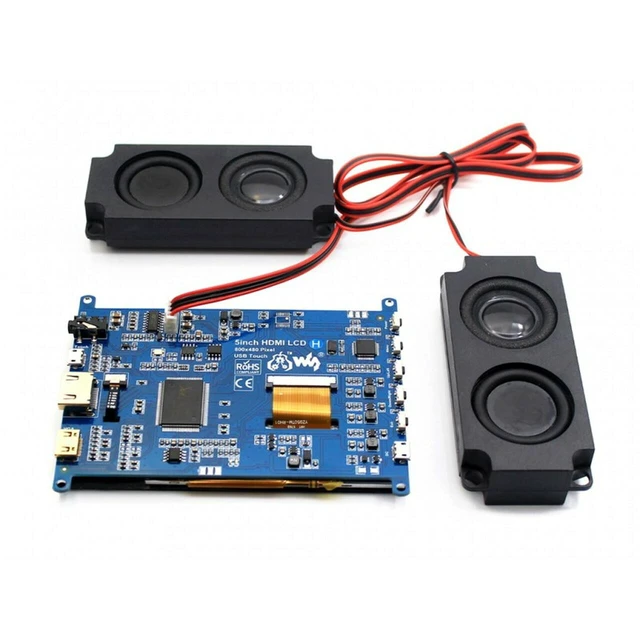

Multi languages OSD menu, for power management, brightness/contrast adjustment, etc. 3.5 mm audio jack, speaker connector, supports HDMI audio output Also supports VGA input (specific cable is required and should be purchased separately) FAQ Why doesn't the LCD work? Make sure the config. txt file has been modified as described in the wiki page. Make sure the hardware connection is correct. Make sure the image in TF card is burnt correctly. The PWR will keep on and the ACT will keep blinking when the Raspberry Pi starts up successfully, in case both of the two LEDs keep on, it is possible that the image was burnt incorrectly OR the TF card was in bad contact.

Which power supply should I use? It is recommended to use a 5V/2A power adapter for the Raspberry Pi other than the USB connection, otherwise the Pi may fail to start up because the PC's USB port might have not enough power.
