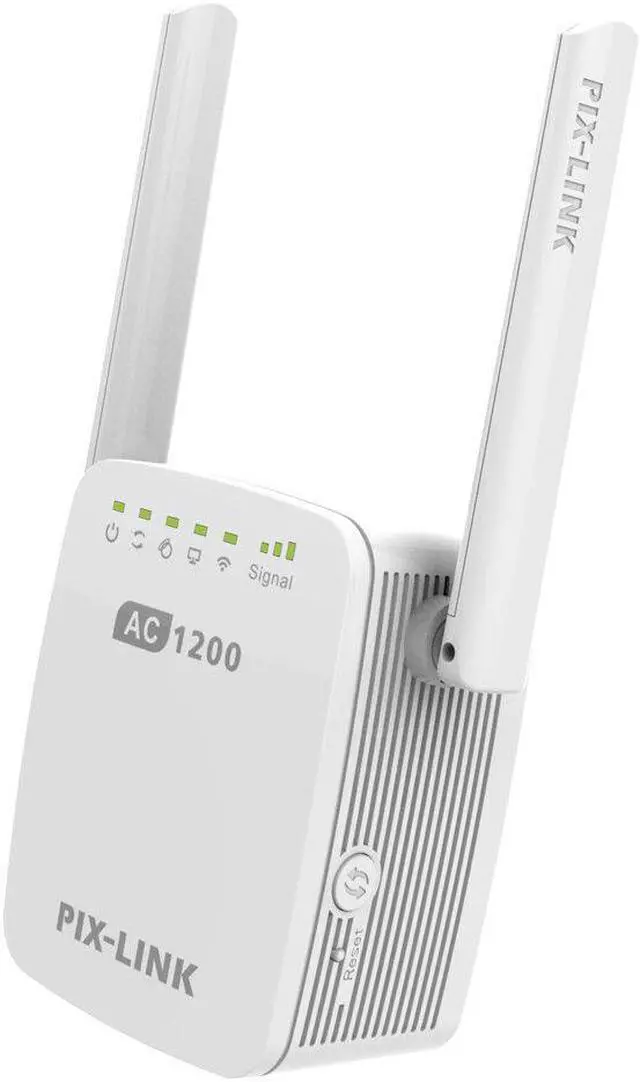

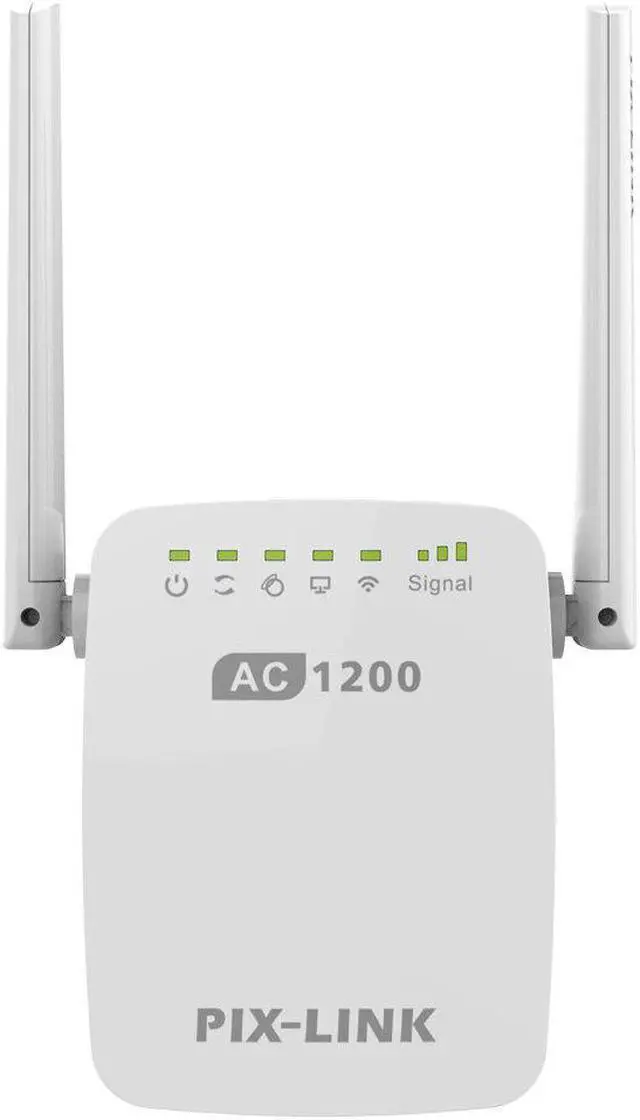

LV-AC12 1200Mbps WiFi Extender AC Dual Band Repeater Wireless AP Expand WiFi Coverage

Specifications:

Brand



Model

LV-AC12

Plug type

EU, US

Standard

IEEE 802.11ac/ n/ g/ b

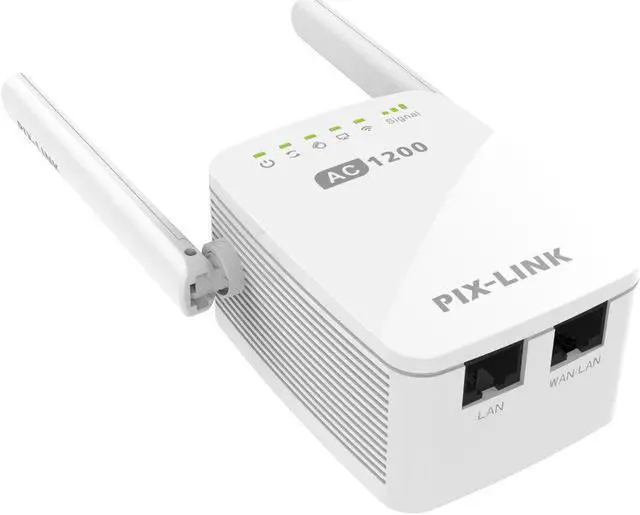

Interface

1*10/100Mbps LAN port

1*10/100Mbps LAN/WAN port

Button

WPS button, reset button

Antenna

2*External

Dimension (WxDxH)

88x78x40.5mm

Frequency

2.4GHz & 5GHz (11ac)

Signal rate

5GHz: Up to 867Mbps

2.4GHz: Up to 300Mbps

Reception Sensitivity

5GHz

11a 6Mbps:-93dBm@10% PER

11a 54Mbps: -76dBm@10% PER

11ac HT20 mcs8: -69dBm@10% PER

11ac HT40 mcs9: -64dBm@10% PER

11ac HT80 mcs9: -61dBm@10% PER

2.4GHz

11g 54M: -78dBm@10% PER

11n HT20 mcs7: -75dBm@10% PER

11n HT40 mcs7: -73dBm@10% PER

Transmit Power

<20dBm(2.4GHz)

<18dBm(5GHz)

Wireless Modes

Repeater/AP/Router

Wireless Security

64/128/152-bit WEP

WPA-PSK / WPA2-PSK

Environment

Operating Temperature: 0°C~40°C (32°F~104°F)

Storage Temperature: -40°C~70°C (-40°F~158°F)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing

Package Contents

1xWireless-AC Repeater/AP/Router

1xRJ-45 Ethernet Cable

1xQuick Installation Guide

Features:

1. Easily expand your WiFi coverage

2. The AC delivers ultra fast WiFi speeds up to 867Mbps on the 5GHz band and 300Mbps on the 2.4GHz band.

3. The intelligent signal light helps you quickly find the best location to install the AC router.

4. The Ethernt port allows the extender to function as a wireless adapter to connect wired devices.

Package Included:

1 X LV-AC12 1200Mbps wireless AC dual band repeater
