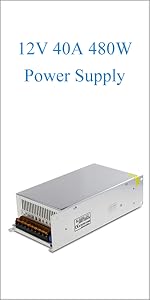

 12V 15A 180W Adapter |  12V 120W Security Camera CCTV Power Supply 16 Channel |  12V 30A 360W Power Supply |  12V 50A 600W Power Supply |  12V 83A 996W Power Supply |  12V 40A 480W Power Supply | |
|---|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — | — |
| Price | — | — | — | — | — | — |
| Output Amps | 15A | 10A | 30A | 50A | 83A | 40A |
| Output Watts | 180W | 120W | 360W | 600W | 996W | 480W |
| Input Volts | 100~240V AC | 100~240V AC | 110V/220V AC | 110V/220V AC | 110V/220V AC | 110V/220V AC |
| Output Port | Barrel Connector | Terminal Screw | Terminal Pole | Terminal Pole | Terminal Pole | Terminal screw |
| Output Channel | 1 | 16 | 1 | 1 | 1 | 3 |
| With Power Cord | ? | ? | ? | ? | ? | X |

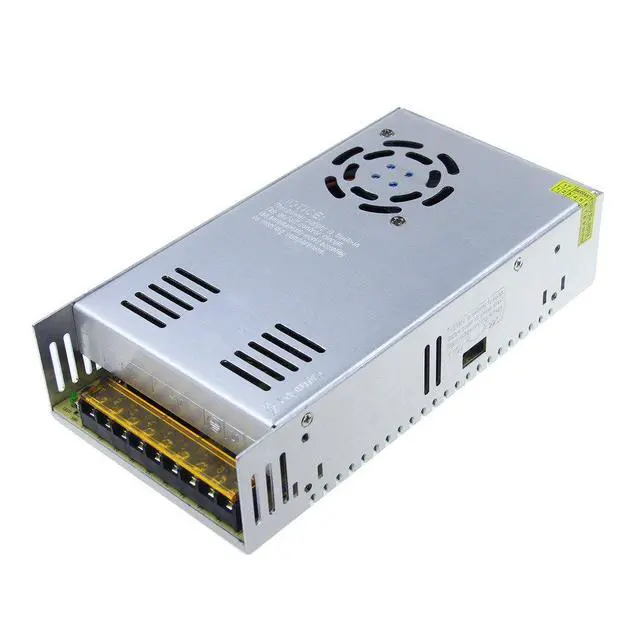

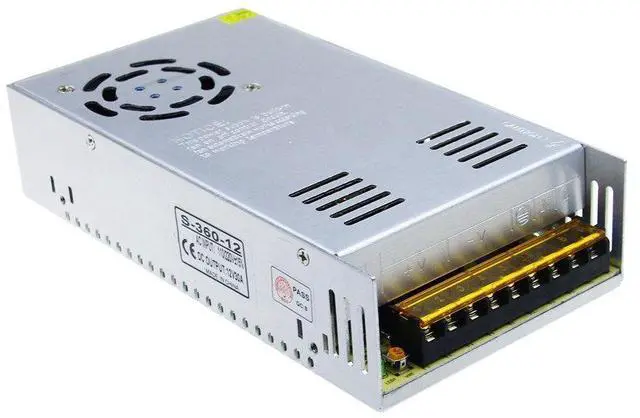

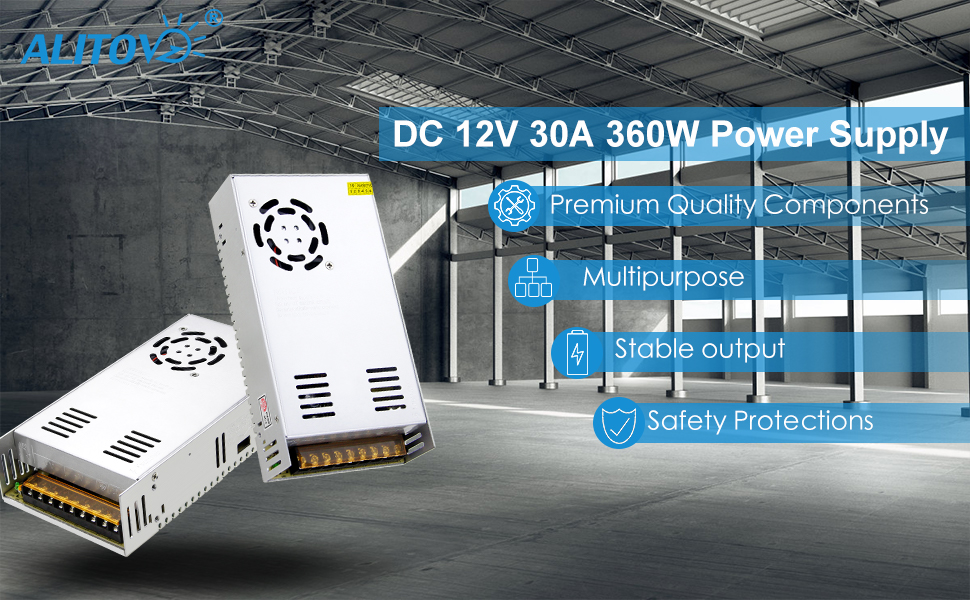

Parameter
- Input: AC 100V~120V / 200V~260V 50/60Hz
- Output Voltage : DC 12V ( ±10% adjustable, 10.8V~13.2V)
- Output Current: 30A max
- Output Wattage: 360W max

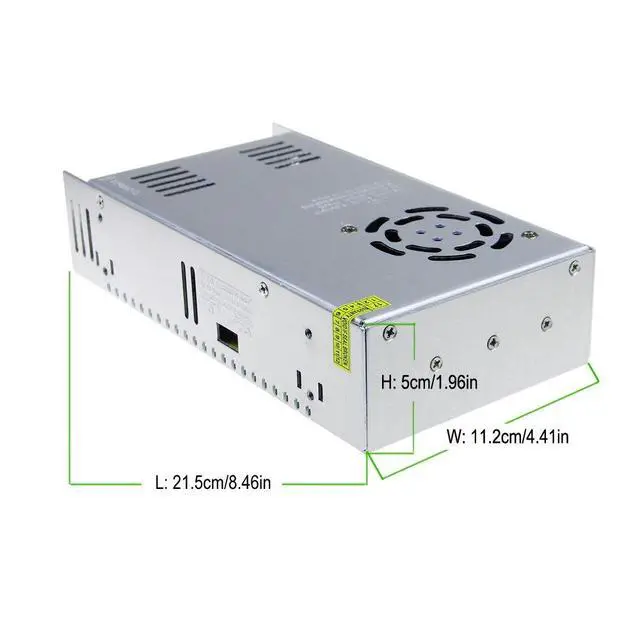

- Fix Screw Hole Diameter: 4mm (0.15inch)
- Working temperature: -10? ~50? (-50 ? ~ 122?)
- Storage temperature: -20? ~ 60? (-68 ? ~ 140?)
- Environmental humidity: 10-95%
- Safety Compliance: FCC / CE /Rohs
Kindly note
- We suggest the max use of power should be no more than 80% of the full loads, otherwise,the power supply's spanlife will be shortened. We recommend you to use this 12V 30A 360W power supply to power devices less than 288W.

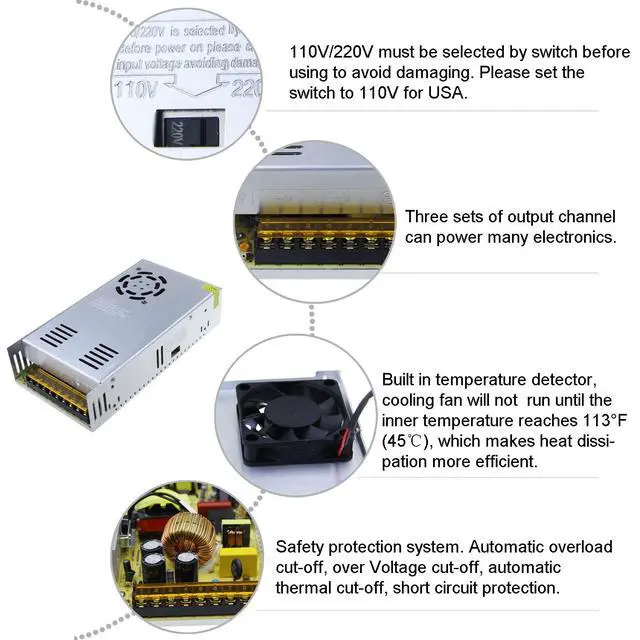

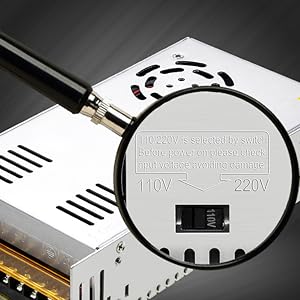

- 110V/220V must be selected by switch before using to avoid damaging. Please change the switch to 110V for USA/CA and 220V for EUR.

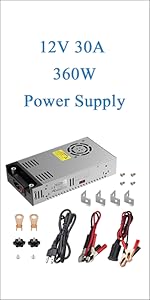

Package included
- 1 x 12V 30A Power Supply (Power cord is NOT included.)
Superior Safety
Built-in safeguards to protect against over voltage, over current, overheat, short-circuit, which will provide ultimate protection for you and your devices.

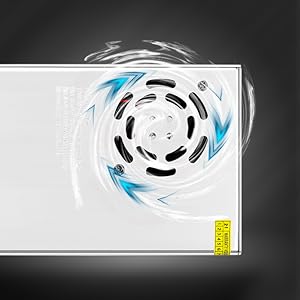

Intelligent Temp control
It comes with built-in cooling fan and temperature detector. Cooling fan will automatically run when the inner temperature reaches 113°F (45?), which makes heat dissipation more efficient and silent.

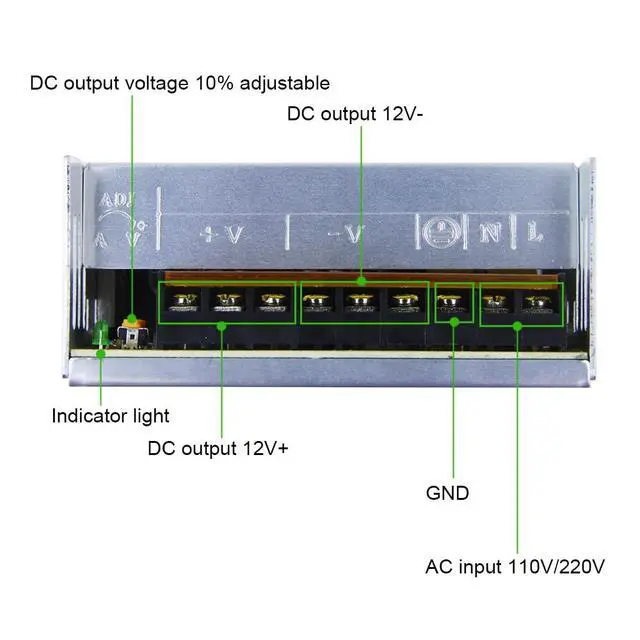

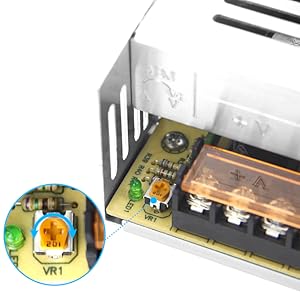

±10% Voltage Adjustment
The output voltage can be regulated by ±10%, from 10.8V to 13.2V, which greatly expand its application range. It can supply with any current ( less than 30A) your device draws, such as 10A, 15A, 20A, 25A, 30A.

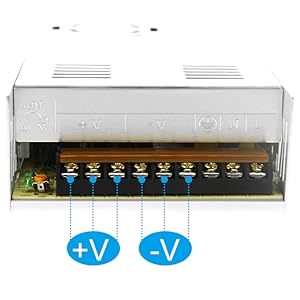

Three Output Channels
With three independent output channels, it can power more devices. The maximum output of each channel can reach 10A 120W. Total output power of the three channels is 30A 360W.

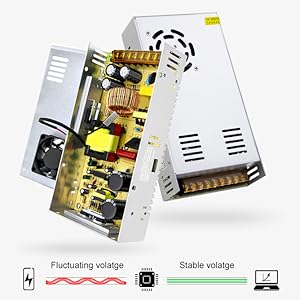

Stable Output

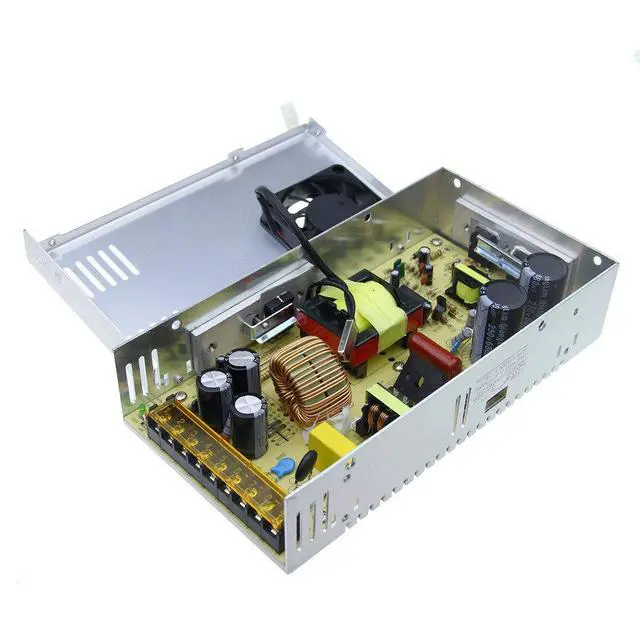

Built-in advanced synchronous rectifier smart chip and EMI filter, convert fluctuating voltage to stable voltage, effectively reduce electromagnetic interference.
Warning!
110V/220V must be selected by switch before using to avoid damaging. Please change the switch to 110V for USA/CA and 220V for EUR.
