20A 240W
DC 36V/48V Step Down to 12V Converter Regulator Reducer
100% full rated power, 100% full stable output Current, Cooling by free air convection.

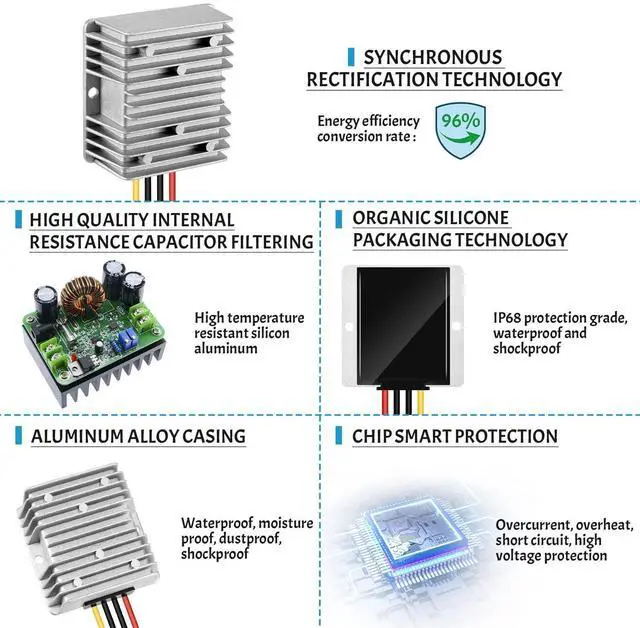

Advanced organic silica gel filling sealing craft
Waterproof alloy housing
- Die-Cast Aluminum Housing with epoxy-sealed containers
- High-temperature resistance
- Better thermal dissipation effect

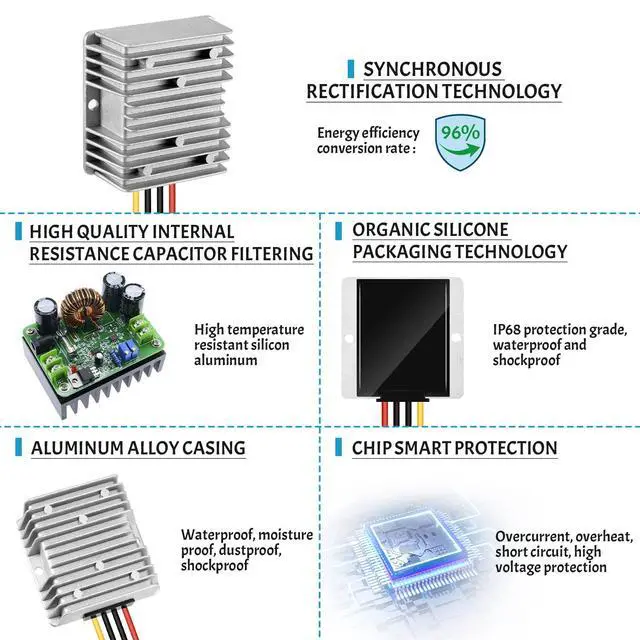

Advance Chip
- Kohree car power adapter provides multi-protections:over-current, over-voltage, over-temperature, over-load and short-circuit, auto-recovery when the device is back to normal operating.
Import high heat conduction technology

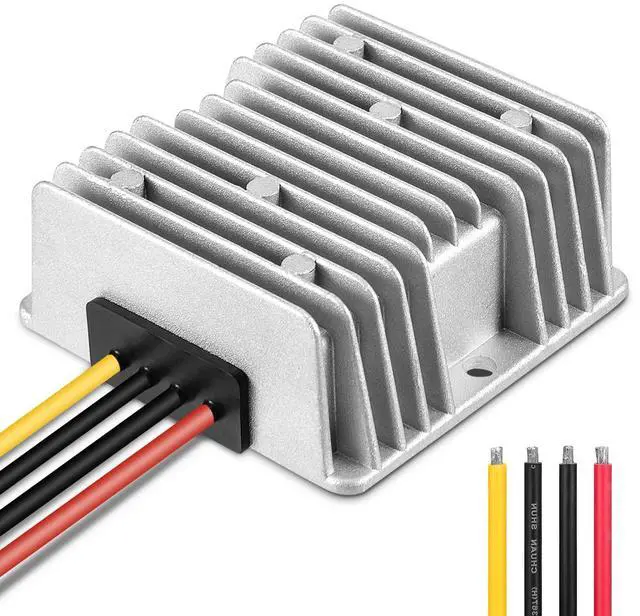

DC 36V/48V to 12V 20A 240W Converter Regulator
- Kohree waterproof power converter regulator, adopting synchronous voltage regulator technology and full importing of original components, can convert unstable voltage DC 36V/48V to stable DC 12V 20A output.
Ultra-low impedance high-frequency filter
- Inductance: iron-silicon magnetic ring high temperature and super stable
- Electrolytic capacitor: ultra-low resistance 20mO. Working more than 1000 hours at 105 ° C
Where to use:
Golf Cart
LED Display
Photovoltaic Panel
Other Industrial Equipment
If the converter does not work, please check this following steps:
1. Please check whether the power supply has a voltage
2. Whether the terminals are in poor contact and whether the wire ends are connected securely

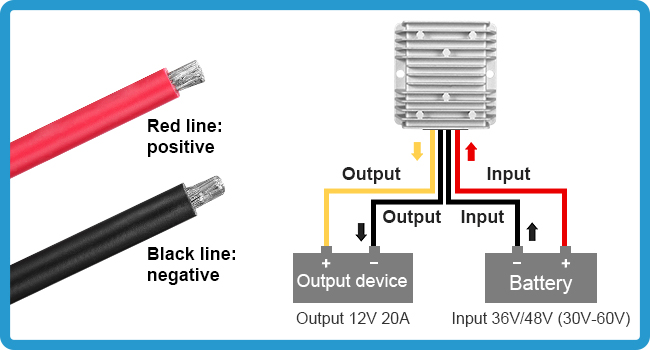

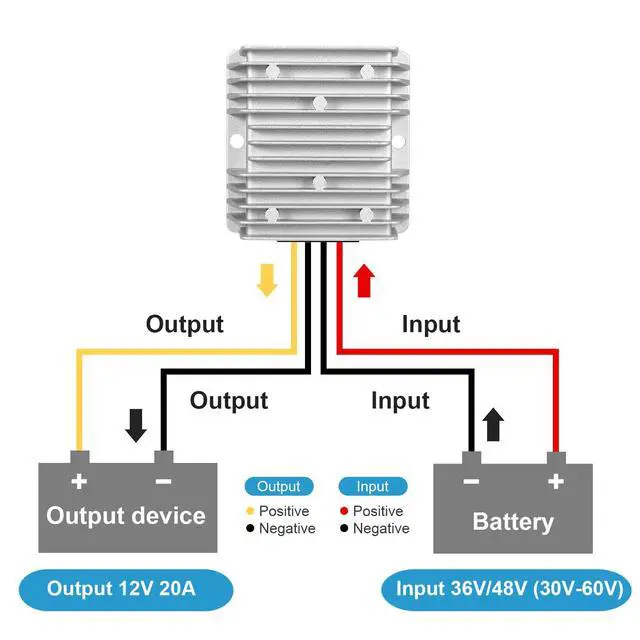

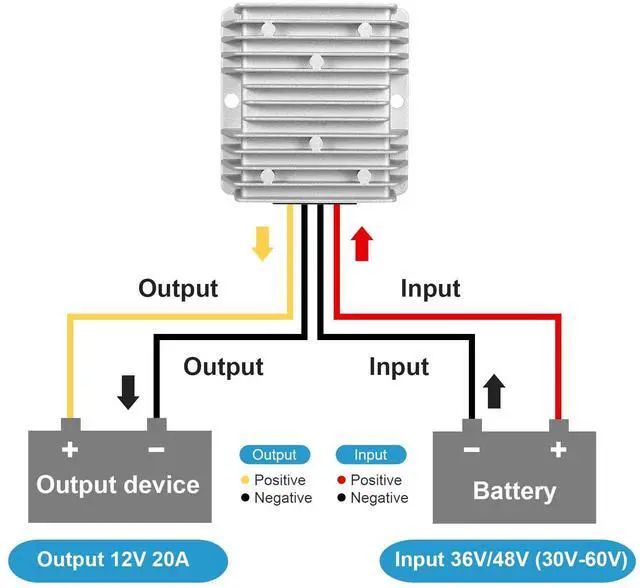

3. Please check whether the wires are installed as shown in the pictures and instructions. If the wires are not installed correctly, the voltage regulator will not work
If all the above are correct, please reach out to us and we will solve your problem immediately.
A Series Products from Kohree
 Step-down Converter |  Step-down Converter |  Step-down Converter |  12 Way Boat Fuse Block |  6 Way Boat Fuse Block | |
|---|---|---|---|---|---|
Customer Reviews | — | — | — | — | — |
Price | — | — | — | — | — |
Features | 36V/48V to 12V | 24V to 12V | 36V/48V to 12V | 12 Way 12V with LED Indicator | 6 Way 12V with LED Indicator |
Watt | 240W | 240W | 120W | — | — |
Current | DC | DC | DC | — | — |
Waterproof | ? | ? | ? | ? | ? |
Recommendation | ? | ? | ? | ? | ? |
DC 36V/48V Step Down to 12V Converter Regulator Reducer
100% full rated power, 100% full stable output Current, Cooling by free air convection.

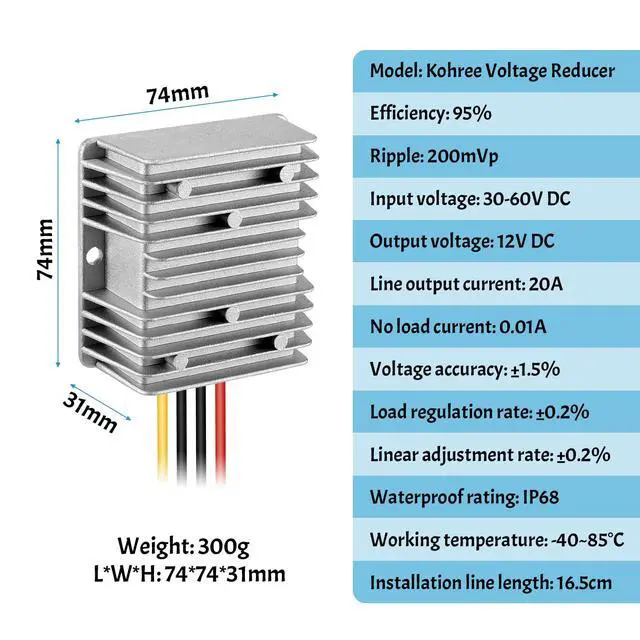

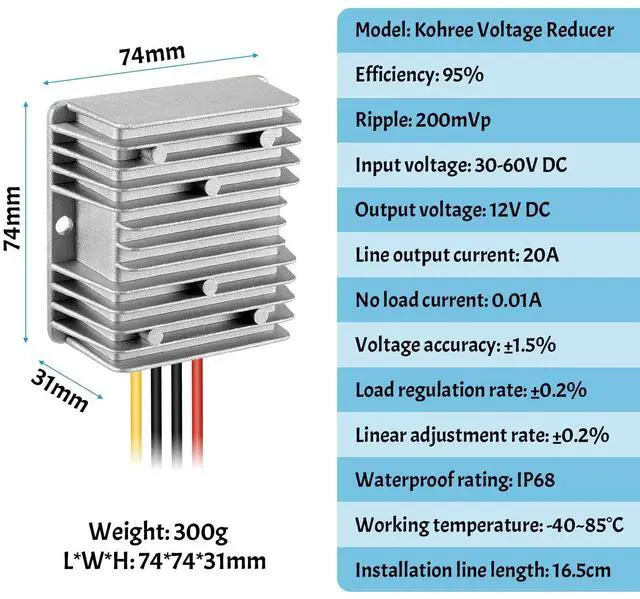

| Model | 36V/48V down to12V 20A 240W |
|---|---|
| Efficiency | 95% |
| Ripple | 200mVp |
| Input voltage | 36V/48V DC |
| Output voltage | 12V DC |
| Line output current | 20A |
| No load current | 0.01A |
| Voltage accuracy | ±1.5% |
| Load regulation rate | ±0.2% |
| Linear adjustment rate | ±0.2% |
| Waterproof rating | IP68 |
| Working temperature | -40~85°C |
| Installation line length | 16.5cm |
| ackage Included | 1 x DC 36V/48V to 12V step-down 20A 240W converter |
Advanced organic silica gel filling sealing craft
Waterproof alloy housing
- Die-Cast Aluminum Housing with epoxy-sealed containers
- High-temperature resistance
- Better thermal dissipation effect
Advance Chip
- Kohree car power adapter provides multi-protections:over-current, over-voltage, over-temperature, over-load and short-circuit, auto-recovery when the device is back to normal operating.
Import high heat conduction technology
DC 36V/48V to 12V 20A 240W Converter Regulator
- Kohree waterproof power converter regulator, adopting synchronous voltage regulator technology and full importing of original components, can convert unstable voltage DC 36V/48V to stable DC 12V 20A output.
Ultra-low impedance high-frequency filter
- Inductance: iron-silicon magnetic ring high temperature and super stable
- Electrolytic capacitor: ultra-low resistance 20mO. Working more than 1000 hours at 105 ° C
Where to use:
Golf Cart
LED Display
Photovoltaic Panel
Other Industrial Equipment
If the converter does not work, please check this following steps:
1. Please check whether the power supply has a voltage
2. Whether the terminals are in poor contact and whether the wire ends are connected securely
3. Please check whether the wires are installed as shown in the pictures and instructions. If the wires are not installed correctly, the voltage regulator will not work
If all the above are correct, please reach out to us and we will solve your problem immediately.
A Series Products from Kohree
Step-down Converter | Step-down Converter | Step-down Converter | 12 Way Boat Fuse Block | 6 Way Boat Fuse Block |
|---|---|---|---|---|
| Customer Reviews | ||||
| — | — | — | — | — |
| Price | ||||
| — | — | — | — | — |
| Features | ||||
| 36V/48V to 12V | 24V to 12V | 36V/48V to 12V | 12 Way 12V with LED Indicator | 6 Way 12V with LED Indicator |
| Watt | ||||
| 240W | 240W | 120W | — | — |
| Current | ||||
| DC | DC | DC | — | — |
| Waterproof | ||||
| ? | ? | ? | ? | ? |
| Recommendation | ||||
| ? | ? | ? | ? | ? |
