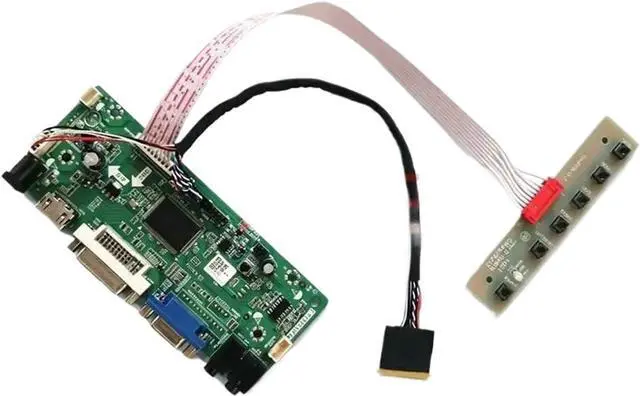

Controller Board Fit LTN173KT01 N173O6 LTN173KT03 LTN173KT02 1600x900 VGA DVI HDMI 1600*900 Laptop Monitor Panel LVDS 40-Pin Kit(for LTN173KT02-B01)
- Stable Industrial-Grade Circuit Design:This laptop power control module is a practical notebook replacement part with premium IC, solid capacitors and thick copper traces. Stable circuit design prevents random shutdown, screen flicker and abnormal fan noise under long heavy workloads.
- Strict Pre-Shipment Full Testing:Every laptop IO controller board undergoes aging, voltage and signal tests before shipment. As handy DIY repair accessory for technicians, flawed boards are filtered to avoid extra secondary repair troubles.
- Full Function Recovery After Repair:This notebook logic replacement board fixes common laptop issues: no power on, boot loop, black screen, unresponsive keyboard, unstable temperature, sleep failure and defective built-in USB ports.
- Complete Matching Accessories Package:Convenient all-in-one repair accessory set for controller replacement. It includes matching flex cables, key control sub-board and installation parts as pictured, no extra spare parts required for q
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Please read the following instructions carefully before purchasing:
1, Please ensure that your screen can still power on and display normally. If your screen is damaged, please do not place an order as the controller board cannot repair or drive the damaged screen. You can connect the screen to the original monitor for testing. Or use a screen tester for testing.
2, We will install driver firmware for free based on your screen parameters so that the controller board can function properly. So, please select the model from the list that is exactly the same as your screen (including the model suffix). If your screen model is not on our sales list. Please send us photo of the model label and signal port on the back of the screen first to help you confirm (do not place an order blindly to avoid unnecessary disputes). As shown in the reference photo below:

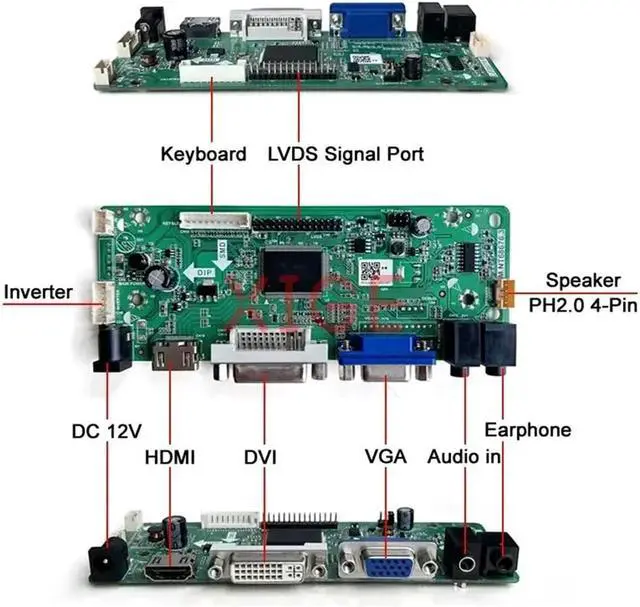

Controller board description:

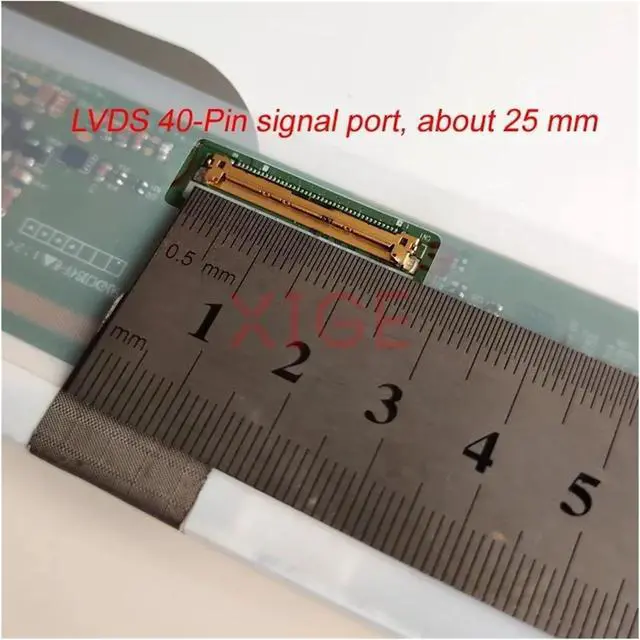

This controller board only suitable for LVDS 40-pin display screen.
Controller board input power supply: DC 12V 3A (DC Port: 2.5MM and 5.5MM inner+ outside-)
Please note: Do not use power adapters with voltages exceeding 12 volts. This will damage the control board.
Input: HDMI-compatible, DVI, VGA, Audio
Audio output: Earphone, PH2.0 4-pin speaker port (requires self purchase of speaker)
OSD Language: Chinese, English, Spanish, French, German, Italian, etc
Board size: 139mm*58mm
When the correct signal source input is not detected, The controller board will automatically enter standby mode. The keypad cannot respond, and the indicator light will change from green to red after about 10 seconds. Please connect the correct signal source.

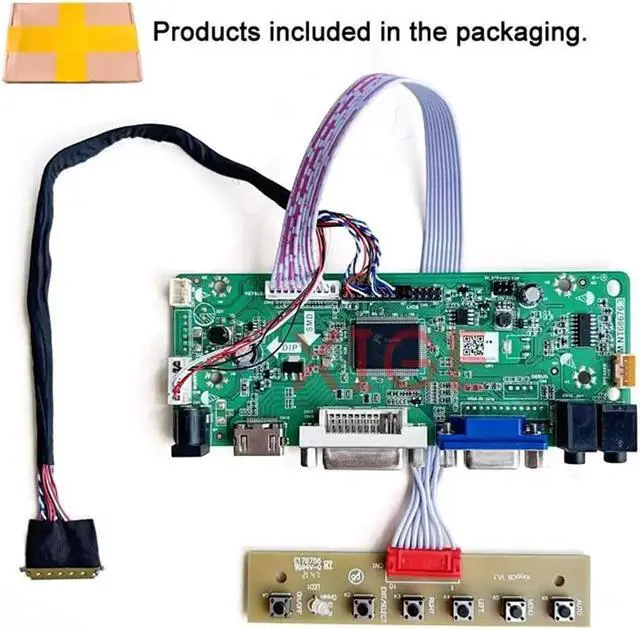

Packaging List:
1Pcs x Controller motherboard
1Pcs x LVDS 40-Pin signal cable
1Pcs x Keyboard with cable

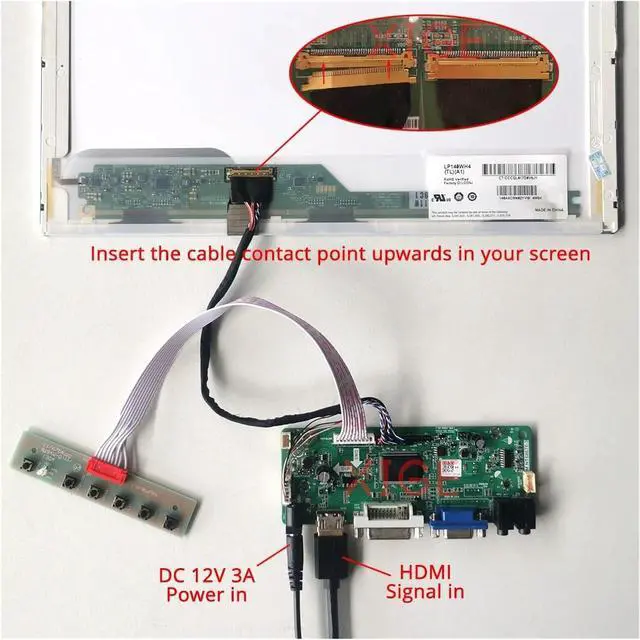

Installation connection:
Please unplug the original screen cable first, use the screen cable we sent, and insert the plug contacts upwards into your screen port. (Be careful not to mistake the direction of the plug)
Use HDMI cable to connect the controller board, and connect the other end to the laptop's HDMI port input signal source. (It is not recommended to use an integrated converter as it may not be able to transmit signals)
Use DC 12V 3A (DC Port: 2.5MM and 5.5MM inner+outer -) standard power adapter to input power.
Please note: Do not use power adapters with voltages exceeding 12 volts. This will damage the control board.
Before powering on, check that all connections are correct and take insulation measures to avoid short circuits.
Please refer to the photo below for OSD menu language settings. (If the OSD menu is different, please contact us)
==========
Battery Included : no
Model Number : 68676_40P
Supported Signal Port : LVDS 40-Pin
Supported Resolution : 1600x900
Professional home appliance accessories solutions: refrigerators, washing machines, microwave ovens, ovens, air conditioners, dishwashers, vacuum cleaners,TV, Computers, laptopswine cabinets and other home appliance accessories, more than 1,000 models are accurately adapted to different models. Make home appliance maintenance more efficient and convenient!
1, Please ensure that your screen can still power on and display normally. If your screen is damaged, please do not place an order as the controller board cannot repair or drive the damaged screen. You can connect the screen to the original monitor for testing. Or use a screen tester for testing.
2, We will install driver firmware for free based on your screen parameters so that the controller board can function properly. So, please select the model from the list that is exactly the same as your screen (including the model suffix). If your screen model is not on our sales list. Please send us photo of the model label and signal port on the back of the screen first to help you confirm (do not place an order blindly to avoid unnecessary disputes). As shown in the reference photo below:
Controller board description:
This controller board only suitable for LVDS 40-pin display screen.
Controller board input power supply: DC 12V 3A (DC Port: 2.5MM and 5.5MM inner+ outside-)
Please note: Do not use power adapters with voltages exceeding 12 volts. This will damage the control board.
Input: HDMI-compatible, DVI, VGA, Audio
Audio output: Earphone, PH2.0 4-pin speaker port (requires self purchase of speaker)
OSD Language: Chinese, English, Spanish, French, German, Italian, etc
Board size: 139mm*58mm
When the correct signal source input is not detected, The controller board will automatically enter standby mode. The keypad cannot respond, and the indicator light will change from green to red after about 10 seconds. Please connect the correct signal source.
Packaging List:
1Pcs x Controller motherboard
1Pcs x LVDS 40-Pin signal cable
1Pcs x Keyboard with cable
Installation connection:
Please unplug the original screen cable first, use the screen cable we sent, and insert the plug contacts upwards into your screen port. (Be careful not to mistake the direction of the plug)
Use HDMI cable to connect the controller board, and connect the other end to the laptop's HDMI port input signal source. (It is not recommended to use an integrated converter as it may not be able to transmit signals)
Use DC 12V 3A (DC Port: 2.5MM and 5.5MM inner+outer -) standard power adapter to input power.
Please note: Do not use power adapters with voltages exceeding 12 volts. This will damage the control board.
Before powering on, check that all connections are correct and take insulation measures to avoid short circuits.
Please refer to the photo below for OSD menu language settings. (If the OSD menu is different, please contact us)
==========
Battery Included : no
Model Number : 68676_40P
Supported Signal Port : LVDS 40-Pin
Supported Resolution : 1600x900
Professional home appliance accessories solutions: refrigerators, washing machines, microwave ovens, ovens, air conditioners, dishwashers, vacuum cleaners,TV, Computers, laptopswine cabinets and other home appliance accessories, more than 1,000 models are accurately adapted to different models. Make home appliance maintenance more efficient and convenient!
