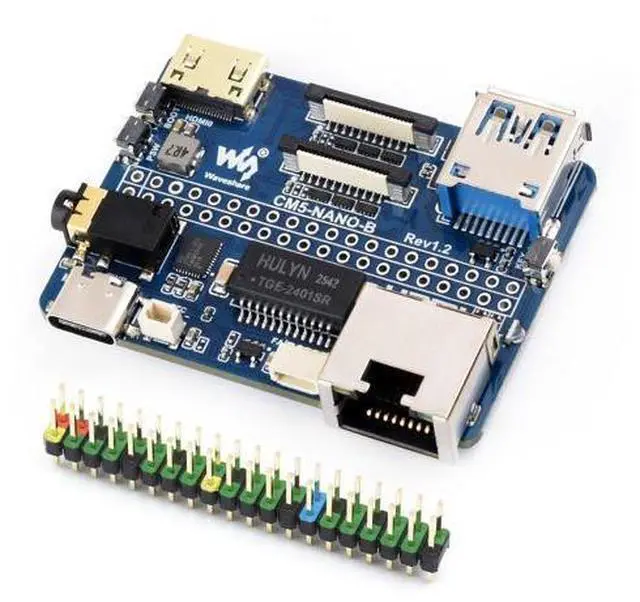

Main image of Nano Base Board (B), Compatible with Raspberry Pi Compute Module 5, Same Size As The CM5, Base Board for Compute Module 5 Lite/eMMC

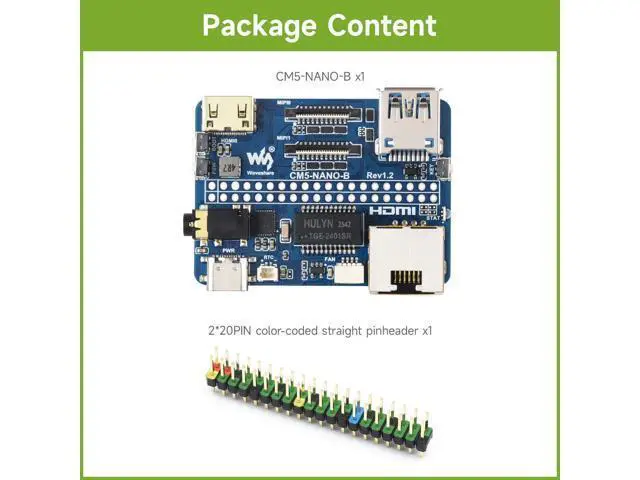

Alt view image 2 of 5 - Nano Base Board (B), Compatible with Raspberry Pi Compute Module 5, Same Size As The CM5, Base Board for Compute Module 5 Lite/eMMC

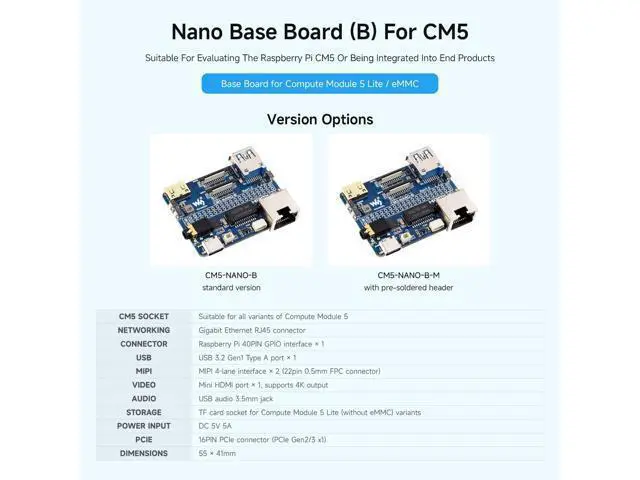

Alt view image 3 of 5 - Nano Base Board (B), Compatible with Raspberry Pi Compute Module 5, Same Size As The CM5, Base Board for Compute Module 5 Lite/eMMC

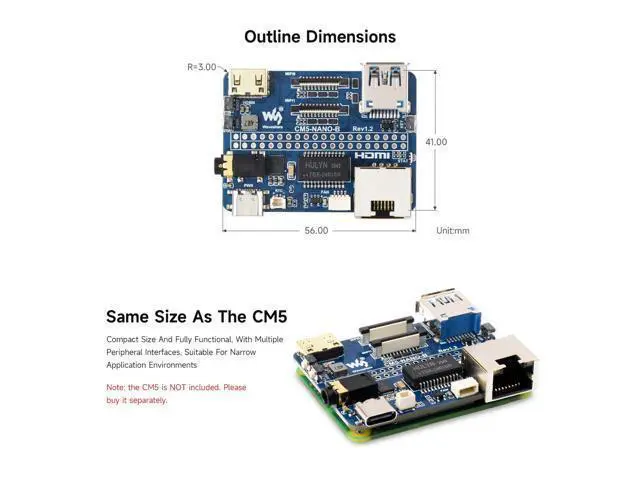

Alt view image 4 of 5 - Nano Base Board (B), Compatible with Raspberry Pi Compute Module 5, Same Size As The CM5, Base Board for Compute Module 5 Lite/eMMC

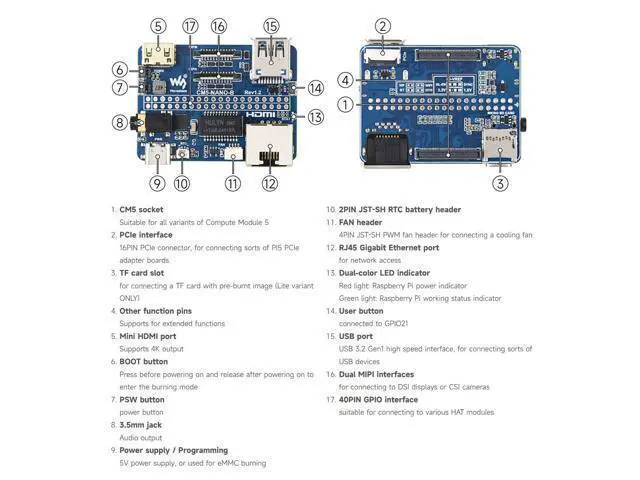

Alt view image 5 of 5 - Nano Base Board (B), Compatible with Raspberry Pi Compute Module 5, Same Size As The CM5, Base Board for Compute Module 5 Lite/eMMC

Shop All AIAMX Products | Visit PeakCircuit Technology Store

Nano Base Board (B), Compatible with Raspberry Pi Compute Module 5, Same Size As The CM5, Base Board for Compute Module 5 Lite/eMMC

Be the first to review this product...

Compatibility: Features a CM5 socket compatible with all variants of the Compute Module 5.; Networking and USB Ports: Includes a Gigabit Ethernet RJ45 connector and a USB 3.2 Gen1 Type A port × 1.; Display and Audio: Supports video output via a Mini HDMI port (4K output) and includes a USB audio 3.5mm jack for audio.; Storage and Expansion: Offers a TF card socket for Compute Module 5 Lite variants (without eMMC) and a 16-pin PCIe connector (PCIe Gen2/3 x1).; Power and Dimensions: Powered by a DC 5V 5A input, with compact dimensions of 55 × 41mm.; Rich WiKi Resources: We provide official Wiki resources, please visit our store and click the wiki page to get resources.

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Compatibility: Features a CM5 socket compatible with all variants of the Compute Module 5.; Networking and
USB Ports: Includes a Gigabit Ethernet RJ45 connector and a USB 3.2 Gen1 Type A port × 1.;
Display and Audio: Supports video output via a Mini HDMI port (4K output) and includes a USB audio 3.5 mm jack for audio.;
Storage and Expansion: Offers a TF card socket for Compute Module 5 Lite variants (without eMMC) and a 16-pin PCIe connector (PCIe Gen2/3 x1).;
Power and Dimensions: Powered by a DC 5V 5A input, with compact dimensions of 55 × 41mm.;
Rich WiKi Resources: We provide official Wiki resources, please visit our store and click the wiki page to get resources.

Additional Information
First Listed on Newegg	July 09, 2026
