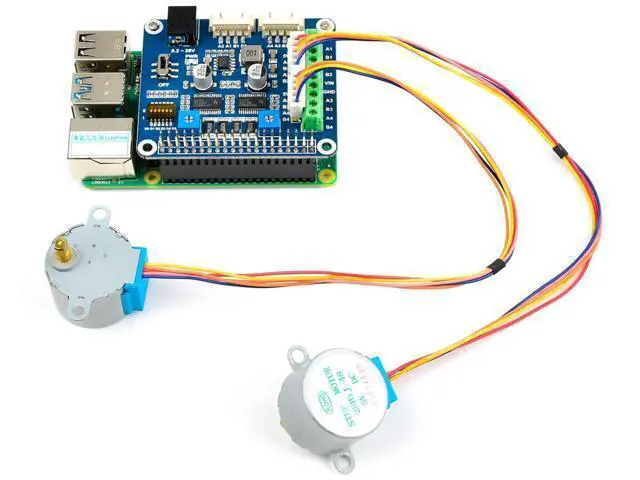

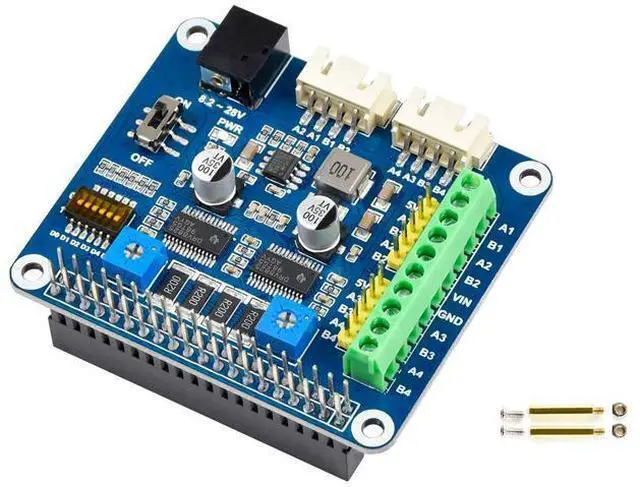

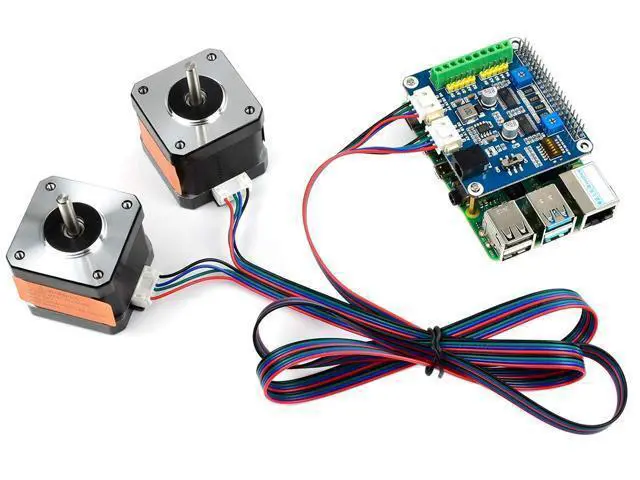

Stepper Motor HAT for Raspberry Pi 4B/3B+/2B/B+/Zero/W/WH/and Jetson Nano,DRV8825 Motor Controller Drives Two Stepper Motors, Up to 1/32 Microstepping,Use for 3D Printer,Sculpturing Machine etc
- Standard Raspberry Pi 40PIN GPIO extension header, Supports Raspberry Pi series boards and Jetson Nano; Onboard dual DRV8825 motor controller IC with built-in microstepping indexer, drives two stepper motors, easy to use.Drives Two Stepper Motors, Up to 1/32 Microstepping; 6 available microstepping modes, configured with the DIP switches: full-step, half-step, 1/4-step, 1/8-step, 1/16-step, and 1/32-step. Adjustable motor drive current via potentiometer, maximum 2.5A current output.; Protection features: Overcurrent Protection (OCP), Thermal Shutdown (TSD), VM Undervoltage Lockout (UVLO). Integrates 5V regulator, allows providing power to Raspberry Pi. Onboard multi connector options for stepper motors in different specifications.; Motor drive voltage: 8.2V~28V. Motor drive current: 2.5A. Logic voltage: 3.3V.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

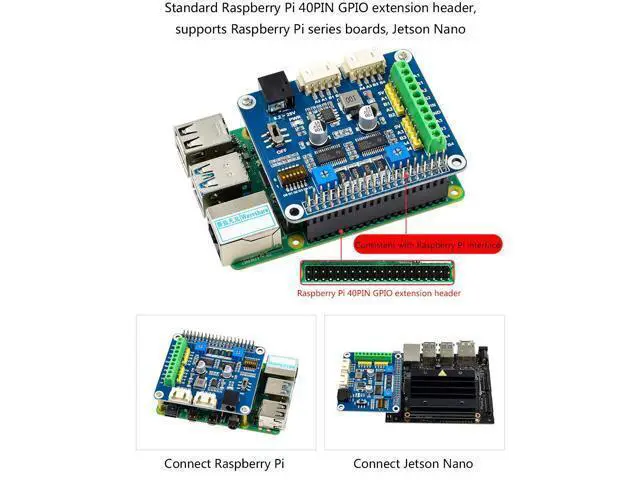

Standard Raspberry Pi 40PIN GPIO extension header, Supports Raspberry Pi series boards and Jetson Nano; Onboard dual DRV8825 motor controller IC with built-in microstepping indexer, drives two stepper motors, easy to use. Drives Two Stepper Motors, Up to 1/32 Microstepping; 6 available microstepping modes, configured with the
DIP switches: full-step, half-step, 1/4-step, 1/8-step, 1/16-step, and 1/32-step. Adjustable motor drive current via potentiometer, maximum 2.5A current output.;
Protection features: Overcurrent Protection (OCP), Thermal Shutdown (TSD), VM Undervoltage Lockout (UVLO). Integrates 5V regulator, allows providing power to Raspberry Pi. Onboard multi connector options for stepper motors in different specifications.;
Motor drive voltage: 8.2V ~28V.
Motor drive current: 2.5A.
Logic voltage: 3.3V.
DIP switches: full-step, half-step, 1/4-step, 1/8-step, 1/16-step, and 1/32-step. Adjustable motor drive current via potentiometer, maximum 2.5A current output.;
Protection features: Overcurrent Protection (OCP), Thermal Shutdown (TSD), VM Undervoltage Lockout (UVLO). Integrates 5V regulator, allows providing power to Raspberry Pi. Onboard multi connector options for stepper motors in different specifications.;
Motor drive voltage: 8.2V ~28V.
Motor drive current: 2.5A.
Logic voltage: 3.3V.
