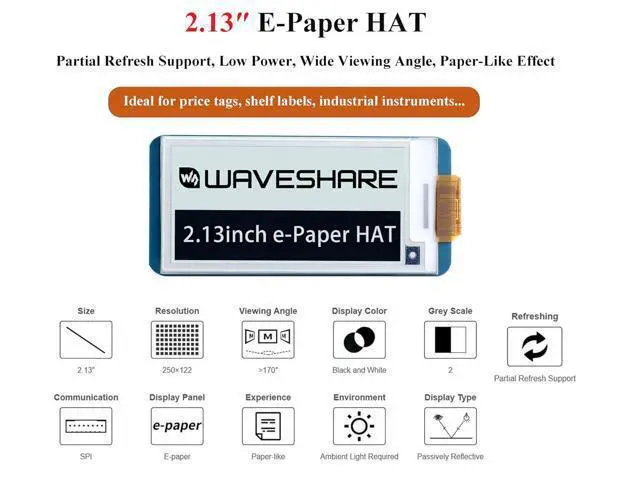

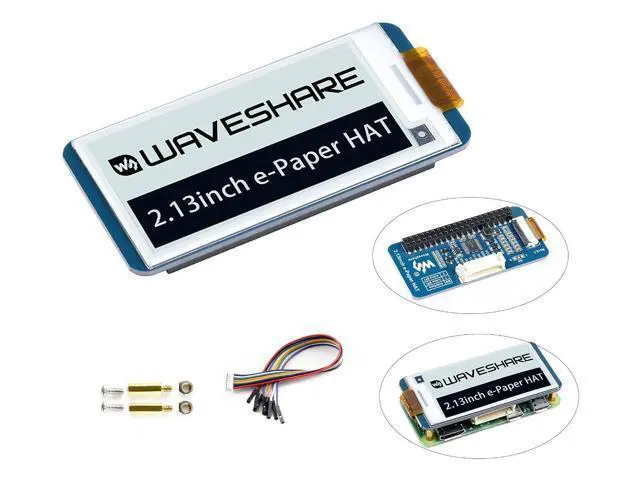

2.13inch E-Ink Display HAT V4 250x122 Pixel E-Paper for Raspberry Pi 5/4B/3B+/3B/2B/Zero W/WH/Zero 2 W/Jetson Nano SPI Interface, Black/White Two Display Colors, Support Partial Refresh
- This is 2.13inch E-Ink Display HAT with RPi 40PIN GPIO extension header, compatible with Raspberry Pi series boards (includes RPi 5/4B/3B+/3B/2B/Zero W/WH/Zero 2 W,etc. ) and compatible with Jetson Nano.; 250x122 resolution, Black and White Two Display colors, with embedded controller, communicating via SPI interface, supports partial refresh. SPI interface, for connecting with controller boards like Ardui/STM32, etc. Onboard voltage translator, compatible with 3.3V / 5V MCUs.; No backlight, keeps displaying last content for a long time even when power down. Ultra low power consumption, basically power is only required for refreshing.; IMPORTANT Version Notice: The driver board is Rev2.1 (Version 2.1), which is independent of the screen version. Currently, there is only Rev2.1 (Version 2.1) for the driver board and QC label V4 is for the screen version, QC label V4 is currently being shipped.; Comes with online development resources and manual (driver board circuit diagram, examples ): bit.ly/3hZh77i
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

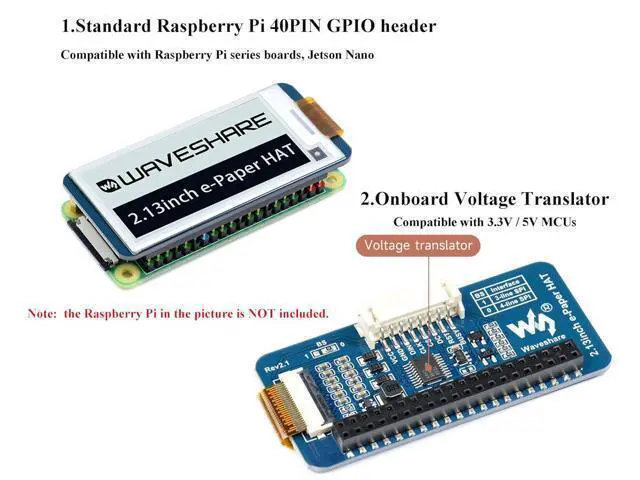

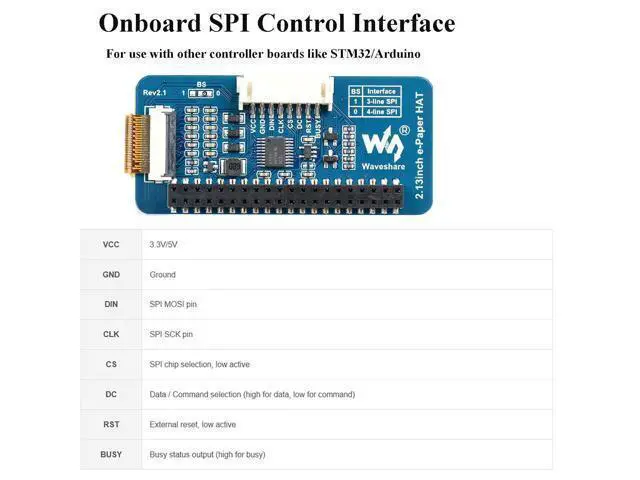

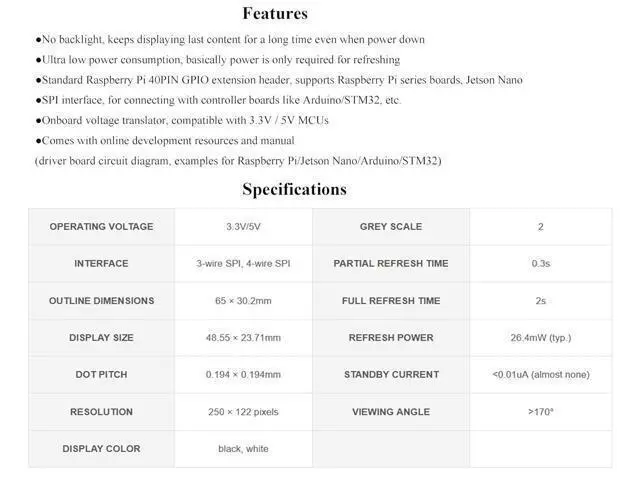

This is 2.13 inch E-Ink Display HAT with RPi 40PIN GPIO extension header, compatible with Raspberry Pi series boards (includes RPi 5/4B/3B+/3B/2B/Zero W/WH/Zero 2 W, etc. ) and compatible with Jetson Nano.; 250x122 resolution, Black and White Two Display colors, with embedded controller, communicating via SPI interface, supports partial refresh. SPI interface, for connecting with controller boards like Ardui/STM32, etc. Onboard voltage translator, compatible with 3.3V / 5V MCUs.; No backlight, keeps displaying last content for a long time even when power down.
Ultra low power consumption, basically power is only required for refreshing.;
IMPORTANT Version Notice: The driver board is Rev 2.1 (Version 2.1 ), which is independent of the screen version. Currently, there is only Rev 2.1 (Version 2.1 ) for the driver board and QC label V4 is for the screen version, QC label V4 is currently being shipped.; Comes with online development resources and manual (driver board circuit diagram, examples ): bit. ly/3hZh77i
Ultra low power consumption, basically power is only required for refreshing.;
IMPORTANT Version Notice: The driver board is Rev 2.1 (Version 2.1 ), which is independent of the screen version. Currently, there is only Rev 2.1 (Version 2.1 ) for the driver board and QC label V4 is for the screen version, QC label V4 is currently being shipped.; Comes with online development resources and manual (driver board circuit diagram, examples ): bit. ly/3hZh77i
