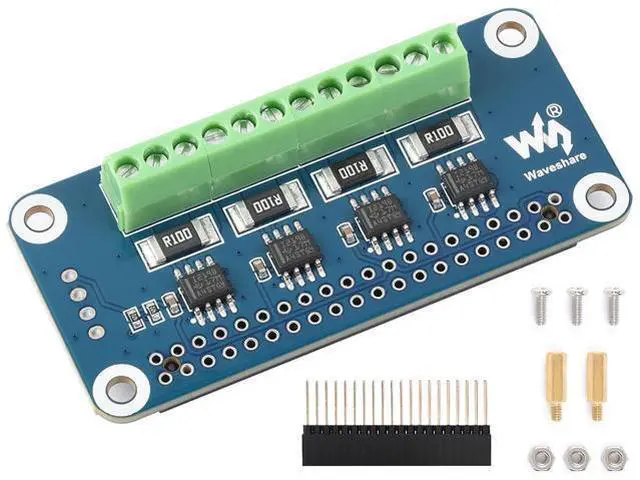

4-CH Current/Voltage/Power Monitor HAT for Raspberry Pi 4B/3B+/3B/2B/B+/A+/Zero/W, I2C/SMBus Interface Onboard 0.1 1 Sampling Resistor Measure Bi-Directional Current up to 3.2A Embed 12-bit ADC
- This is a 4-ch current and power monitor HAT designed for Raspberry Pi,Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards,4-ch monitoring, via I2C/SMBus interface.; Onboard 0.1 1 sampling resistor, allows measuring bi-directional current up to 3.2A. Embedded 12-bit ADC, supports multiple successive converting, 0~26V voltage measuring range; Directly calculate and output measured power value through additional multiply register.I2C control pins for connecting with other host boards; Operating voltage: 3.3V/5V. Control interface: I2C/SMBus. Sampling resistor: 0.1 1%. Voltage range: 0~26V.; Current range: ±3.2A Resolution: 0.8mA (±3.2A range) OR 0.1mA (±400mA range) Dimensions: 65mm × 30mm Mounting hole size: 3.0mm
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

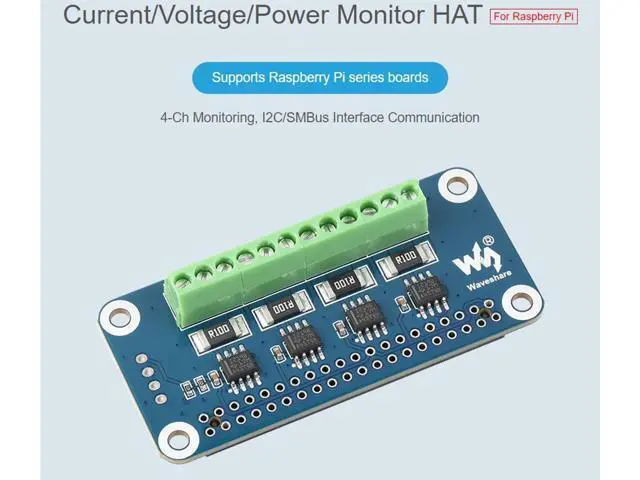

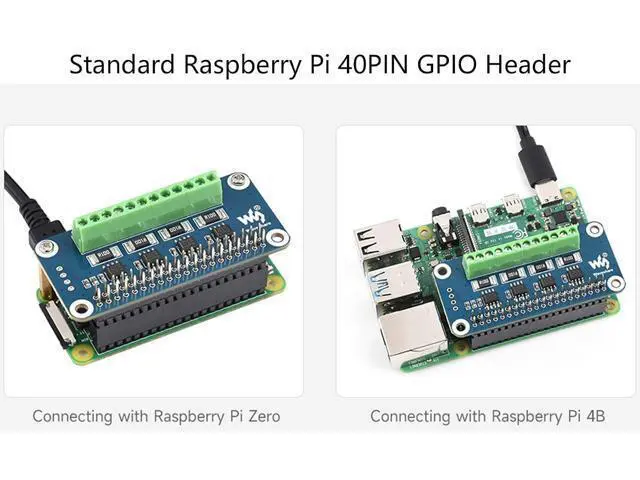

This is a 4-ch current and power monitor HAT designed for Raspberry Pi, Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, 4-ch monitoring, via I2C/SMBus interface.; Onboard 0.1 1 sampling resistor, allows measuring bi-directional current up to 3.2A. Embedded 12-bit ADC, supports multiple successive converting, 0~26V voltage measuring range; Directly calculate and output measured power value through additional multiply register. I2C control pins for connecting with other host boards;

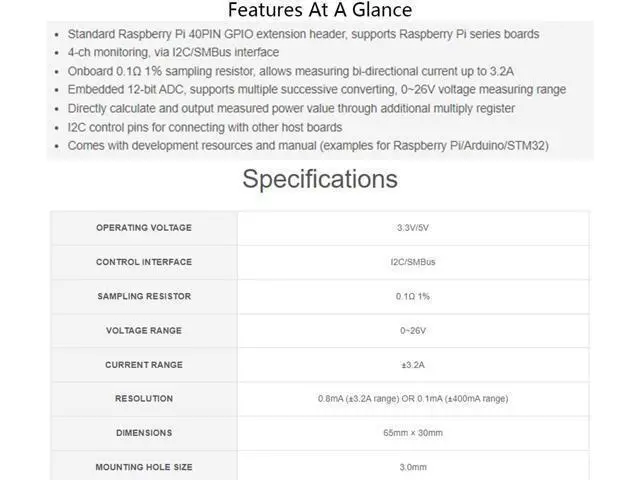

Operating voltage: 3.3V /5V.
Control interface: I2C/SMBus.
Sampling resistor: 0.1 1%.
Voltage range: 0~26V.;
Current range: ± 3.2A
Resolution: 0.8 mA (± 3.2A range) OR 0.1 mA (±400mA range)

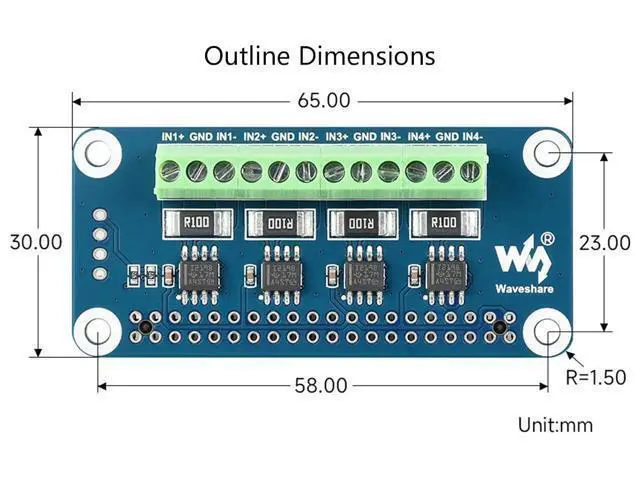

Dimensions: 65mm × 30mm
Mounting hole size: 3.0 mm
Operating voltage: 3.3V /5V.
Control interface: I2C/SMBus.
Sampling resistor: 0.1 1%.
Voltage range: 0~26V.;
Current range: ± 3.2A
Resolution: 0.8 mA (± 3.2A range) OR 0.1 mA (±400mA range)
Dimensions: 65mm × 30mm
Mounting hole size: 3.0 mm
