$67.99
Ships from China.
Sold by PeakCircuit Technology
Shipped by PeakCircuit Technology
Meet Your Seller

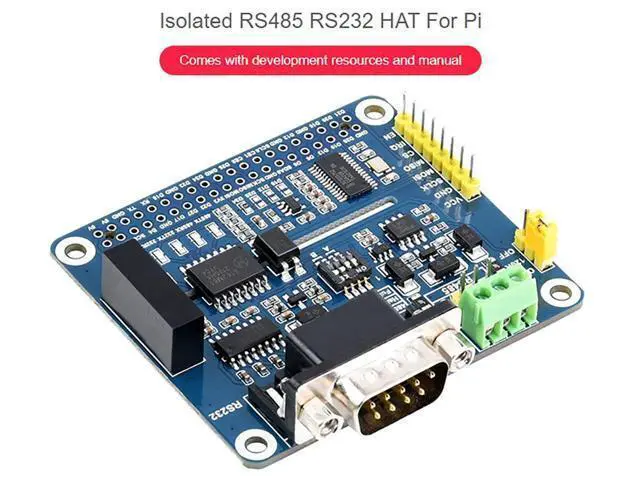

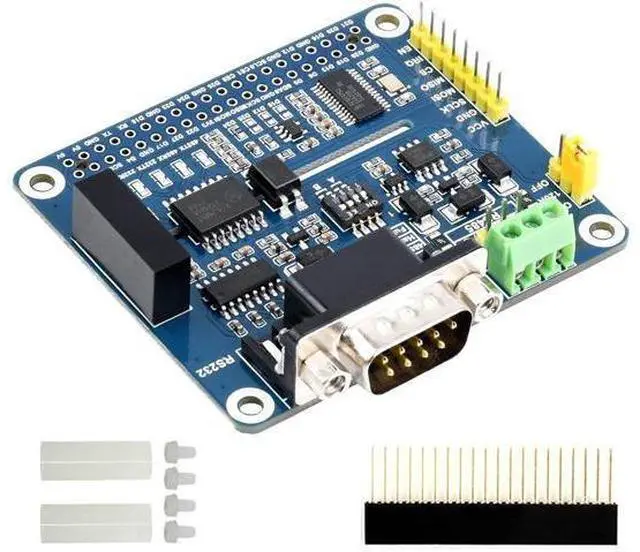

Isolated RS485 RS232 Expansion HAT Board for Raspberry Pi 4B/3B+/3B/2B/Zero/Zero 2 W/Zero 2 WH,Adopt SC16IS752 UART Expansion Chip,SPI to RS485 and RS232 Up to 921600bps Data Rate

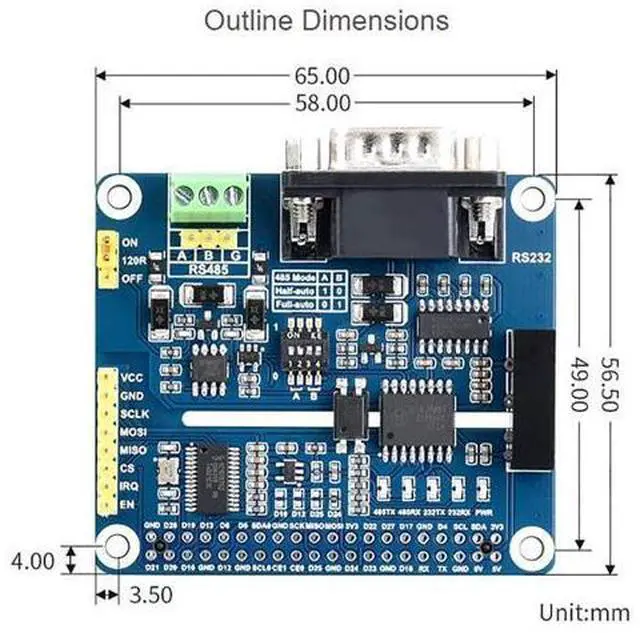

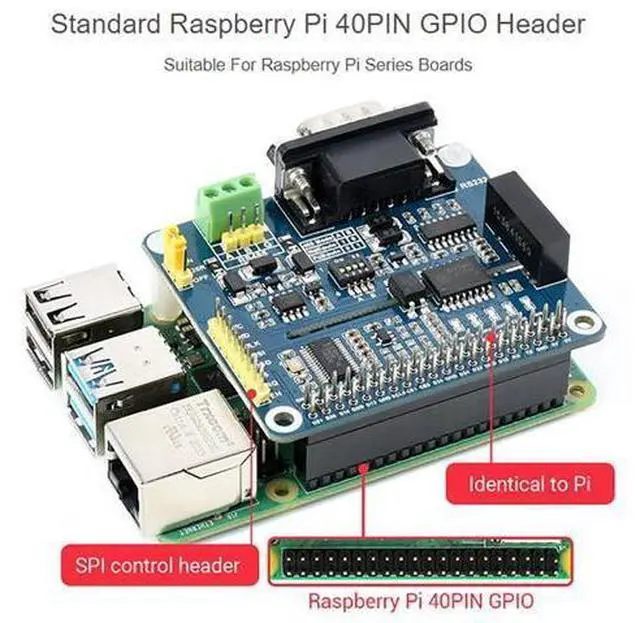

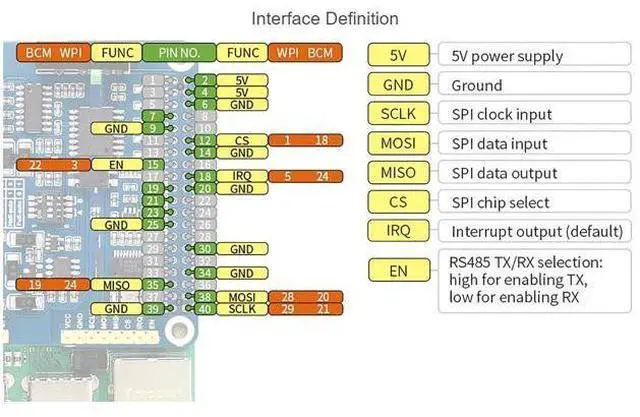

- Isolated RS485 RS232 Expansion HAT for Raspberry Pi (4B/3B+/3B/2B/Zero/Zero 2 W/Zero 2 WH). Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards.; Using SC16IS752 and SP3485, SP3232 multi-chip combination scheme, can realize SPI to RS485, RS232, the communication rate is up to 921600bps. Support RS485 and RS232. RS232: full-duplex communication, SP3232 transceiver. RS485: semi/full-automatic communication, SP3485 transceiver.; Overcurrent/Overvoltage proof, High Stability. Onboard TVS (transient voltage suppression tube), which can effectively suppress the surge voltage and transient peak voltage in the circuit, and protect against lightning and static electricity. Onboard power supply and serial port transceiver indicators, easy to check the module power supply and communication status.; Lead out the SPI control interface for easy access to main control boards such as Arduino. Provide complete supporting information manuals (C and python sample programs and user manuals, etc.); Operating Voltage 3.3/5V. Dimension 65mm×56.5mm .
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

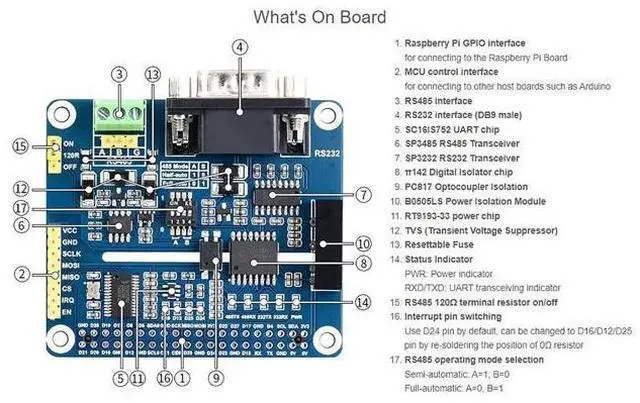

Isolated RS485 RS232 Expansion HAT for Raspberry Pi (4B/3B+/3B/2B/Zero/Zero 2 W/Zero 2 WH). Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards.; Using SC16IS752 and SP3485, SP3232 multi-chip combination scheme, can realize SPI to RS485, RS232, the communication rate is up to 921600bps. Support RS485 and RS232.

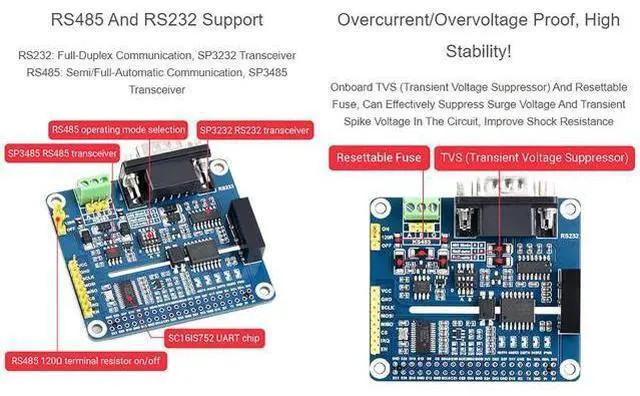

RS232: full-duplex communication, SP3232 transceiver.
RS485: semi/full-automatic communication, SP3485 transceiver.; Overcurrent/Overvoltage proof, High Stability. Onboard TVS (transient voltage suppression tube), which can effectively suppress the surge voltage and transient peak voltage in the circuit, and protect against lightning and static electricity. Onboard power supply and serial port transceiver indicators, easy to check the module power supply and communication status.; Lead out the SPI control interface for easy access to main control boards such as Arduino. Provide complete supporting information manuals (C and python sample programs and user manuals, etc. ); Operating Voltage 3.3 /5V. Dimension 65mm× 56.5 mm.
RS232: full-duplex communication, SP3232 transceiver.
RS485: semi/full-automatic communication, SP3485 transceiver.; Overcurrent/Overvoltage proof, High Stability. Onboard TVS (transient voltage suppression tube), which can effectively suppress the surge voltage and transient peak voltage in the circuit, and protect against lightning and static electricity. Onboard power supply and serial port transceiver indicators, easy to check the module power supply and communication status.; Lead out the SPI control interface for easy access to main control boards such as Arduino. Provide complete supporting information manuals (C and python sample programs and user manuals, etc. ); Operating Voltage 3.3 /5V. Dimension 65mm× 56.5 mm.
